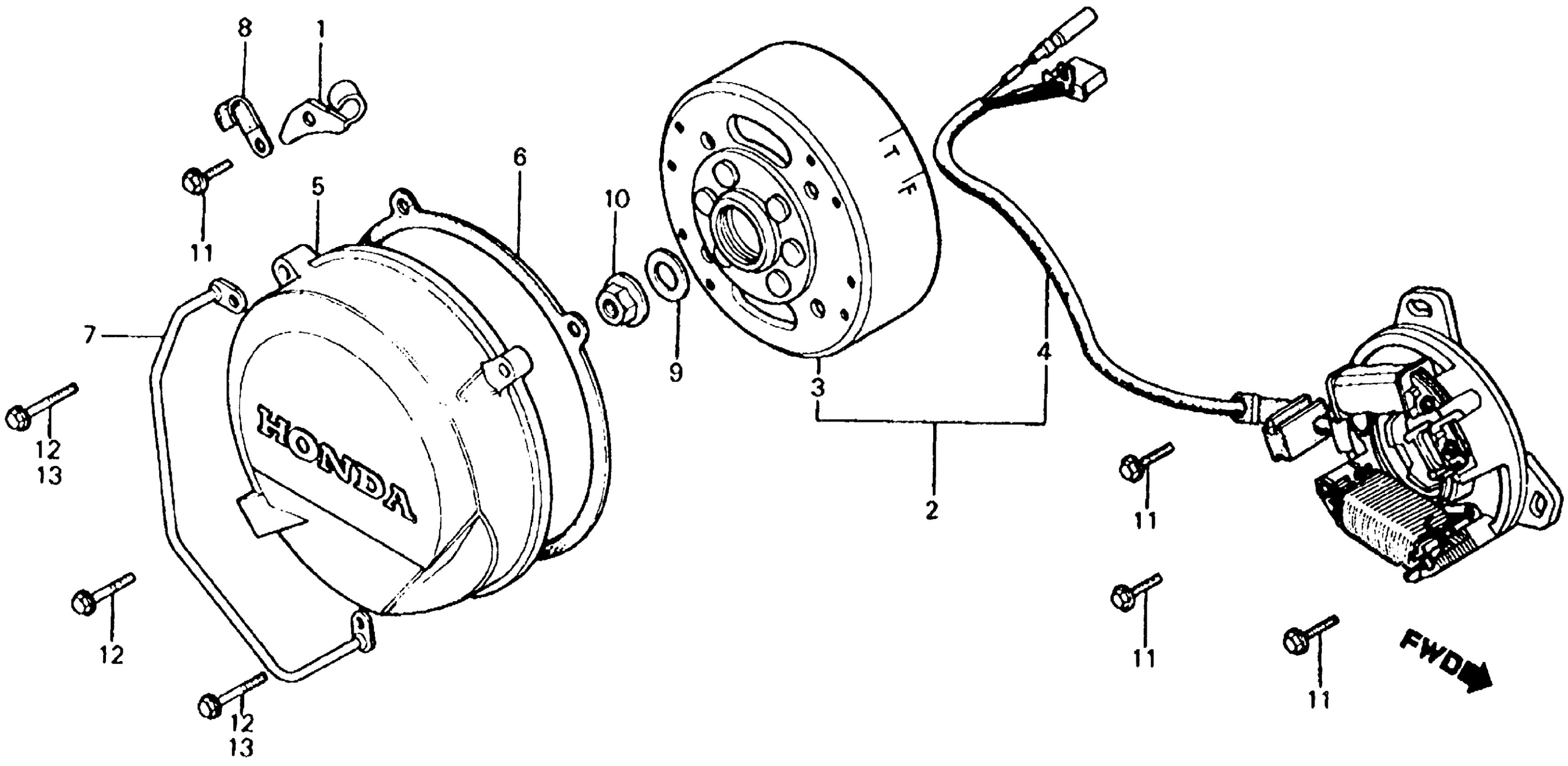

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 ALTERNATOR Diagram

#

Description
Price

1

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22861-430-000

Unavailable

2

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-964-004

Unavailable

3

ROTOR (NOT AVAILABLE)

31110-964-004

Unavailable

4

STATOR (NOT AVAILABLE)

31120-964-004

Unavailable

5

COVER, ALTERNATOR (NOT AVAILABLE)

31122-964-000

Unavailable

6

GASKET This part replaces 31123-961-000.

31123-961-306

Unavailable

8

CLAMP, CABLE

32111-323-000

$3.71

9

WASHER, PLAIN (12MM)

90437-611-000

$3.92

10

NUT, FLANGE (12MM)

94050-12000

$0.94

11

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.48

11

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

12

BOLT, FLANGE (6X25)

96000-06025-00

$1.91

12

BOLT, FLANGE (6X25)

96001-06025-00

$1.91
