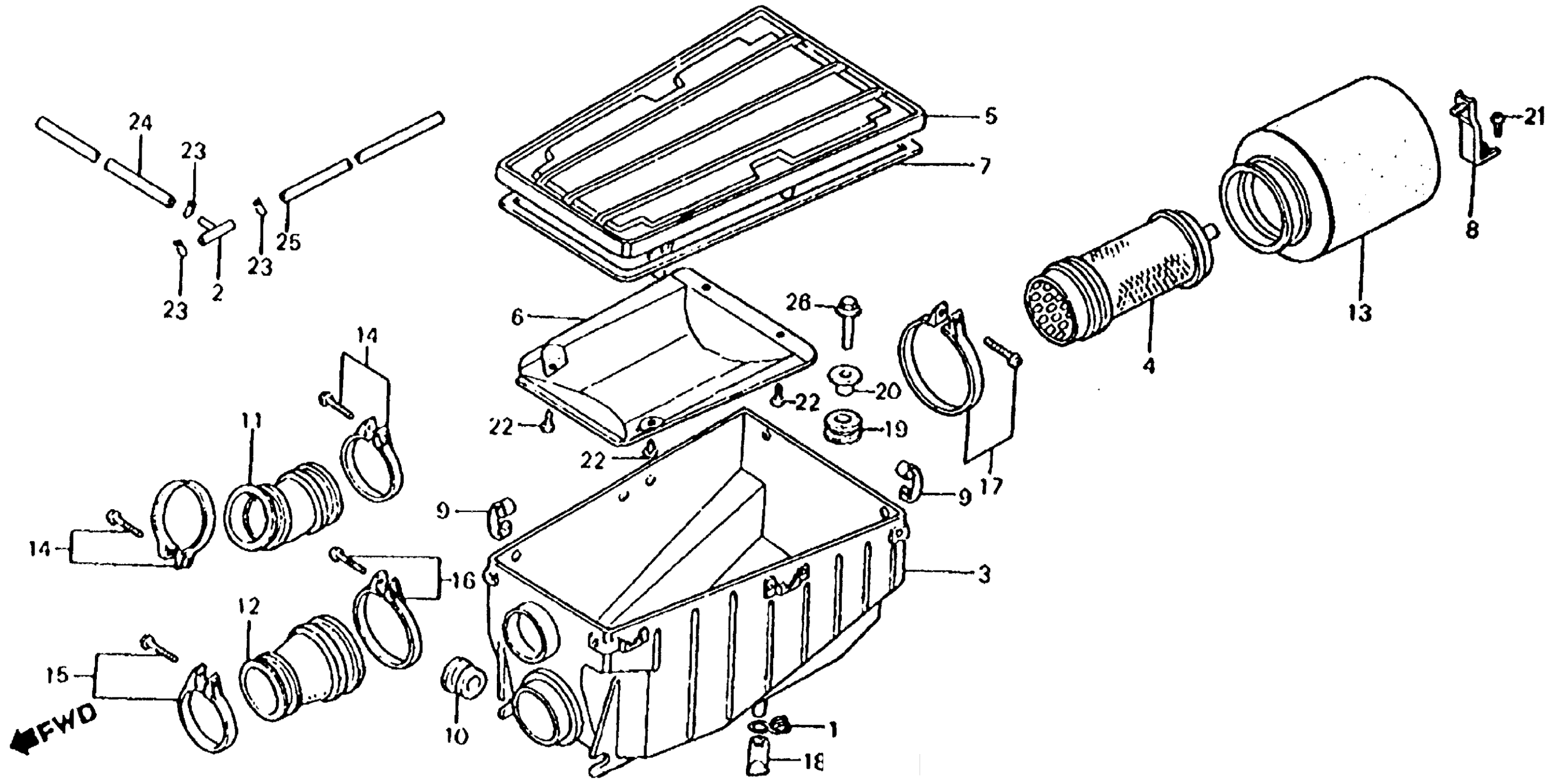

Honda ATC250RA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-EC300003 TO JH3TB060-EC312489 AIR CLEANER 83-84 Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.64

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.64

2

JOINT, FUEL

16235-657-000

Unavailable

3

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-964-000

Unavailable

4

BODY, AIR CLEANER (NOT AVAILABLE)

17211-964-003

Unavailable

5

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17217-964-000

Unavailable

6

GUIDE, AIR CLEANER

17218-964-000

Unavailable

7

SEAL, AIR CLEANER COVER (NOT AVAILABLE)

17219-964-000

Unavailable

8

STAY, A/CLNR ELEM This part replaces 17221-964-000.

17221-964-405

Unavailable

9

SPRING, AIR CLEANER LID (NOT AVAILABLE)

17222-964-010

Unavailable

10

RUBBER, AIR CLEANER MOUNTING (NOT AVAILABLE)

17223-964-000

Unavailable

11

TUBE, AIR CLEANER IN. (NOT AVAILABLE)

17252-964-000

Unavailable

12

TUBE, CONNECTOR (NOT AVAILABLE)

17253-964-000

Unavailable

13

ELEMENT, AIR CLEANER

17254-964-003

$21.57

14

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$5.81

15

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17256-466-000.

95018-64250

$13.07

15

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17257-MA0-000.

95018-64250

$13.07

15

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 90652-GHB-750.

95018-64250

$13.07

15

BAND, AIR CLEANER CONNECTING TUBE (64)

95018-64250

$13.07

16

BAND, CONNECTING TUBE (NOT AVAILABLE)

17256-964-000

Unavailable

17

BAND, AIR CLEANER

17257-HB5-000

$12.58

17

BAND, AIR CLEANER This part replaces 17257-360-700.

17257-HB5-000

$12.58

18

TUBE, DRAIN

17358-964-000

Unavailable

19

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.42

20

COLLAR, FENDER SETTING

61104-444-000

$7.09

21

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.00

21

SCREW, PAN (6X8)

93500-06008-0A

$1.00

21

SCREW, PAN (6X8)

93500-06008-0H

$1.00

21

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.00

22

SCREW, TAPPING (4X8)

93903-34120

$0.75

23

CLIP, TUBE (C6.5)

95002-35000

$0.68

24

BULK HOSE, VINYL (6X9X1000) (6X9X250)

95003-14001-10M

$3.08

25

BULK HOSE, VINYL (6X9X1000) (6X9X300)

95003-14001-10M

$3.08

26

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

26

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
