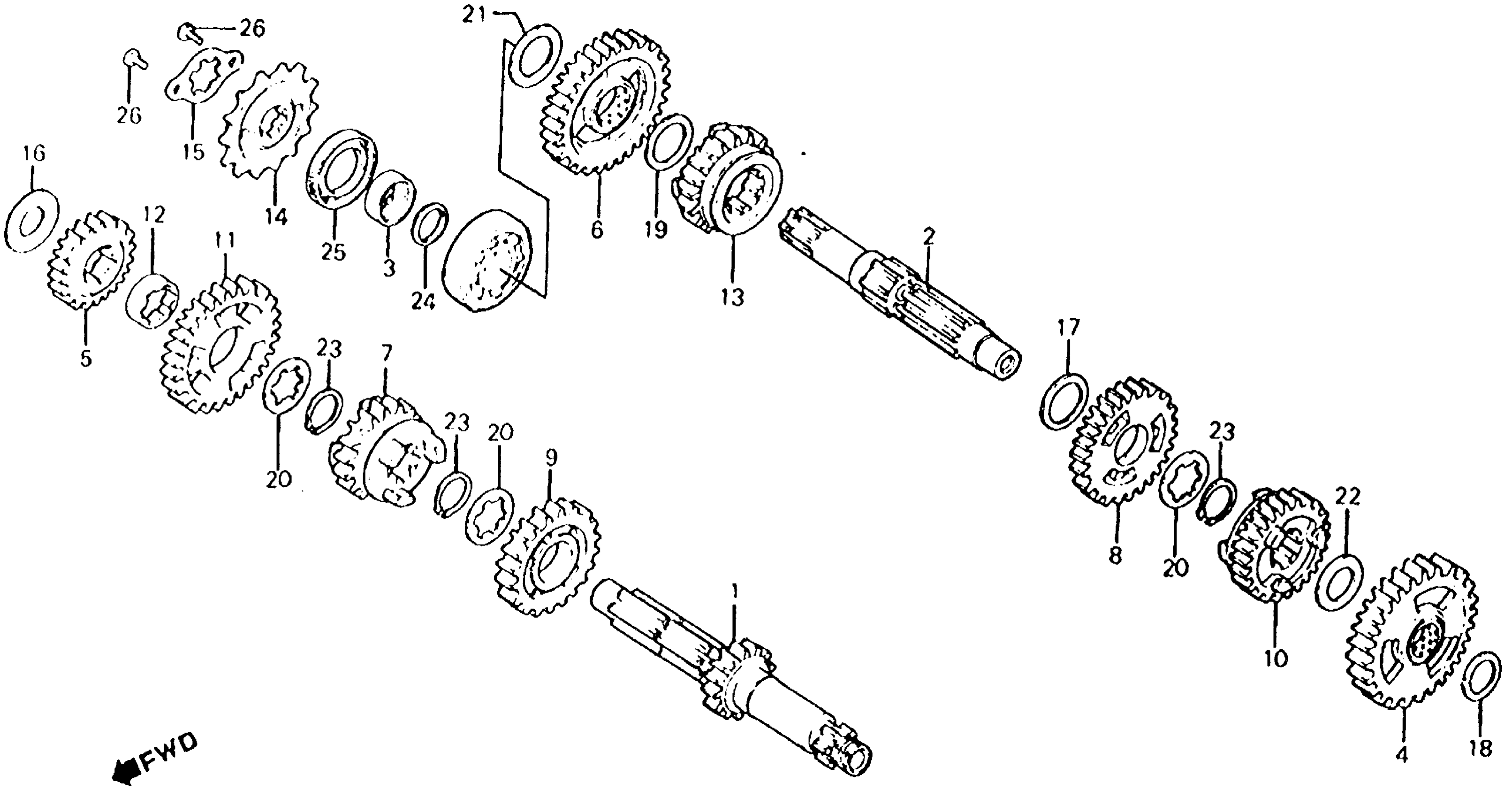

Honda ATC250RA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-DC200030 TO JH3TB060-DC214814 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (20T)

23210-961-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-961-000

Unavailable

3

COLLAR, COUNTERSHAFT (22MM)

23225-430-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23410-467-010

Unavailable

5

GEAR, MAINSHAFT SECOND (22T) (NOT AVAILABLE)

23421-430-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (35T) (NOT AVAILABLE)

23430-430-010

Unavailable

7

GEAR, MAINSHAFT THIRD (25T) (NOT AVAILABLE)

23441-961-010

Unavailable

8

GEAR, COUNTERSHAFT THIRD (31T) (NOT AVAILABLE)

23451-961-010

Unavailable

9

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23461-961-010

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (28T) (NOT AVAILABLE)

23471-961-010

Unavailable

11

GEAR, MAINSHAFT FIFTH (31T) (NOT AVAILABLE)

23481-961-010

Unavailable

12

COLLAR, SPLINE (25MM) (NOT AVAILABLE)

23482-430-000

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (26T) (NOT AVAILABLE)

23491-961-010

Unavailable

14

SPROCKET, DRIVE (13T)

23803-964-000

Unavailable

15

PLATE, FIXING

23811-HA5-670

$4.96

15

PLATE, FIXING This part replaces 23811-430-000.

23811-HA5-670

$4.96

16

WASHER, THRUST (20X31.5)

90443-430-000

$7.22

17

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

18

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

19

WASHER, THRUST (25.2X34)

90446-430-000

Unavailable

20

WASHER, SPLINE (25MM)

90463-430-000

$5.89

21

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

21

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

22

WASHER, THRUST (20MM)

90454-428-000

$2.53

22

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

23

CIRCLIP, OUTER (25MM)

90602-259-010

$6.16

24

O-RING (22X1.5)

91201-430-003

$2.94

25

OIL SEAL (28X40X8) (NOK)

91207-ML3-003

$14.08

25

OIL SEAL (28X40X8) (NOK) This part replaces 91207-ML3-004.

91207-ML3-003

$14.08

25

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-003.

91207-ML3-003

$14.08

25

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-005.

91207-ML3-003

$14.08

26

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

26

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
