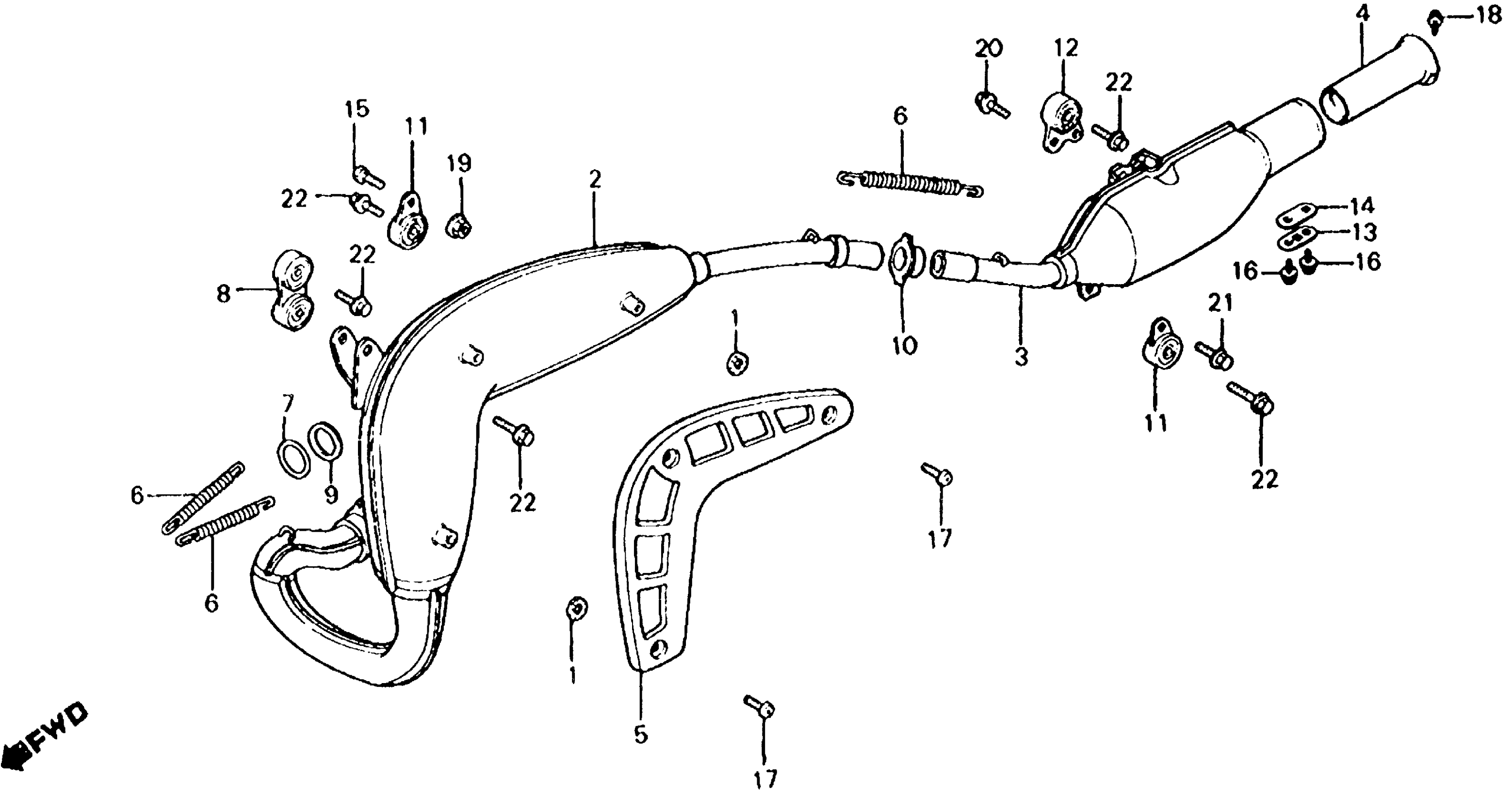

Honda ATC250RA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-DC200030 TO JH3TB060-DC214814 MUFFLER 83-84 Diagram

#

Description
Price

1

GASKET, PROTECTOR

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

2

MUFFLER, EX. (NOT AVAILABLE)

18300-964-003

Unavailable

3

SUB-MUFFLER

18310-964-003

Unavailable

4

PIPE, TAIL (NOT AVAILABLE)

18311-964-003

Unavailable

5

PROTECTOR, MUFFLER

18319-964-000

Unavailable

6

SPRING, EX. PIPE

18332-430-700

$13.02

7

GASKET, EX. PIPE This part replaces 18352-961-000.

18352-961-010

Unavailable

7

GASKET, EX. PIPE

18352-961-010

Unavailable

8

STAY ASSY., CHAMBER (NOT AVAILABLE)

18355-430-000

Unavailable

9

RING, EX.

18358-961-003

Unavailable

10

SEAL, MUFFLER (NOT AVAILABLE)

18359-430-000

Unavailable

11

STAY ASSY., MUFFLER

18359-961-000

$41.94

12

STAY ASSY., EX. MUFFLER

18359-964-000

Unavailable

13

LID, MUFFLER

18373-429-010

$9.15

14

GASKET, MUFFLER LID

18374-MN1-880

$4.21

14

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

15

BOLT, HEX. (8X50) This part replaces 92000-08050.

92101-08050-0A

$1.97

15

BOLT, HEX. (8X50) This part replaces 92000-08050-0A.

92101-08050-0A

$1.97

15

BOLT, HEX. (8X50) This part replaces 92100-08050-0A.

92101-08050-0A

$1.97

15

BOLT, HEX. (8X50)

92101-08050-0A

$1.97

16

BOLT-WASHER (6X12)

93401-06012-07

$1.62

16

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

16

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

17

SCREW, PAN (6X8)

93500-06008-0G

Unavailable

18

SCREW-WASHER (6X12)

93891-06012-07

$1.49

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

21

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

22

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

22

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
