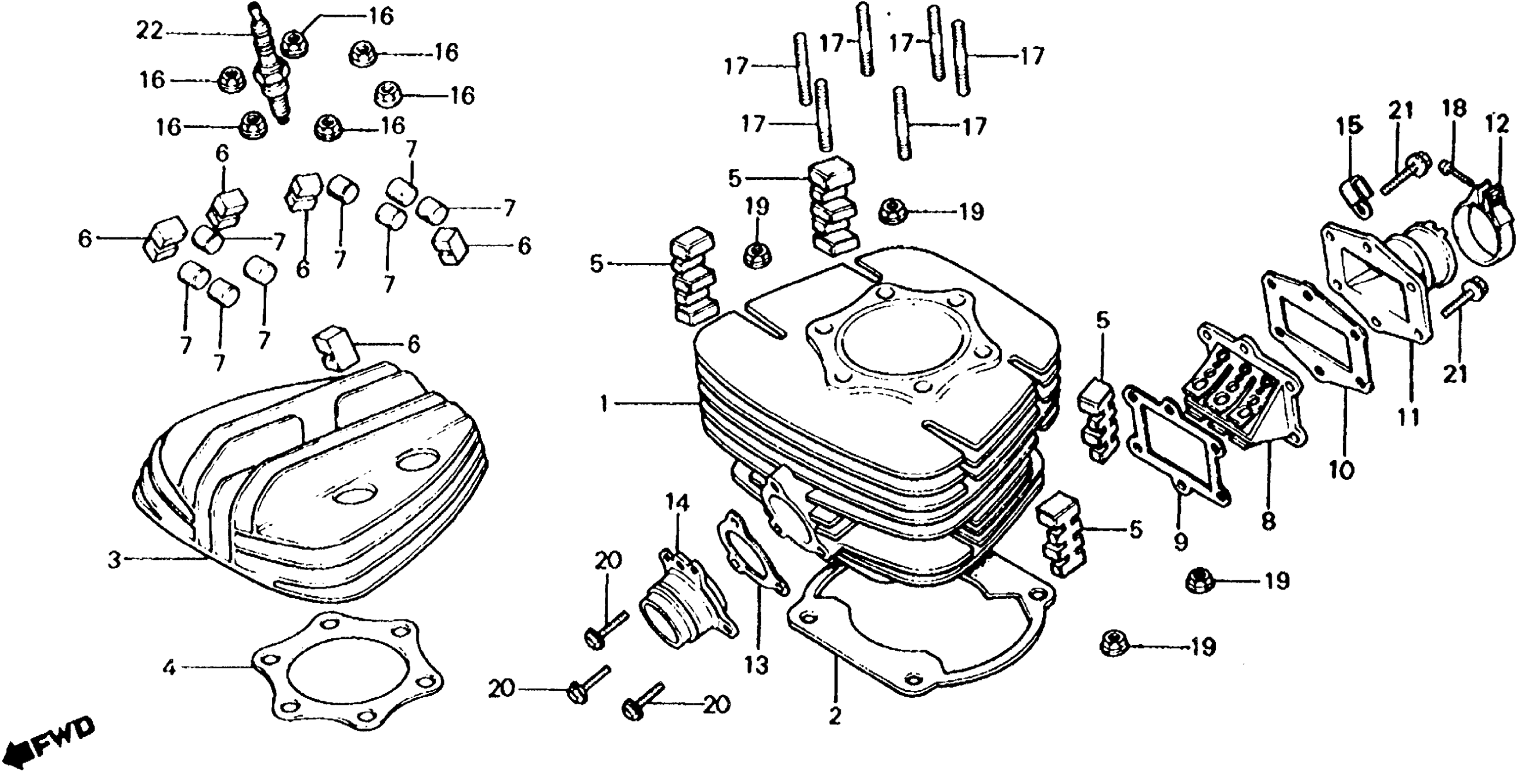

Honda ATC250RA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-DC200030 TO JH3TB060-DC214814 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-964-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-961-000.

12191-961-306

$6.41

2

GASKET, CYLINDER

12191-961-306

$6.41

3

CYLINDER HEAD (NOT AVAILABLE)

12200-964-000

Unavailable

4

GASKET, CYLINDER HEAD

12254-961-010

$29.25

5

RUBBER B, INSERT

12296-961-000

Unavailable

6

RUBBER, INSERT (NOT AVAILABLE)

12297-961-000

Unavailable

7

RUBBER, INSERT

12298-961-000

Unavailable

8

VALVE ASSY., REED (NOT AVAILABLE)

14100-961-003

Unavailable

9

GASKET A, REED VALVE

14132-KAE-000

$4.06

9

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$4.06

10

GASKET B, REED VALVE This part replaces 14133-430-000.

14133-430-306

$7.64

10

GASKET B, REED VALVE

14133-430-306

$7.64

11

INSULATOR, CARBURETOR (NOT AVAILABLE)

16210-964-000

Unavailable

12

BAND, INSULATOR (NOT AVAILABLE)

16223-444-000

Unavailable

13

GASKET, EX. FLANGE This part replaces 18291-961-000.

18291-961-306

Unavailable

13

GASKET, EX. FLANGE

18291-961-306

Unavailable

14

JOINT, EX. PIPE (NOT AVAILABLE)

18351-961-000

Unavailable

15

CLAMP, CABLE

32111-323-000

$3.98

16

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

16

NUT, FLANGE (8MM)

94050-08000

$1.49

17

BOLT, STUD (8X45) This part replaces 92700-08065-3E.

92900-08045-3E

$2.16

17

BOLT, STUD (8X45)

92900-08045-3E

$2.16

18

SCREW, PAN (5X25)

93500-05025-0A

$1.49

19

NUT, FLANGE (10MM)

94050-10000

$1.59

20

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

20

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

21

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

21

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

22

SPARK PLUG (BR8ES) (NGK)

98079-58846

$2.62

22

SPARK PLUG (QN3) (CHAMPION) (NOT AVAILABLE)

98079-58867

Unavailable

22

SPARK PLUG (BR8ES) (NGK) This part replaces 98079-58816.

98079-58846

$2.62

22

SPARK PLUG (BR8ES) (NGK) This part replaces 98079-58864.

98079-58846

$2.62

22

SPARK PLUG (BR8ES) (NGK) This part replaces 98079-58868.

98079-58846

$2.62

22

SPARK PLUG (BR9ES) (NGK) | (Optional). This part replaces 98079-59767.

98079-59847

$2.44

22

SPARK PLUG (BR9ES) (NGK) | (Optional). This part replaces 98079-59816.

98079-59847

$2.44

22

SPARK PLUG (BR9ES) (NGK) | (Optional). This part replaces 98079-59847-01.

98079-59847

$2.44

22

SPARK PLUG (BR9ES) (NGK) | (Optional). This part replaces 98079-59864.

98079-59847

$2.44

22

SPARK PLUG (BR9ES) (NGK) | (Optional). This part replaces 98079-59864-00.

98079-59847

$2.44

22

SPARK PLUG (BR9ES) (NGK) | (Optional).

98079-59847

$2.44
