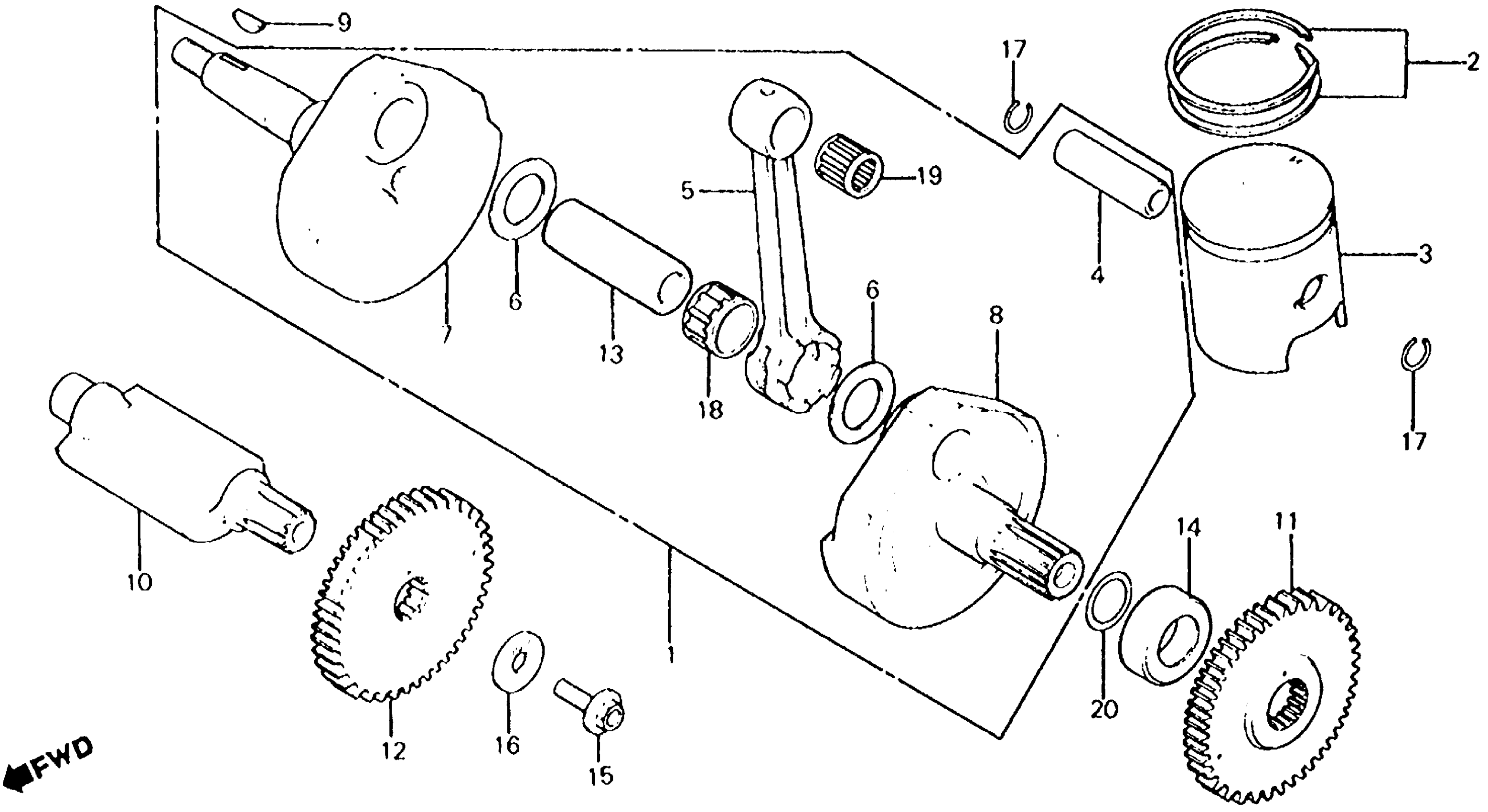

Honda ATC250RA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-DC200030 TO JH3TB060-DC214814 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-961-000

Unavailable

2

RING SET, PISTON

131A2-961-003

Unavailable

2

RING SET, PISTON This part replaces 131A2-961-005.

131A2-961-003

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

131B2-961-003

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

131C2-961-003

$38.05

2

RING SET, PISTON (OS 0.75) (NOT AVAILABLE) | (Optional).

131D2-961-003

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

131E2-961-003

$44.07

3

PISTON (STD) (NOT AVAILABLE)

13101-961-003

$111.25

3

PISTON (OS 0.25) | (Optional).

13102-961-003

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-961-003

Unavailable

3

PISTON (OS 0.75) (NOT AVAILABLE) | (Optional).

13104-961-003

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-961-003

Unavailable

4

PIN, PISTON This part replaces 13111-KA4-000.

13111-KSK-730

$19.78

4

PIN, PISTON This part replaces 13111-KZ3-000.

13111-KSK-730

$19.78

5

ROD, CONNECTING

13201-KA4-700

Unavailable

5

ROD, CONNECTING This part replaces 13201-430-300.

13201-KA4-700

Unavailable

6

WASHER, CONNECTING ROD SIDE

13202-357-300

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13311-961-300

Unavailable

8

CRANKSHAFT, L.

13321-961-300

Unavailable

9

KEY, SPECIAL WOODRUFF (25X14)

13331-360-000

$3.47

10

WEIGHT, BALANCER (NOT AVAILABLE)

13351-961-000

Unavailable

11

GEAR, BALANCER DRIVE (NOT AVAILABLE)

13355-961-000

Unavailable

12

GEAR, BALANCER DRIVE (NOT AVAILABLE)

13356-961-000

Unavailable

13

PIN A, CRANK

13381-430-300

Unavailable

13

PIN B, CRANK

13382-430-300

Unavailable

13

PIN C, CRANK (NOT AVAILABLE)

13383-430-300

Unavailable

14

COLLAR, DRIVE GEAR (NOT AVAILABLE)

13617-961-000

Unavailable

15

BOLT, SPECIAL (10X20) (NOT AVAILABLE)

90001-961-000

Unavailable

16

WASHER, SPRING (10MM)

90481-430-000

$6.19

17

CLIP, PISTON PIN (1.2X18)

90601-430-000

$3.28

18

BEARING 1, CONNECTING ROD LARGE END

91011-VM0-008

Unavailable

18

BEARING 1, CONNECTING ROD LARGE END This part replaces 91011-430-008.

91011-VM0-008

Unavailable

18

BEARING 2, CONNECTING ROD LARGE END

91012-VM0-008

Unavailable

18

BEARING 2, CONNECTING ROD LARGE END This part replaces 91012-430-008.

91012-VM0-008

Unavailable

18

BEARING 3, CONNECTING ROD LARGE END

91013-VM0-008

Unavailable

18

BEARING 3, CONNECTING ROD LARGE END This part replaces 91013-430-008.

91013-VM0-008

Unavailable

19

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-003.

91015-357-003

$28.53

19

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-004.

91015-357-003

$28.53

19

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91014-357-006.

91015-357-003

$28.53

19

BEARING 2, CONNECTING ROD SMALL END (TOYO)

91015-357-003

$28.53

19

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91015-357-004.

91015-357-003

$28.53

19

BEARING 2, CONNECTING ROD SMALL END (TOYO) This part replaces 91015-357-006.

91015-357-003

$28.53

20

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

20

O-RING (21.5X3.2)

91307-425-003

$2.59
