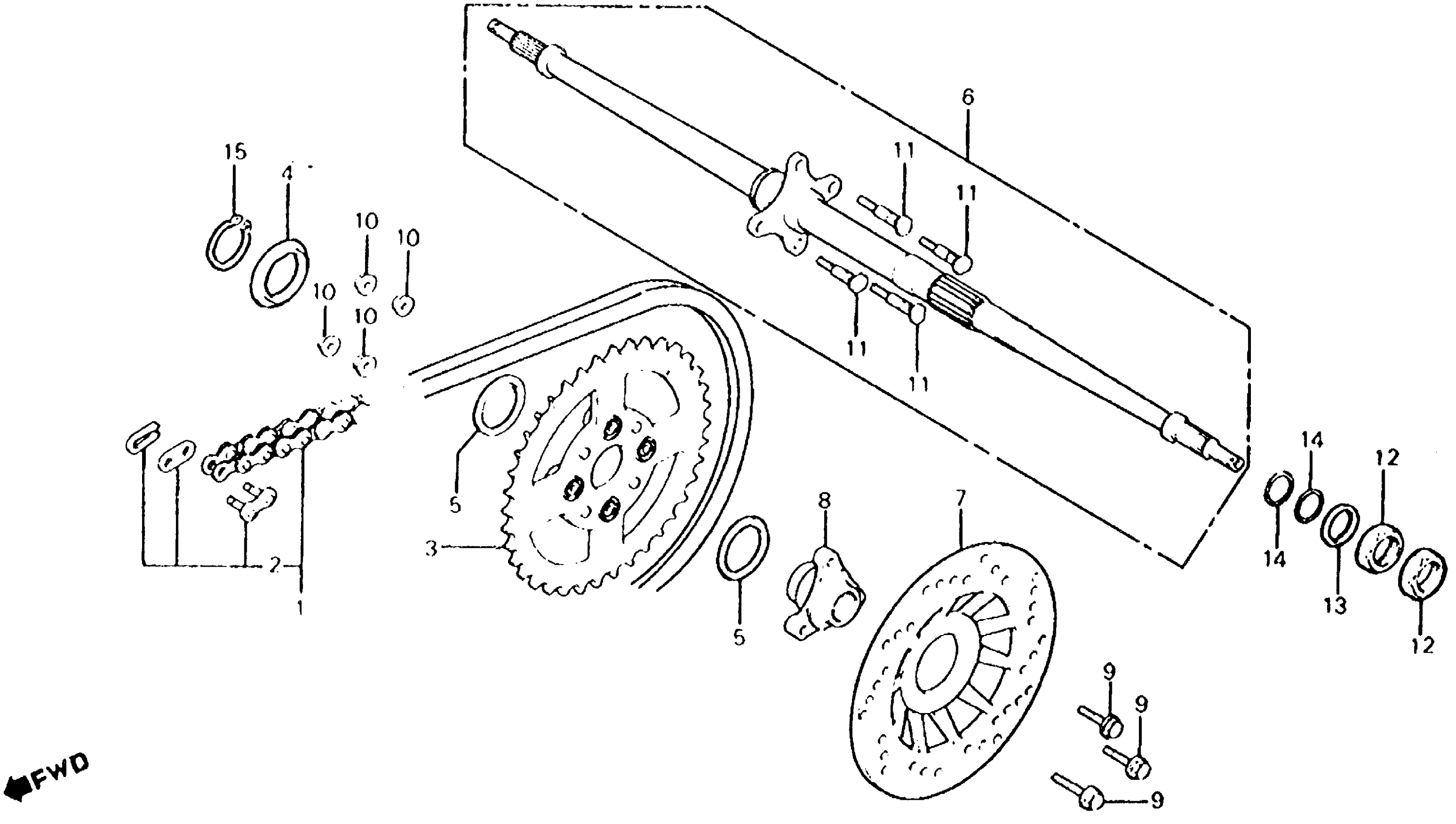

Honda ATC250RA (82) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-CC100001 TO JH3TB060-CC119528 REAR WHEEL AXLE + REAR BRAKE DISK 81-82 Diagram

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-961-013.

405W3-HB9-505

Unavailable

MASTER LINK (DAIDO)

40531-HB5-671

Unavailable

MASTER LINK (DAIDO) This part replaces 40531-958-671.

40531-HB5-671

Unavailable

MASTER LINK (DAIDO) This part replaces 40531-961-003.

40531-HB5-671

Unavailable

SPROCKET ASSY., FINAL DRIVEN (NOT AVAILABLE)

41200-961-000

Unavailable

RING, SPROCKET SIDE (NOT AVAILABLE)

41205-961-000

Unavailable

DUST SEAL, SPROCKET

41206-961-000

Unavailable

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-961-010

Unavailable

DISK, RR. BRAKE (NOT AVAILABLE)

43122-961-000

Unavailable

FLANGE, BRAKE DISK (NOT AVAILABLE)

43125-961-000

Unavailable

BOLT, UBS (8X18)

90112-HE0-000

Unavailable

BOLT, UBS (8X18) This part replaces 90112-961-000.

90112-HE0-000

Unavailable

NUT, SELF-LOCK (8MM)

90118-961-000

$5.42

BOLT, SPROCKET FIXING

90128-961-000

Unavailable

NUT, RR. AXLE

90307-961-000

Unavailable

WASHER, TAPER

90481-HC4-000

$7.70

WASHER, TAPER This part replaces 90481-958-000.

90481-HC4-000

$7.70

O-RING (32.5X1.8) (ARAI)

91316-PY4-003

$3.39

O-RING (32.5X1.8) This part replaces 91355-943-000.

91316-PY4-003

$3.39

CIRCLIP (OUTER) (42MM)

94511-42000

Unavailable
