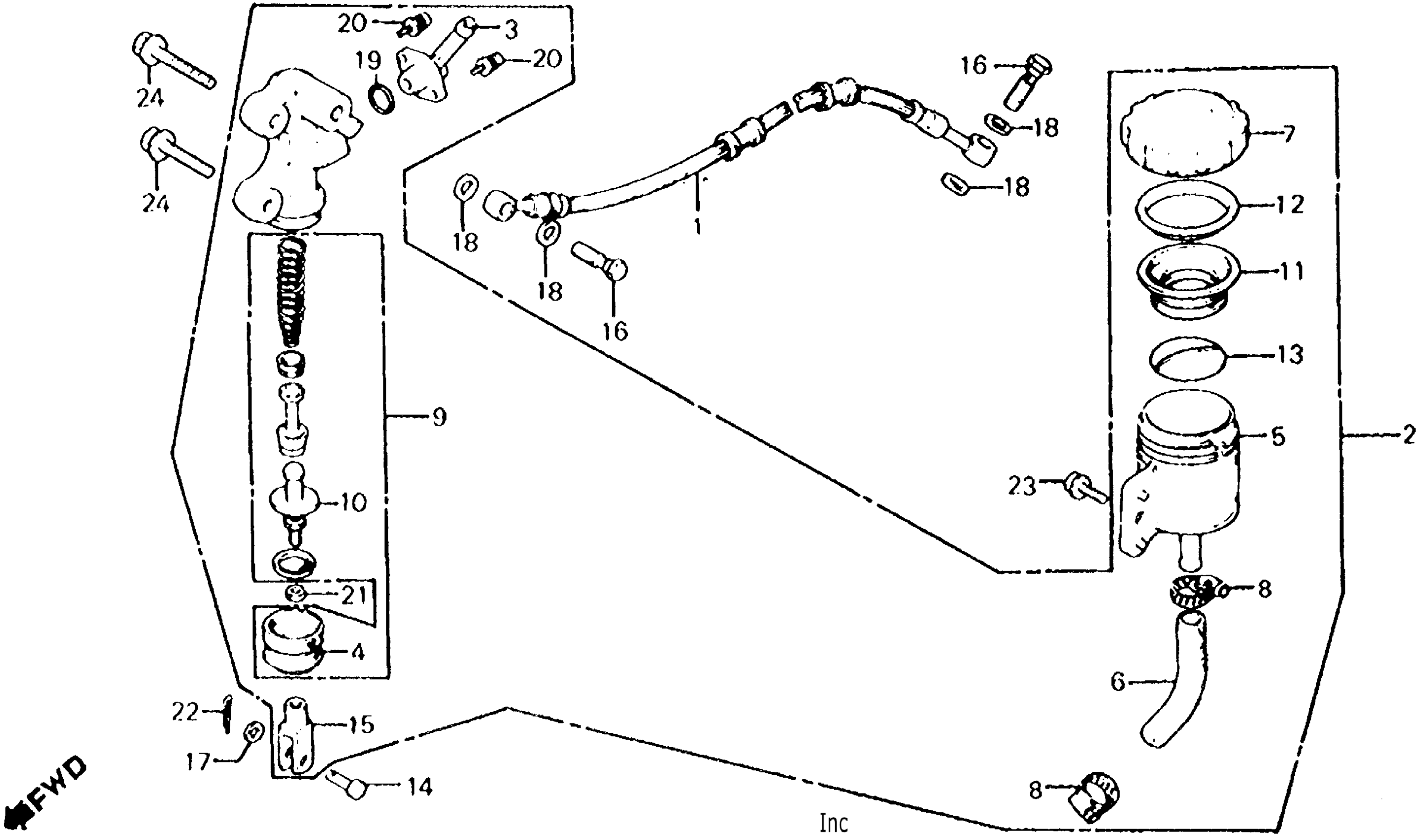

Honda ATC250RA (82) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-CC100001 TO JH3TB060-CC119528 REAR BRAKE MASTER CYLINDER 82 Diagram

#

Description
Price

1

HOSE ASSY., RR. BRAKE (NOT AVAILABLE) This part replaces 43310-961-003.

43310-961-013

Unavailable

1

HOSE ASSY., RR. BRAKE (NOT AVAILABLE)

43310-961-013

Unavailable

2

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE) This part replaces 43500-961-006.

43500-961-016

Unavailable

2

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE)

43500-961-016

Unavailable

3

CONNECTOR, MASTER CYLINDER

43503-422-006

Unavailable

4

BOOT, MASTER CYLINDER

43504-371-013

$9.54

5

CUP, MASTER CYLINDER OIL (NOT AVAILABLE)

43511-961-006

Unavailable

6

HOSE, MASTER CYLINDER OIL (NOT AVAILABLE) This part replaces 43512-961-006.

43512-961-016

Unavailable

6

HOSE, MASTER CYLINDER OIL (NOT AVAILABLE)

43512-961-016

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

9

PISTON SET, MASTER CYLINDER (NOT AVAILABLE)

43520-961-305

Unavailable

10

ROD, PUSH (NISSHIN) (NOT AVAILABLE)

43530-961-006

Unavailable

11

DIAPHRAGM

45520-300-000

$9.05

12

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

12

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

13

FLOAT, RESERVOIR (NOT AVAILABLE)

46161-505-620

Unavailable

14

PIN, BRAKE ROD

46503-371-000

Unavailable

15

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-445-771

Unavailable

16

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

16

BOLT, OIL

90145-300-010

$9.68

16

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

17

WASHER (7X12)

90501-310-000

$1.74

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

O-RING (14.8X2.4)

91212-422-006

$2.56

20

SCREW-WASHER (4X12)

93893-04012-00

$1.49

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

22

PIN, COTTER (1.6X25)

94201-16250

$1.49

23

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

23

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

24

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

24

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
