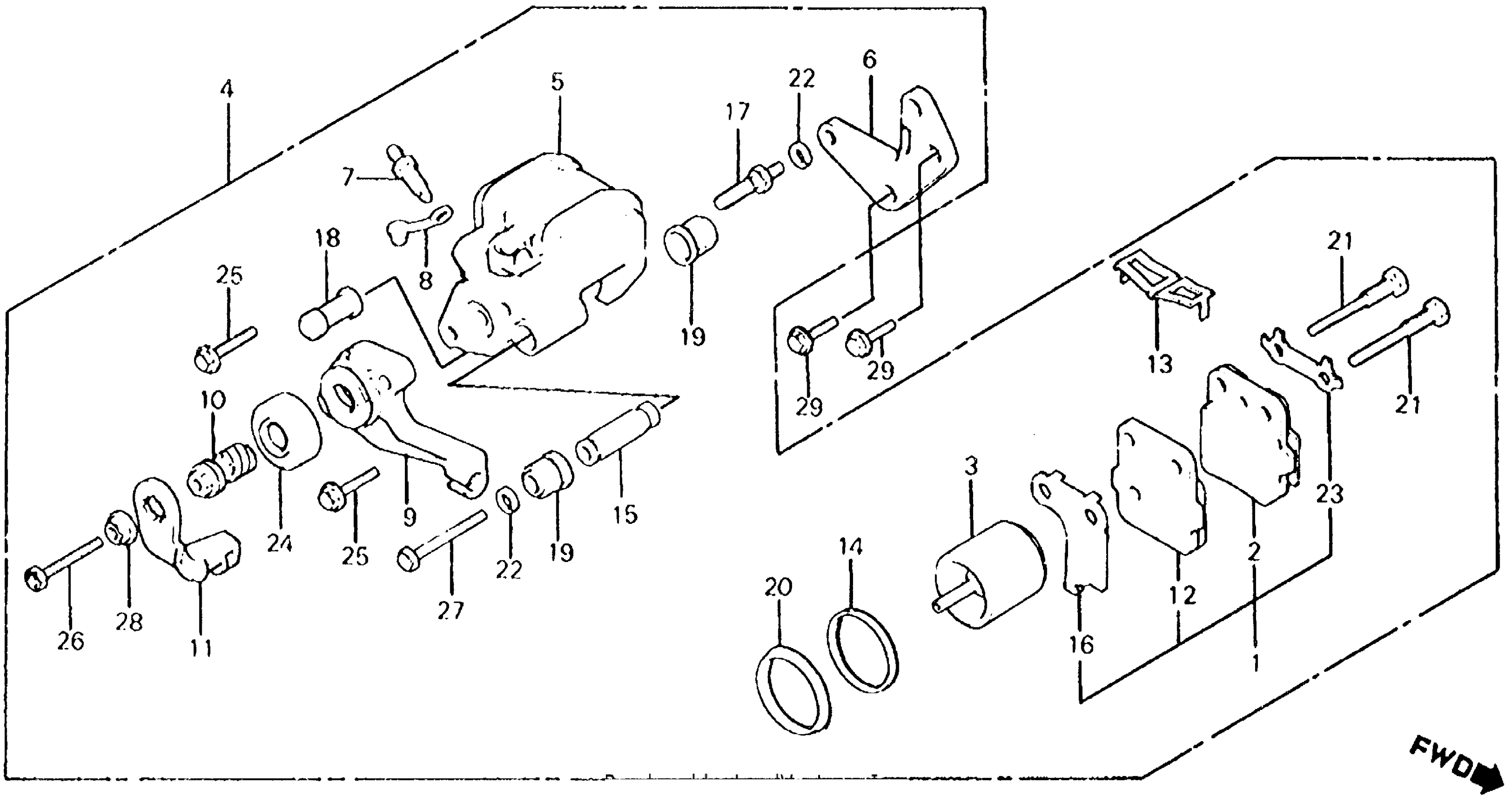

Honda ATC250RA (82) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-CC100001 TO JH3TB060-CC119528 REAR BRAKE CALIPER 82 Diagram

#

Description
Price

NI

BRAKE PAD KIT

431A0-961-006

Unavailable

1

PAD SET, RR. (NOT AVAILABLE)

43010-961-006

Unavailable

2

PAD, RR. (NOT AVAILABLE)

43106-961-006

Unavailable

3

PISTON (NISSIN)

43109-HC0-681

$115.97

3

PISTON (NISSIN) This part replaces 43109-961-006.

43109-HC0-681

$115.97

4

CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE)

43200-961-016

Unavailable

5

CALIPER, RR. (NISSHIN) (NOT AVAILABLE)

43201-961-006

Unavailable

6

BRACKET, RR.

43210-961-016

Unavailable

7

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

8

CAP, BLEEDER

43353-461-771

$5.05

9

BRAKE, PARKING (NOT AVAILABLE)

43360-961-006

Unavailable

10

SHAFT, L.

43361-961-006

$17.88

11

ARM (NOT AVAILABLE)

43362-961-006

Unavailable

12

PAD (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-961-006

Unavailable

13

SPRING, PAD

45108-166-006

$7.46

14

DUST SEAL

45109-961-006

$5.08

15

SLEEVE (NOT AVAILABLE)

45111-166-026

Unavailable

16

SHIM (NOT AVAILABLE)

45116-166-006

Unavailable

17

BOLT, PIN

45131-166-016

$7.63

18

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

19

BOOT, PIN

45133-166-016

$3.85

20

SEAL, PISTON

45209-961-006

$6.20

21

PIN, HANGER

45215-166-006

$13.51

22

WASHER, WAVE

45216-166-006

$2.34

23

WASHER, TONGUED

45217-166-006

$5.33

24

DUST SEAL, MASTER CYLINDER

46184-611-000

$10.61

24

DUST SEAL, MASTER CYLINDER This part replaces 46184-611-010.

46184-611-000

$10.61

25

BOLT (8X25)

90116-410-006

$6.07

26

BOLT (8X40)

90126-961-006

$5.16

27

BOLT, HEX. (8X50) This part replaces 92200-08050-0H.

92201-08050-0H

$2.23

27

BOLT, HEX. (8X50)

92201-08050-0H

$2.23

28

NUT-WASHER (8MM)

94071-08080

$1.49

29

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

29

BOLT, FLANGE (8X14)

95800-08014-00

$1.49

29

BOLT, FLANGE (8X14) This part replaces 95801-08014-00.

95701-08014-00

$1.49
