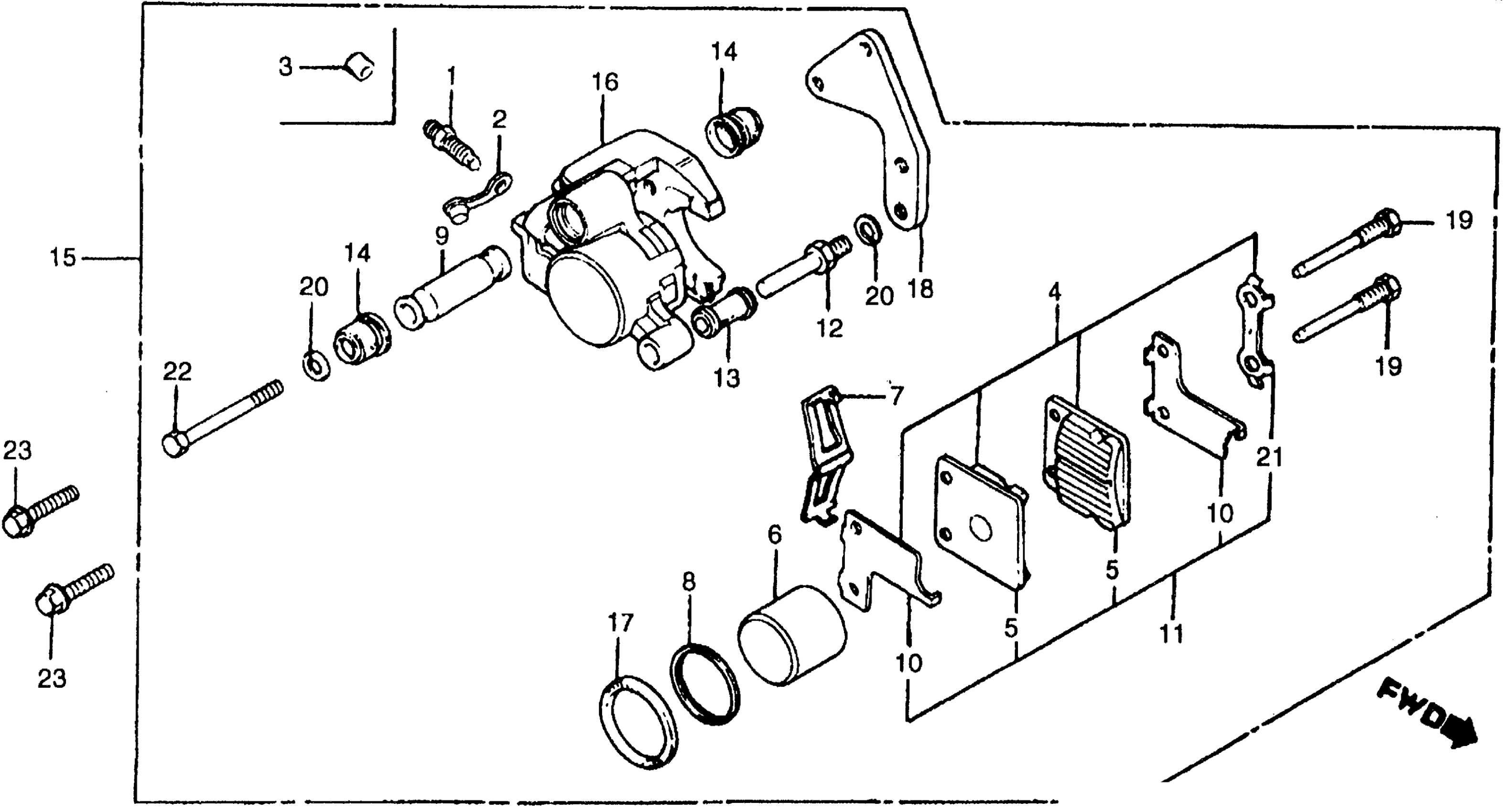

Honda ATC250RA (82) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-CC100001 TO JH3TB060-CC119528 FRONT BRAKE CALIPER 81-82 Diagram

PAD SET This part replaces 451A0-961-670.

45011-965-006

$33.44

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PAD SET, FR.

45011-961-006

Unavailable

PAD (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-961-006

Unavailable

PISTON (NISSIN)

45107-HC0-681

$74.26

PISTON (NISSIN) This part replaces 45107-961-006.

45107-HC0-681

$74.26

SPRING, PAD

45108-166-006

$7.46

DUST SEAL

45109-961-006

$5.08

SLEEVE (NOT AVAILABLE)

45111-166-026

Unavailable

SHIM (NOT AVAILABLE)

45116-166-006

Unavailable

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT, PIN

45133-166-016

$3.85

CALIPER ASSY., R.

45200-961-016

Unavailable

CALIPER (NOT AVAILABLE)

45201-961-006

Unavailable

SEAL, PISTON

45209-961-006

$6.20

BRACKET, CALIPER (NOT AVAILABLE)

45210-961-016

Unavailable

PIN, HANGER

45215-166-006

$13.51

WASHER, WAVE

45216-166-006

$2.34

WASHER, TONGUED

45217-166-006

$5.33

BOLT, HEX. (8X50) This part replaces 92200-08050-0H.

92201-08050-0H

$2.23

BOLT, HEX. (8X50)

92201-08050-0H

$2.23

BOLT, FLANGE (8X40) This part replaces 95800-08040-00.

95801-08040-00

$1.49

BOLT, FLANGE (8X40)

95801-08040-00

$1.49
