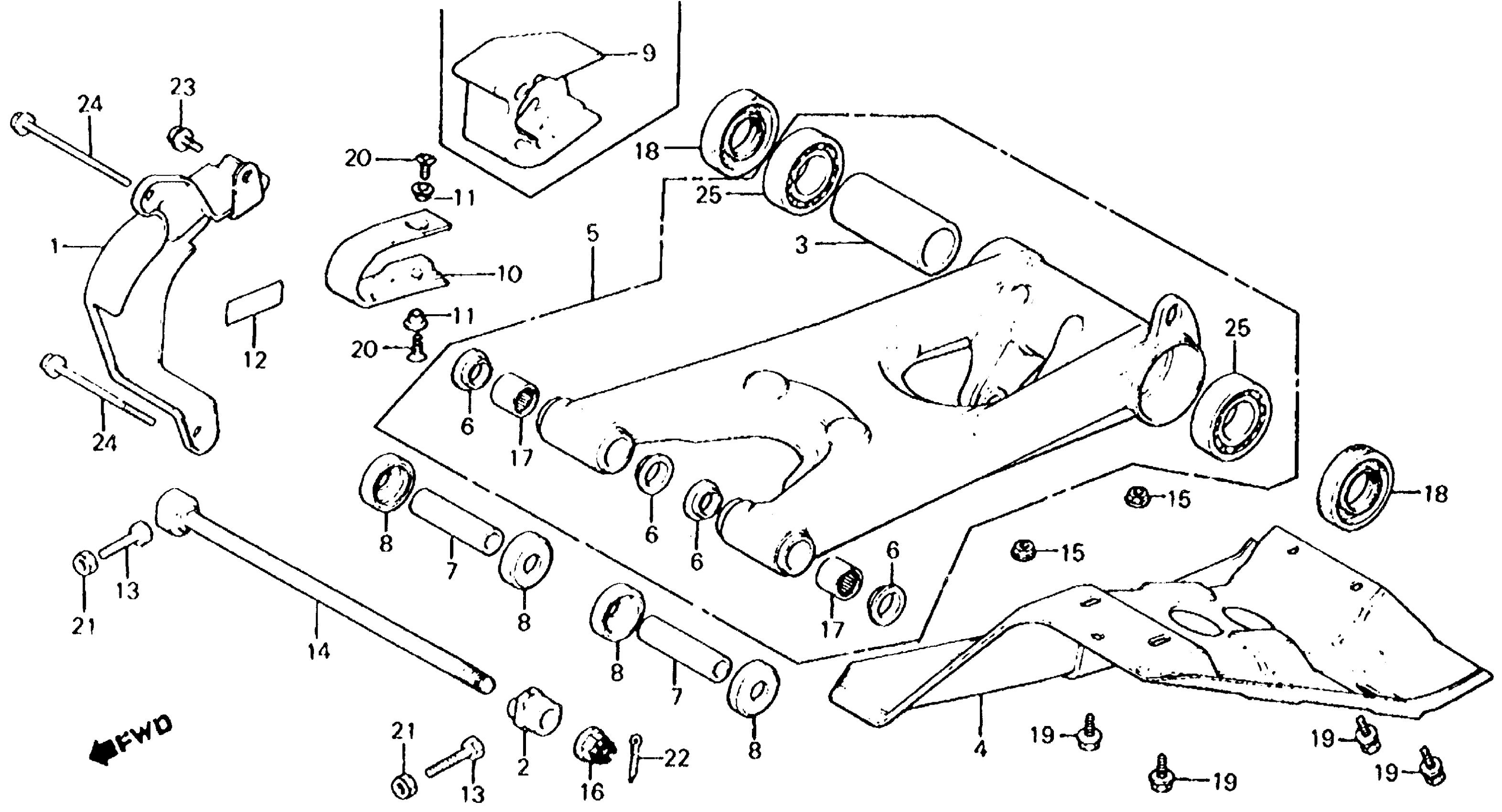

Honda ATC250RA (81) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-BC000020 TO JH3TB060-BC011196 SWINGARM 81-82 Diagram

#

Description
Price

1

COVER, DRIVE SPROCKET (NOT AVAILABLE) This part replaces 23810-961-000.

23810-961-020

Unavailable

1

COVER, DRIVE SPROCKET (NOT AVAILABLE)

23810-961-020

Unavailable

2

COLLAR, RR. AXLE

42304-446-770

Unavailable

3

COLLAR, RR. AXLE (NOT AVAILABLE)

42621-961-000

Unavailable

4

PLATE, SKID (NOT AVAILABLE)

50355-961-000

Unavailable

5

SWINGARM ASSY. *R109* (PASSION RED) (NOT AVAILABLE)

521A0-961-000ZA

Unavailable

6

BUSH, PIVOT THRUST

52109-430-300

$16.01

7

COLLAR, SWINGARM (NOT AVAILABLE)

52141-961-000

Unavailable

8

CAP, DUST SEAL (NIPPON)

52144-KR8-005

$13.52

8

CAP, DUST SEAL (NIPPON) This part replaces 52144-430-003.

52144-KR8-005

$13.52

8

CAP, DUST SEAL (NIPPON) This part replaces 52144-430-005.

52144-KR8-005

$13.52

9

SLIDER, CHAIN (NOT AVAILABLE)

52170-961-000

Unavailable

13

BOLT, HEX. (8X35) (NOT AVAILABLE)

90003-961-000

Unavailable

14

BOLT, SWINGARM (NOT AVAILABLE)

90117-961-000

Unavailable

16

NUT, AXLE (14MM)

90305-401-680

$11.65

17

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$24.72

17

BEARING, NEEDLE (20X26X20) (TOYO) This part replaces 91071-430-003.

91070-GC4-601

$24.72

18

DUST SEAL (42X62X7) This part replaces 91252-958-003.

91252-958-013

$21.74

18

DUST SEAL (42X62X7) This part replaces 91252-958-004.

91252-958-013

$21.74

18

DUST SEAL (42X62X7)

91252-958-013

$21.74

18

DUST SEAL (42X62X7) This part replaces 91252-958-014.

91252-958-013

$21.74

19

BOLT-WASHER (6X12)

93404-06012-00

$1.55

19

BOLT-WASHER (6X12) This part replaces 93494-06012-00.

93404-06012-00

$1.55

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

22

PIN, SPLIT (3.0X45)

94201-30450

$1.49

23

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

23

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

24

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

24

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

24

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

24

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

25

BEARING, RADIAL BALL (6007)

96100-60070-10

Unavailable
