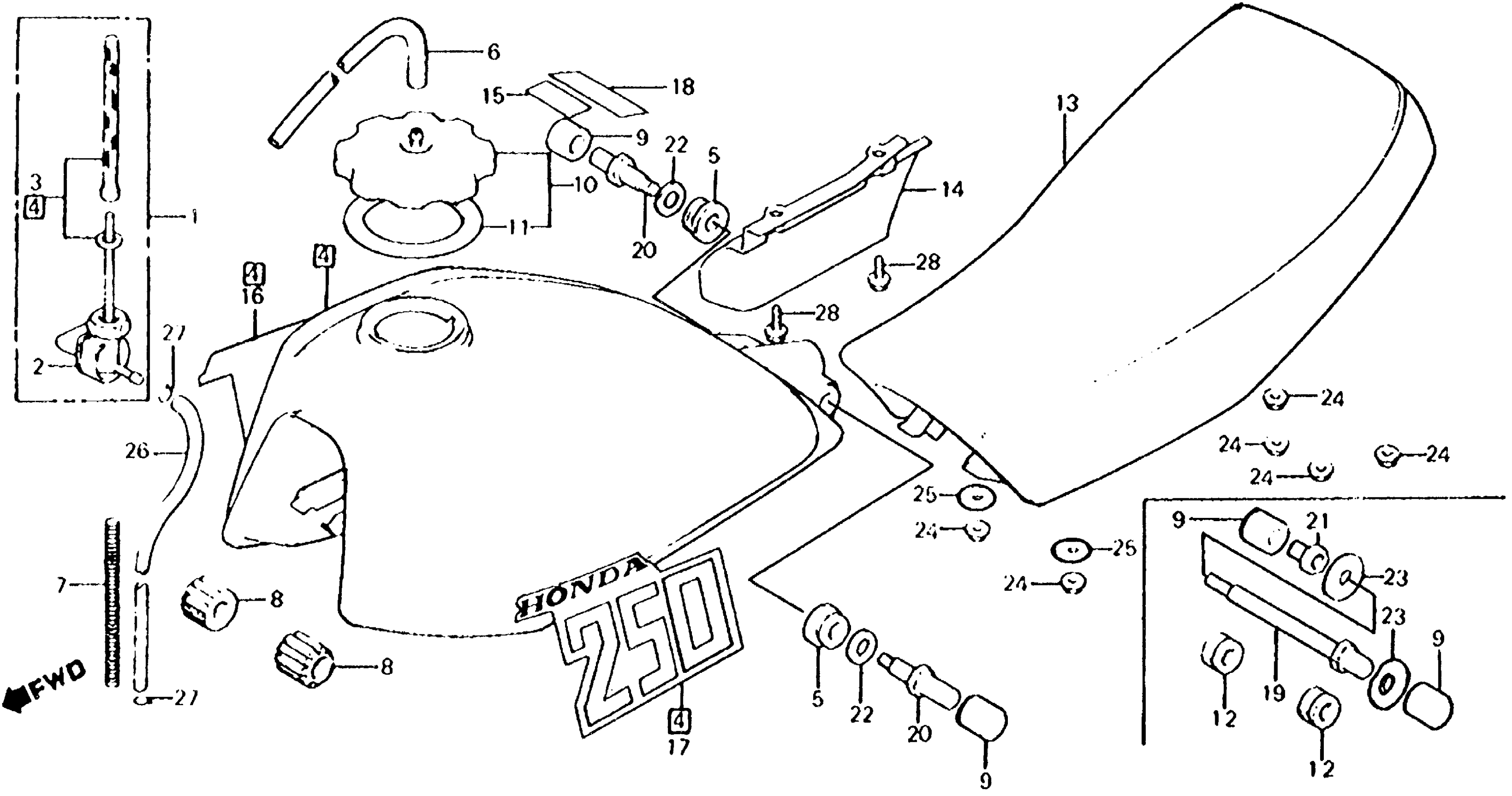

Honda ATC250RA (81) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-BC000020 TO JH3TB060-BC011196 FUEL TANK + SEAT 81-82 Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-425-025

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE)

16951-425-025

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-425-005

Unavailable

4

TANK SET, FUEL *R109* (PASSION RED) (NOT AVAILABLE)

175A1-961-000ZA

Unavailable

6

TUBE, FUEL CAP BREATHER

17530-437-000

$8.92

7

SPRING, FUEL TUBE COVER

17532-404-000

Unavailable

8

CUSHION, FR. FUEL TANK

17611-HA5-000

$5.21

8

RUBBER, FR. FUEL TANK This part replaces 17611-176-000.

17611-HA5-000

$5.21

9

CUSHION, RR. FENDER

17611-958-670

Unavailable

10

CAP, FUEL FILLER (NOT AVAILABLE)

17620-434-010

Unavailable

11

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

11

GASKET This part replaces 17631-434-310.

17631-899-010

$6.32

11

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

11

GASKET This part replaces 17631-958-680.

17631-899-010

$6.32

12

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.67

13

SEAT (NOT AVAILABLE) This part replaces 77100-961-003.

77100-961-023

Unavailable

13

SEAT (NOT AVAILABLE) This part replaces 77100-961-013.

77100-961-023

Unavailable

13

SEAT (NOT AVAILABLE)

77100-961-023

Unavailable

14

PROTECTOR, SEAT *R109* (PASSION RED) (NOT AVAILABLE)

77106-961-000ZA

Unavailable

15

LABEL, OIL CAUTION (NOT AVAILABLE)

87109-961-010

Unavailable

16

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-961-000

Unavailable

17

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-961-000

Unavailable

18

PLATE, CAUTION (NOT AVAILABLE)

87505-918-010

Unavailable

19

BOLT, FUEL TANK MOUNTING (NOT AVAILABLE)

90105-961-000

Unavailable

21

NUT, FUEL TANK MOUNTING (NOT AVAILABLE)

90301-961-000

Unavailable

23

WASHER, SPROCKET SETTING

90551-033-000

$1.74

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

WASHER, PLAIN (6MM)

94103-06800

$1.49

26

BULK HOSE, FUEL (5.5X3000) (5.5X260)

95001-55003-60M

$47.32

26

BULK HOSE, FUEL (5.5X3000) (5.5X300)

95001-55003-60M

$47.32

27

CLIP, TUBE (B10)

95002-02100

$1.90

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
