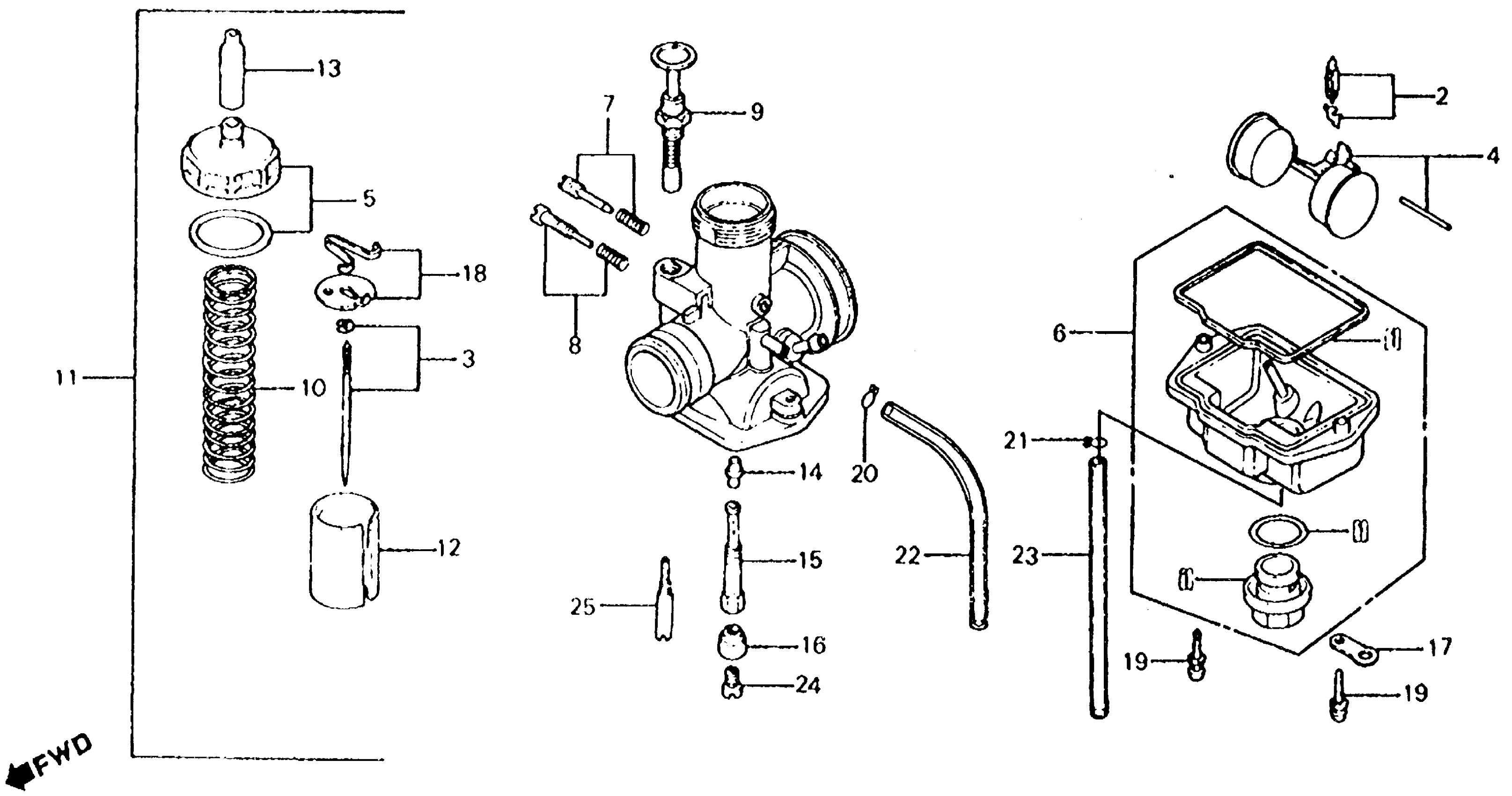

Honda ATC250RA (81) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-BC000020 TO JH3TB060-BC011196 CARBURETOR 81-82 Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-169-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-169-004.

16011-GBF-B41

$36.72

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-169-671

Unavailable

4

FLOAT SET (NOT AVAILABLE)

16013-169-671

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-169-014

Unavailable

6

CHAMBER SET, FLOAT

16015-961-004

Unavailable

7

SCREW SET A

16016-GB4-003

$23.02

7

SCREW SET A This part replaces 16016-166-004.

16016-GB4-003

$23.02

8

SCREW SET B

16028-402-701

Unavailable

9

VALVE SET, STARTER (NOT AVAILABLE)

16046-961-004

Unavailable

10

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-961-004

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-961-024.

16100-961-054

Unavailable

12

VALVE, THROTTLE

16111-961-004

Unavailable

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

NEEDLE, JET

16164-169-004

Unavailable

15

JET SET (ATC250R) This part replaces 16165-961-014..

99010-961-3050

Unavailable

16

HOLDER, JET (NOT AVAILABLE)

16168-169-004

Unavailable

17

BINDER (NOT AVAILABLE)

16179-428-671

Unavailable

18

PLATE SET (NOT AVAILABLE)

16212-169-004

Unavailable

19

SCREW-WASHER (4X16)

93892-04016-08

$1.49

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

CLIP, TUBE (B8)

95002-02080

$1.80

22

BULK HOSE, VINYL (4X7X8000) (4X7X130)

95003-07008-60M

$24.47

23

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X300)

95003-09001-60M

$3.45

24

JET, MAIN (#158)

99101-HN2-1580

$11.44

24

JET, MAIN (#158) This part replaces 99101-393-1580.

99101-HN2-1580

$11.44

25

JET, SLOW (#50)

99103-441-0500

Unavailable
