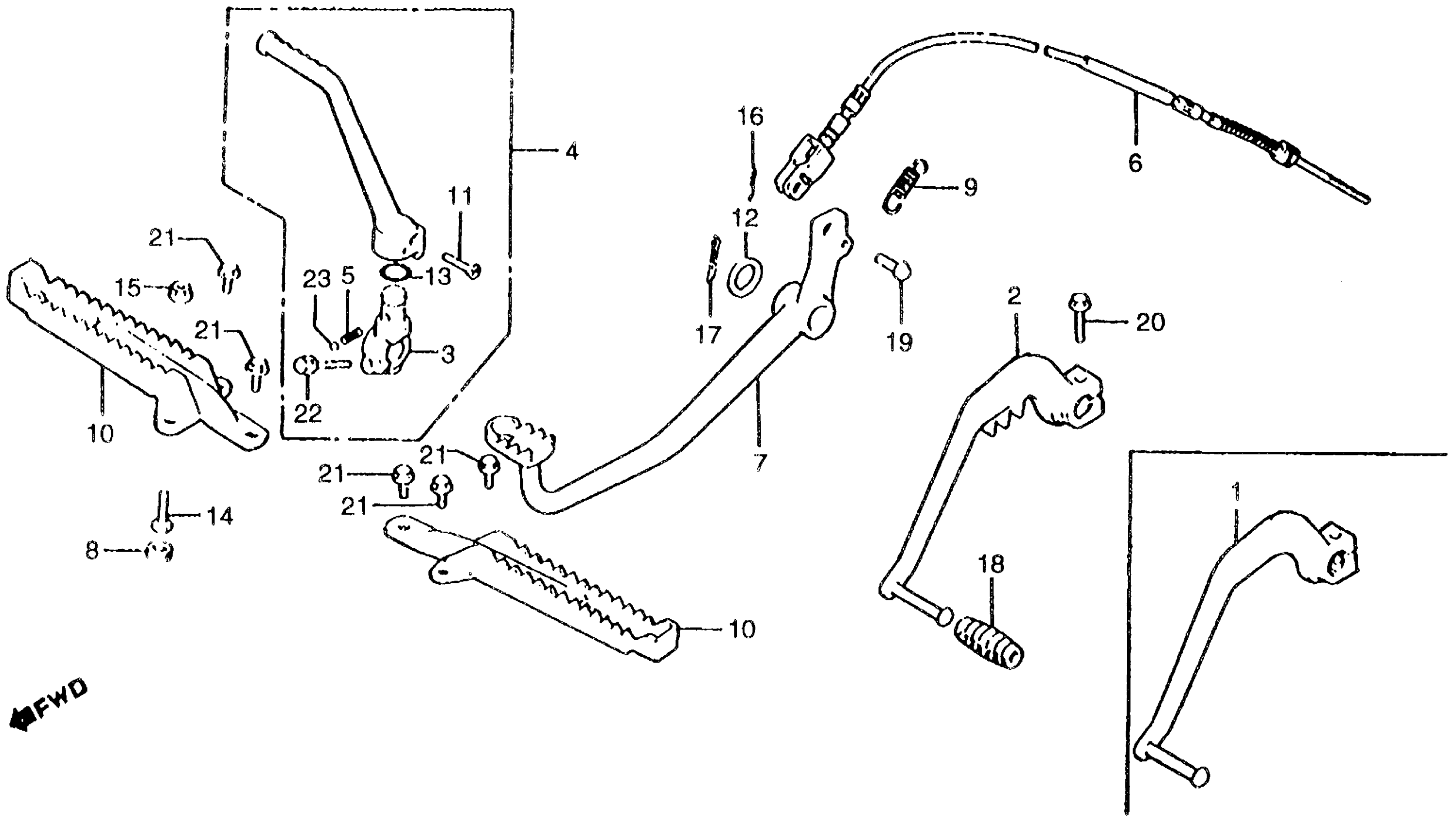

Honda ATC250RA (81) ALL TERRAIN CYCLE, JPN, VIN# JH3TB060-BC000020 TO JH3TB060-BC011196 BRAKE PEDAL + GEARSHIFT PEDAL + FOOTPEG 81-82 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24701-961-000.

24701-961-020

Unavailable

3

JOINT, KICK ARM (NOT AVAILABLE)

28241-428-871

Unavailable

4

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-961-000

Unavailable

5

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

6

CABLE, FOOT BRAKE (NOT AVAILABLE)

43470-961-000

Unavailable

7

PEDAL, BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)

46500-961-000ZA

Unavailable

8

RUBBER, BRAKE PEDAL STOPPER (NOT AVAILABLE)

46505-961-000

Unavailable

9

SPRING, BRAKE PEDAL

46514-VM3-000

Unavailable

9

SPRING, BRAKE PEDAL This part replaces 46514-942-000.

46514-VM3-000

Unavailable

10

BAR, FOOTPEG (NOT AVAILABLE)

50610-961-000

Unavailable

11

BOLT, KICK ARM

90101-329-000

$3.67

12

WASHER (17.5MM)

90512-303-000

$1.77

13

O-RING (14MM) (ARAI)

91353-671-003

$2.73

14

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

14

BOLT, HEX. (8X25) This part replaces 92000-08025-00.

92101-08025-0A

$1.74

14

BOLT, HEX. (8X25) This part replaces 92100-08025-0A.

92101-08025-0A

$1.74

14

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

PIN, SPLIT (1.6X12)

94201-16120

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

17

PIN, SPLIT (3.0X45)

94201-30450

$1.49

18

RUBBER, CHANGE PEDAL

95011-40000

$1.49

19

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

20

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

20

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

21

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

21

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

22

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

22

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
