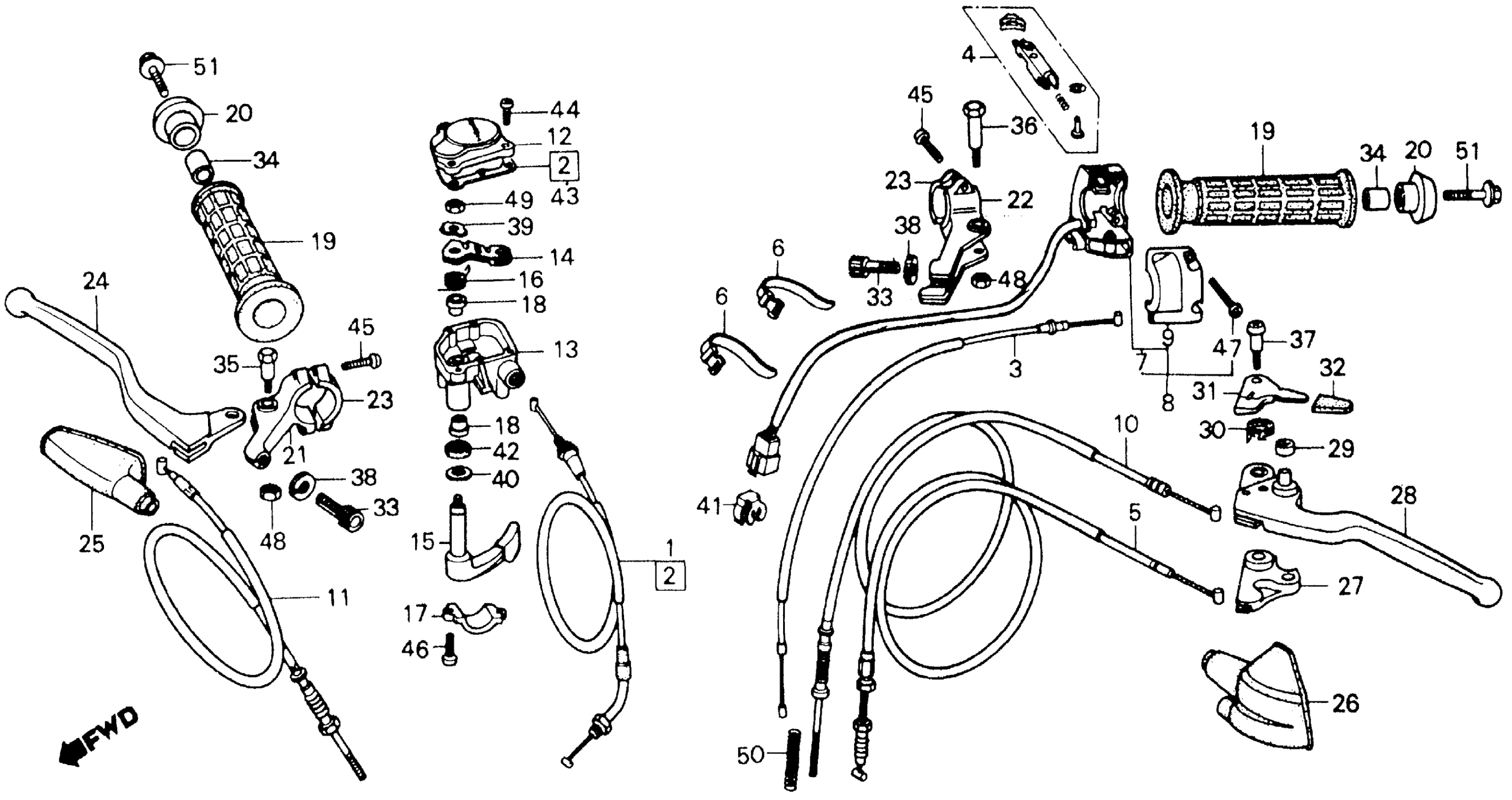

Honda ATC250ESA (87) BIG RED, JPN, VIN# JH3TE040-HM300011 TO JH3TE040-HM304900 SWITCH + HANDLE LEVER + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HA0-680

Unavailable

2

CABLE, THROTTLE (NOT AVAILABLE)

17910-HA0-315

Unavailable

3

CABLE, CHOKE

17950-HA0-770

Unavailable

4

LEVER, CHOKE This part replaces 17962-HA0-680.

17010-HA0-305

$18.16

5

CABLE, REVERSE ASSIST

22880-HA0-680

Unavailable

6

BAND B1, CABLE

32161-404-000

$2.23

8

SWITCH ASSY., STARTER LIGHTING (NOT AVAILABLE)

35200-HA0-681

Unavailable

9

COVER, LIGHTING SWITCH

35201-HA0-680

Unavailable

10

CABLE, BRAKE

43460-HA0-405

Unavailable

10

CABLE, BRAKE This part replaces 43460-HA0-770.

43460-HA0-405

Unavailable

11

CABLE, FR. BRAKE

45450-HA6-770

Unavailable

11

CABLE, FR. BRAKE This part replaces 45450-HA0-770.

45450-HA6-770

Unavailable

12

COVER, THROTTLE CASE

53141-HA0-010

Unavailable

13

CASE, THROTTLE LEVER

53142-HA0-020

Unavailable

14

ARM, THROTTLE

53144-HA0-010

$7.72

15

LEVER, THROTTLE

53145-HA0-770

$24.05

16

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

17

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

18

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

19

GRIP, HANDLE

53165-958-010

$13.38

20

GUARD, HANDLEBAR END

53167-958-680

$6.40

21

BRACKET, R. HANDLE LEVER

53171-HA0-680

Unavailable

22

BRACKET, BRAKE LEVER (NOT AVAILABLE) This part replaces 53172-HA0-681.

53172-HA0-682

Unavailable

23

HOLDER, LEVER BRACKET

53173-958-000

$10.59

24

LEVER, R. HANDLEBAR This part replaces 53175-HA0-680.

53175-HC3-000

$25.68

24

LEVER, R. HANDLEBAR

53175-HC3-000

$25.68

25

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-VM6-000

Unavailable

26

COVER, L. HANDLEBAR

53177-HA0-680

$11.72

27

ARM, REVERSE ASSIST

53179-VM6-000

Unavailable

28

LEVER, RR. BRAKE

53180-HC3-000

Unavailable

28

LEVER, RR. BRAKE This part replaces 53180-HA0-770.

53180-HC3-000

Unavailable

29

CAP, REVERSE PIN

53187-VM6-000

$3.89

30

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

31

LEVER, PARKING LOCK

53192-HA0-770

Unavailable

32

CAP, PARKING LEVER

53193-HA0-770

$6.16

33

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

34

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

35

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.67

36

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.56

37

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

38

NUT, FIXING

90321-315-670

$7.31

38

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

39

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

40

WASHER (9X20)

90504-HA0-000

$2.28

41

CLIP, CHOKE CABLE

90651-HA0-680

$4.33

42

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

42

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

43

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

44

SCREW, PAN (4X16)

93500-04016-0G

$1.49

45

SCREW, PAN (5X18)

93500-05018-0A

$1.49

46

SCREW, PAN (5X18)

93500-05018-0G

$1.49

47

SCREW, PAN (5X22)

93500-05022-0G

$1.49

48

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

48

NUT, HEX. (6MM)

94001-06200-0S

$1.49

49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

50

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

51

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

51

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
