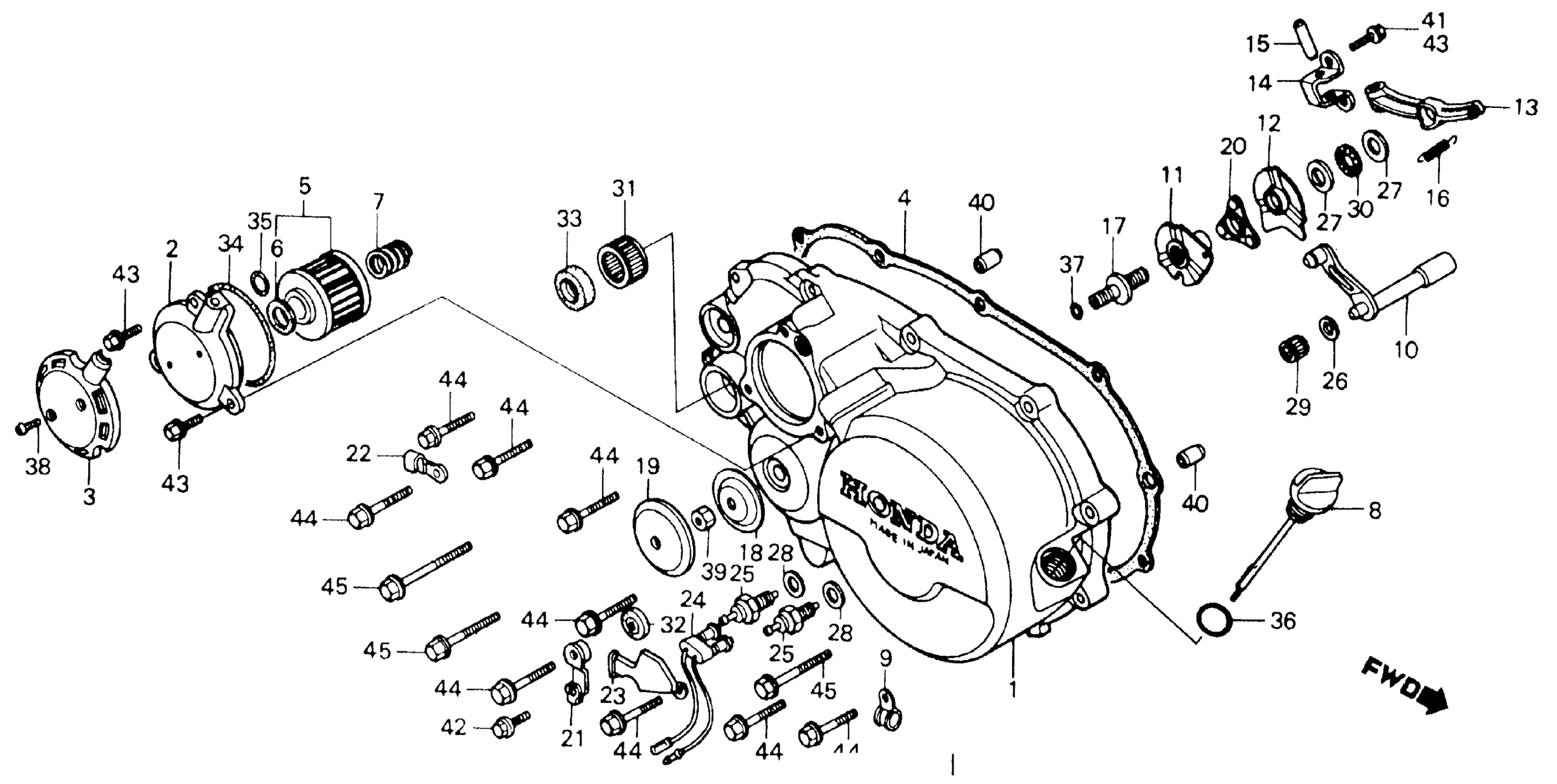

Honda ATC250ESA (87) BIG RED, JPN, VIN# JH3TE040-HM300011 TO JH3TE040-HM304900 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-HA0-770.

11330-HA8-415

Unavailable

1

COVER, R. CRANKCASE This part replaces 11330-HA8-405.

11330-HA8-415

Unavailable

1

COVER, R. CRANKCASE

11330-HA8-415

Unavailable

2

COVER, OIL FILTER

11333-HA0-000

Unavailable

3

PROTECTOR, OIL FILTER COVER

11334-HA0-000

Unavailable

4

GASKET, R. CRANKCASE COVER This part replaces 11394-HA7-690.

11394-HC4-840

$27.21

4

GASKET, R. CRANKCASE COVER This part replaces 11394-HA8-000.

11394-HC4-840

$27.21

4

GASKET, R. CRANKCASE COVER This part replaces 11394-HA8-306.

11394-HC4-840

$27.21

4

GASKET, R. CRANKCASE COVER

11394-HC4-840

$27.21

5

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.57

5

ELEMENT, OIL FILTER

15410-KF0-315

$5.57

5

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.57

6

RUBBER, FILTER

15413-MC8-000

Unavailable

7

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

8

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-HA0-680.

15650-HA6-680

Unavailable

9

CLAMP, WIRE

32922-MB2-000

Unavailable

10

LEVER, CLUTCH (NOT AVAILABLE)

22810-HA0-770

Unavailable

11

PLATE, CLUTCH CAM

22821-HA0-310

Unavailable

12

PLATE, CLUTCH LIFTER

22830-HA0-010

Unavailable

13

ARM, CLUTCH

22835-HA0-000

Unavailable

14

STAY, CLUTCH ARM

22836-HA0-000

Unavailable

15

SHAFT, CLUTCH ARM

22837-HA0-000

Unavailable

16

SPRING, CLUTCH ARM

22839-HA0-000

Unavailable

17

BOLT, CLUTCH ADJUSTING

22841-HA0-000

Unavailable

18

RETAINER, CLUTCH ADJ.

22842-HA0-680

Unavailable

19

CAP, CLUTCH ADJUSTING

22850-HA0-680

Unavailable

20

RETAINER, BALL

22860-HA0-000

Unavailable

21

LEVER, REVERSE STOPPER (NOT AVAILABLE)

24865-HA0-000

Unavailable

22

HOLDER, REVERSE STOPPER WIRE

24871-HA0-010

Unavailable

23

COVER, HARNESS (NOT AVAILABLE)

24880-HA0-000

Unavailable

24

SUB-WIRE, CHANGE SWITCH | Use up to Engine SN 7017257

32410-HA0-010

Unavailable

25

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-HA0-000.

35600-HA0-003

$17.36

25

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$17.36

25

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-HA0-010.

35600-HA0-003

$17.36

25

SWITCH ASSY., NEUTRAL (TOYO) | Use up to Engine SN 7017257 This part replaces 35600-HA0-010.

35600-HA0-003

$17.36

26

WASHER (9MM)

90405-HA0-000

Unavailable

27

WASHER, THRUST (14MM)

90417-HA0-000

$3.50

28

WASHER, OIL BOLT

90545-300-000

$5.79

29

BEARING, NEEDLE (9MM)

91006-HA0-003

$12.24

30

BEARING, THRUST NEEDLE (15MM)

91062-HA0-003

Unavailable

31

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$18.88

32

OIL SEAL (12X22X5)

91201-965-000

$3.87

33

OIL SEAL (20X28X5)

91204-KF0-003

$6.23

34

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.31

35

O-RING (11X1.9) (NOK) This part replaces 91301-671-671.

91303-HA0-004

$1.97

35

O-RING (11X1.9) (ARAI)

91303-HA0-000

Unavailable

35

O-RING (11X1.9) (NOK) This part replaces 91303-HA0-003.

91303-HA0-004

$1.97

35

O-RING (11X1.9) (NOK)

91303-HA0-004

$1.97

36

O-RING (18X3) (ARAI)

91307-KF0-003

Unavailable

37

O-RING (8.2X1.5)

91308-MC7-000

$2.13

38

SCREW, TAPPING (4X12)

90017-HA0-000

$2.40

39

NUT, HEX. (8MM)

94031-08000

$1.04

40

PIN A, DOWEL (8X14)

94301-08140

$2.76

41

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

42

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

43

BOLT, FLANGE (6X18)

96001-06018-00

$1.79

44

BOLT, FLANGE (6X28)

96001-06028-00

$2.75

45

BOLT, FLANGE (6X35)

96001-06035-00

Unavailable
