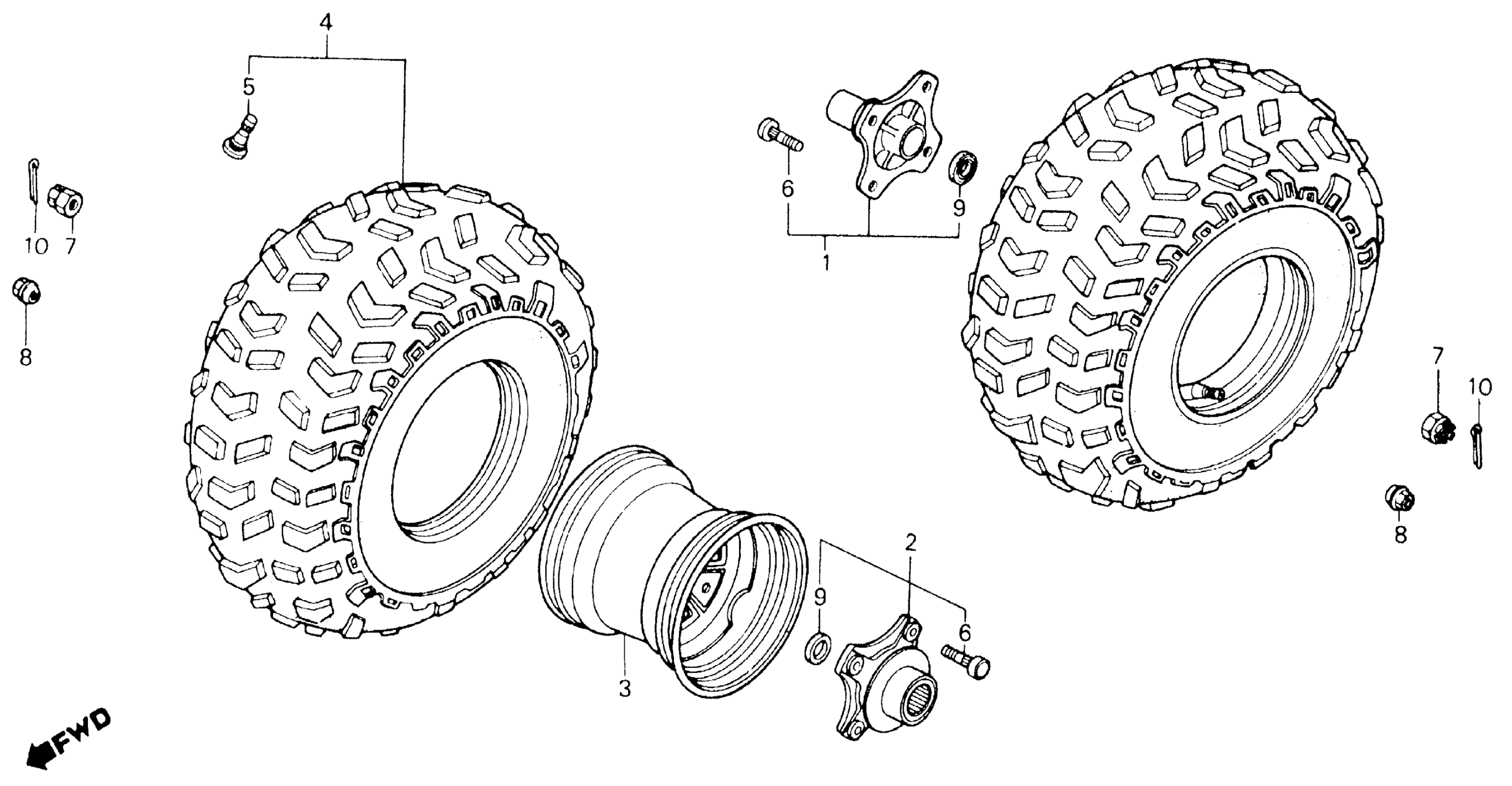

Honda ATC250ESA (87) BIG RED, JPN, VIN# JH3TE040-HM300011 TO JH3TE040-HM304900 REAR WHEEL 86,87 Diagram

HUB ASSY., L. RR.

42500-HA0-680

Unavailable

HUB ASSY., R. RR. This part replaces 42600-HA0-680.

42600-HA8-680

Unavailable

HUB ASSY., R. RR.

42600-HA8-680

Unavailable

RIM, WHEEL (NOT AVAILABLE)

42701-HA0-680

Unavailable

TIRE ASSY. (AT25X12-9) (PRO/AM501) (OHTSU) This part replaces 42710-HA0-681.

42710-HA0-683

Unavailable

TIRE ASSY. (AT25X12-9) (PRO/AM501) (OHTSU) This part replaces 42710-HA0-682.

42710-HA0-683

Unavailable

TIRE ASSY. (25X12-9) (PRO/AM501) (OHTSU)

42710-HA0-683

Unavailable

VALVE, RIM

42753-VM0-003

$10.30

BOLT, WHEEL (10X36)

90103-HA2-003

$8.57

NUT, CASTLE (18MM) This part replaces 90304-HB5-000.

90304-HM5-A80

$7.30

NUT, CASTLE (18MM)

90304-HM5-A80

$7.30

NUT, CASTLE (18MM) This part replaces 90305-HA8-000.

90304-HM5-A80

$7.30

NUT, WHEEL

90314-VM0-771

$6.31

OIL SEAL (20X28.2X5) (NOK) This part replaces 91255-HA8-000.

91255-HA8-004

Unavailable

OIL SEAL (20X28.2X5) (ARAI)

91255-HA8-003

Unavailable

OIL SEAL (20X28.2X5) (NOK)

91255-HA8-004

Unavailable

PIN, COTTER (4.0X30)

94201-40300

$1.49
