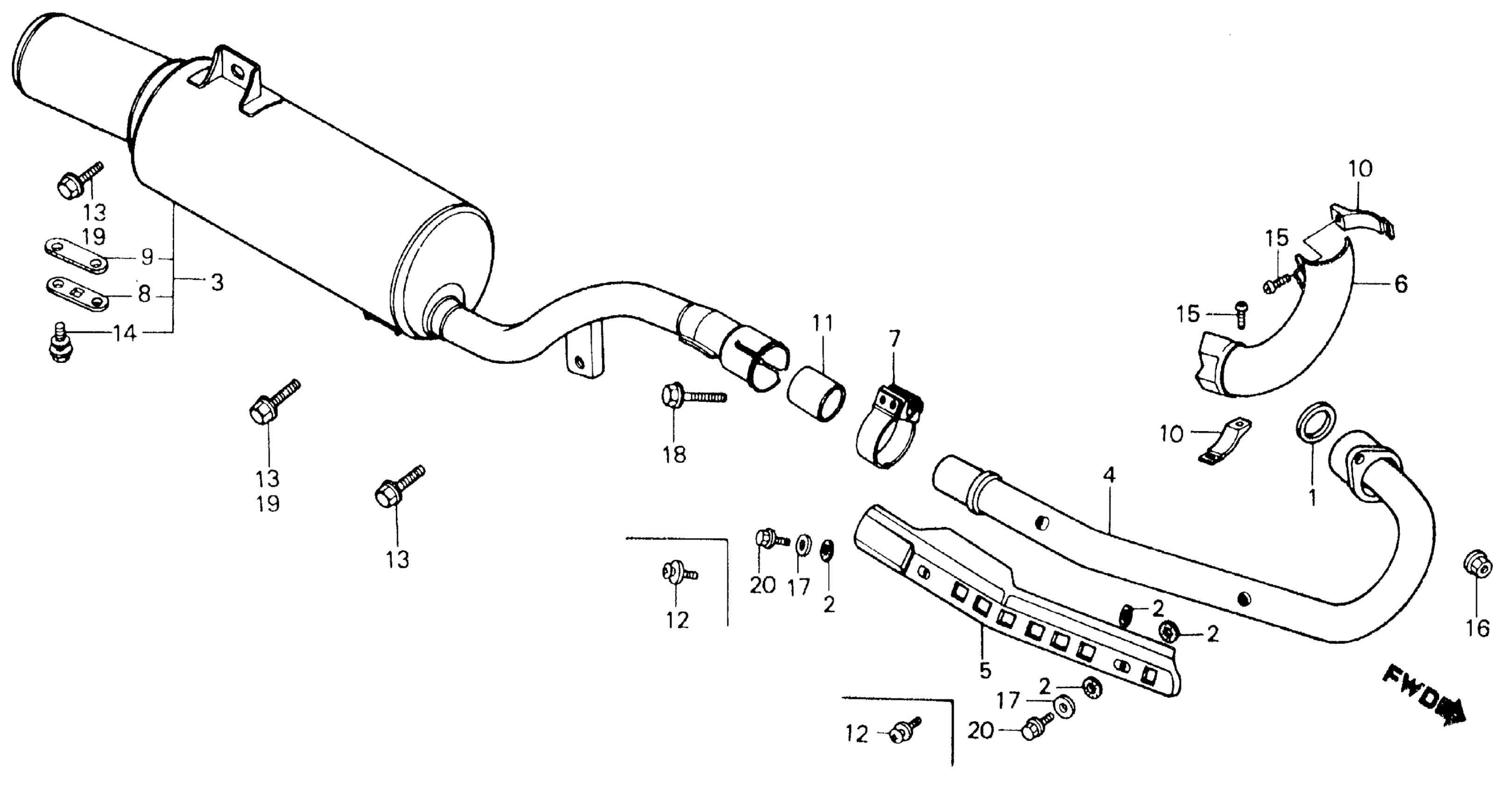

Honda ATC250ESA (87) BIG RED, JPN, VIN# JH3TE040-HM300011 TO JH3TE040-HM304900 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$5.31

1

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

2

GASKET, PROTECTOR

18293-MCA-780

$4.85

2

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

2

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

3

MUFFLER, EX.

18310-HA0-682

Unavailable

4

PIPE, EX. (NOT AVAILABLE)

18320-HA0-003

Unavailable

5

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18321-HA0-003

Unavailable

6

PROTECTOR, FR. EX. PIPE (NOT AVAILABLE)

18325-HA0-681

Unavailable

7

BAND, EX. MUFFLER

18373-HA0-003

$33.60

8

LID, MUFFLER This part replaces 18373-429-000.

18373-429-010

$9.15

8

LID, MUFFLER

18373-429-010

$9.15

9

GASKET, MUFFLER LID

18374-MN1-880

$4.21

9

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

10

BAND, PROTECTOR (35) (NOT AVAILABLE)

18376-HA0-681

Unavailable

11

GASKET, MUFFLER

18391-ML8-000

$9.49

11

GASKET, MUFFLER This part replaces 18391-110-000.

18391-ML8-000

$9.49

13

BOLT, HEX. (10X37)

90111-HA0-000

Unavailable

14

BOLT-WASHER (6X12)

93401-06012-07

$1.62

14

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

14

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

15

SCREW, PAN (6X16)

93500-06016-0B

Unavailable

16

NUT, FLANGE (8MM)

94050-08020

$1.91

17

WASHER, PLAIN (6MM)

94101-06200

$1.49

18

BOLT, FLANGE (8X35) This part replaces 95700-08035-08.

95701-08035-08

$1.49

18

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

19

BOLT, FLANGE (10X16) This part replaces 95700-10016-08.

95701-10016-08

$2.25

19

BOLT, FLANGE (10X16)

95701-10016-08

$2.25

20

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

20

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
