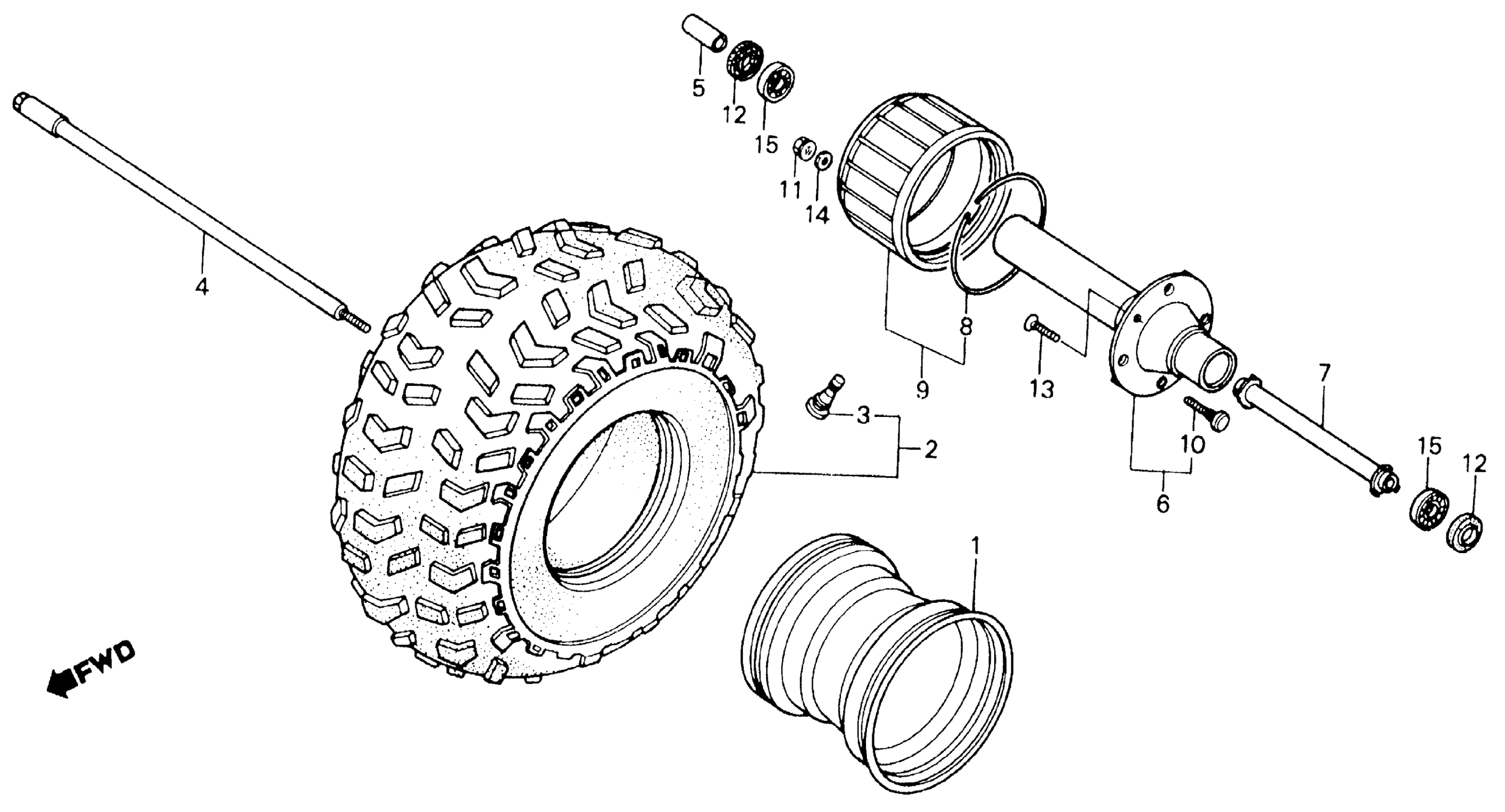

Honda ATC250ESA (87) BIG RED, JPN, VIN# JH3TE040-HM300011 TO JH3TE040-HM304900 FRONT WHEEL Diagram

RIM, WHEEL (NOT AVAILABLE)

42701-HA0-680

Unavailable

TIRE ASSY. (AT25X12-9) (PRO/AM501) (OHTSU) This part replaces 42710-HA0-681.

42710-HA0-683

Unavailable

TIRE ASSY. (AT25X12-9) (PRO/AM501) (OHTSU) This part replaces 42710-HA0-682.

42710-HA0-683

Unavailable

TIRE ASSY. (25X12-9) (PRO/AM501) (OHTSU)

42710-HA0-683

Unavailable

VALVE, RIM

42753-VM0-003

$10.30

AXLE, FR. WHEEL

44301-HA0-680

Unavailable

COLLAR, FR. AXLE SIDE

44312-HA0-000

Unavailable

HUB, FR. WHEEL (NOT AVAILABLE)

44601-HA0-680

Unavailable

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-HA0-680

Unavailable

RING, DAMPER

44624-HA0-000

Unavailable

DRUM ASSY., FR. BRAKE SUB (NOT AVAILABLE)

44625-HA0-680

Unavailable

BOLT, WHEEL (10X36)

90103-HA2-003

$8.57

NUT, WHEEL

90314-VM0-771

$6.31

DUST SEAL (23X42X7) (NOK) This part replaces 91251-958-003.

91251-958-004

$14.25

DUST SEAL (23X42X7) (NOK)

91251-958-004

$14.25

BEARING,BALL RADI This part replaces 91052-KR3-005.

91051-KEH-662

$38.56
