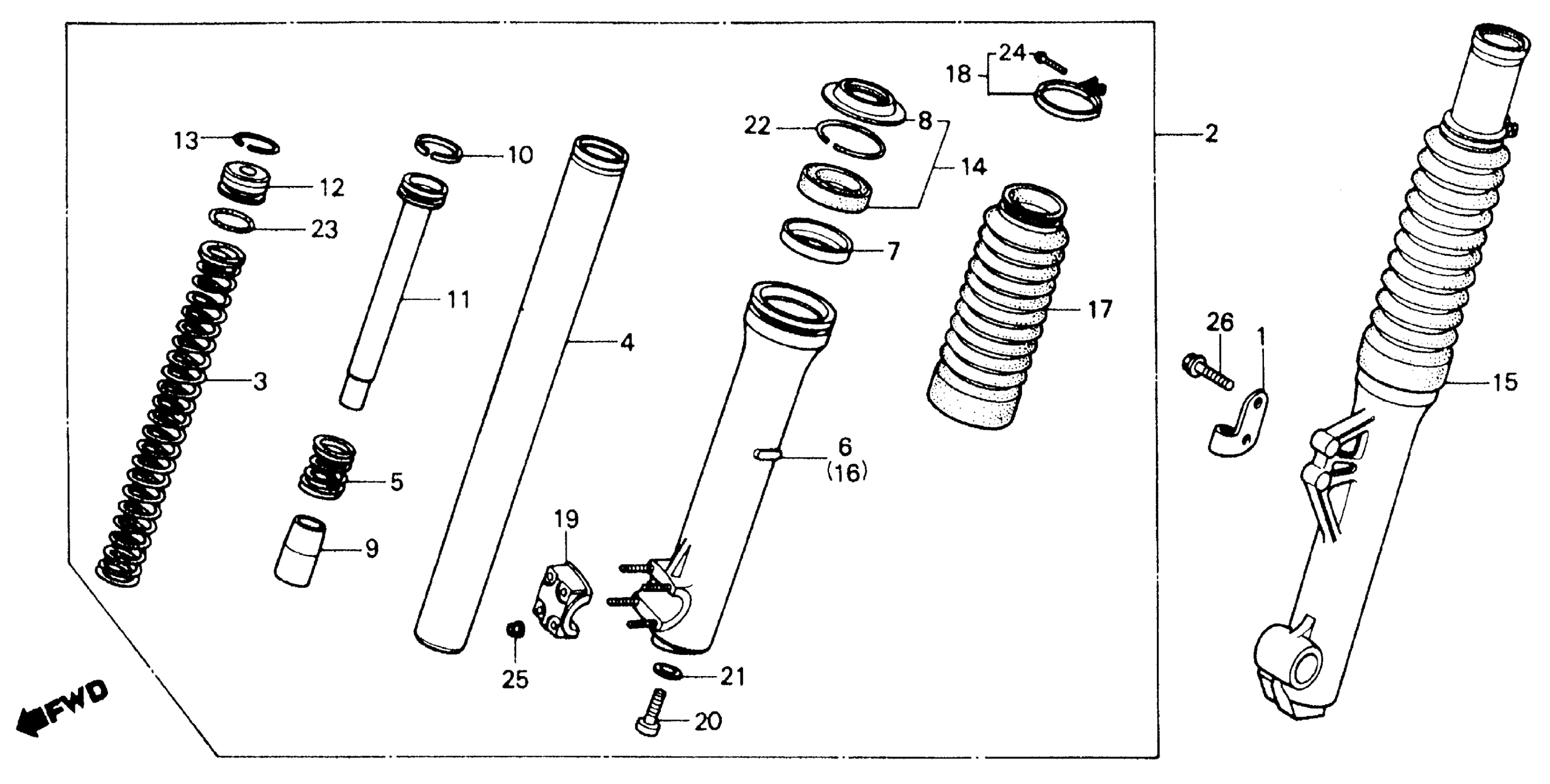

Honda ATC250ESA (87) BIG RED, JPN, VIN# JH3TE040-HM300011 TO JH3TE040-HM304900 FRONT FORK Diagram

RECEIVER, BRAKE CABLE (NOT AVAILABLE)

50142-HA0-000

Unavailable

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-HA0-681

Unavailable

SPRING, FR. FORK (NOT AVAILABLE)

51401-HA0-003

Unavailable

PIPE, FR. FORK (NOT AVAILABLE)

51410-HA0-003

Unavailable

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

CASE, R. (LOWER)

51420-HA0-681

Unavailable

RING, BACK-UP This part replaces 51422-376-003.

51422-376-305

Unavailable

RING, BACK-UP

51422-376-305

Unavailable

DUST SEAL

51425-473-003

$26.44

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

PIECE, OIL LOCKING

51432-447-731

$27.42

RING, PISTON

51437-400-771

$6.30

PIPE, SEAT

51440-HA0-003

Unavailable

SEAT, SPRING (UPPER) (NOT AVAILABLE)

51454-HA0-003

Unavailable

RING, STOPPER

51456-HA0-003

Unavailable

SEAL SET, FR. FORK

51490-473-305

$37.03

FORK ASSY., L. FR.

51500-HA0-681

Unavailable

CASE, L. (LOWER) (NOT AVAILABLE)

51520-HA0-681

Unavailable

BOOT, FR. FORK

51611-KL8-003

$52.11

BAND, FR. FORK BOOT

51612-428-900

$10.91

BAND, FR. FORK BOOT This part replaces 51612-473-000.

51612-428-900

$10.91

HOLDER, AXLE *NH35M* This part replaces 51634-HA0-003.

51634-MK5-003ZD

Unavailable

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

RING, OIL SEAL STOPPER

90601-369-000

$3.47

O-RING (NOT AVAILABLE)

91356-HA0-003

Unavailable

SCREW, PAN (3X20)

93500-03020-0G

$1.49

NUT, U (6MM)

90301-473-003

$4.07

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
