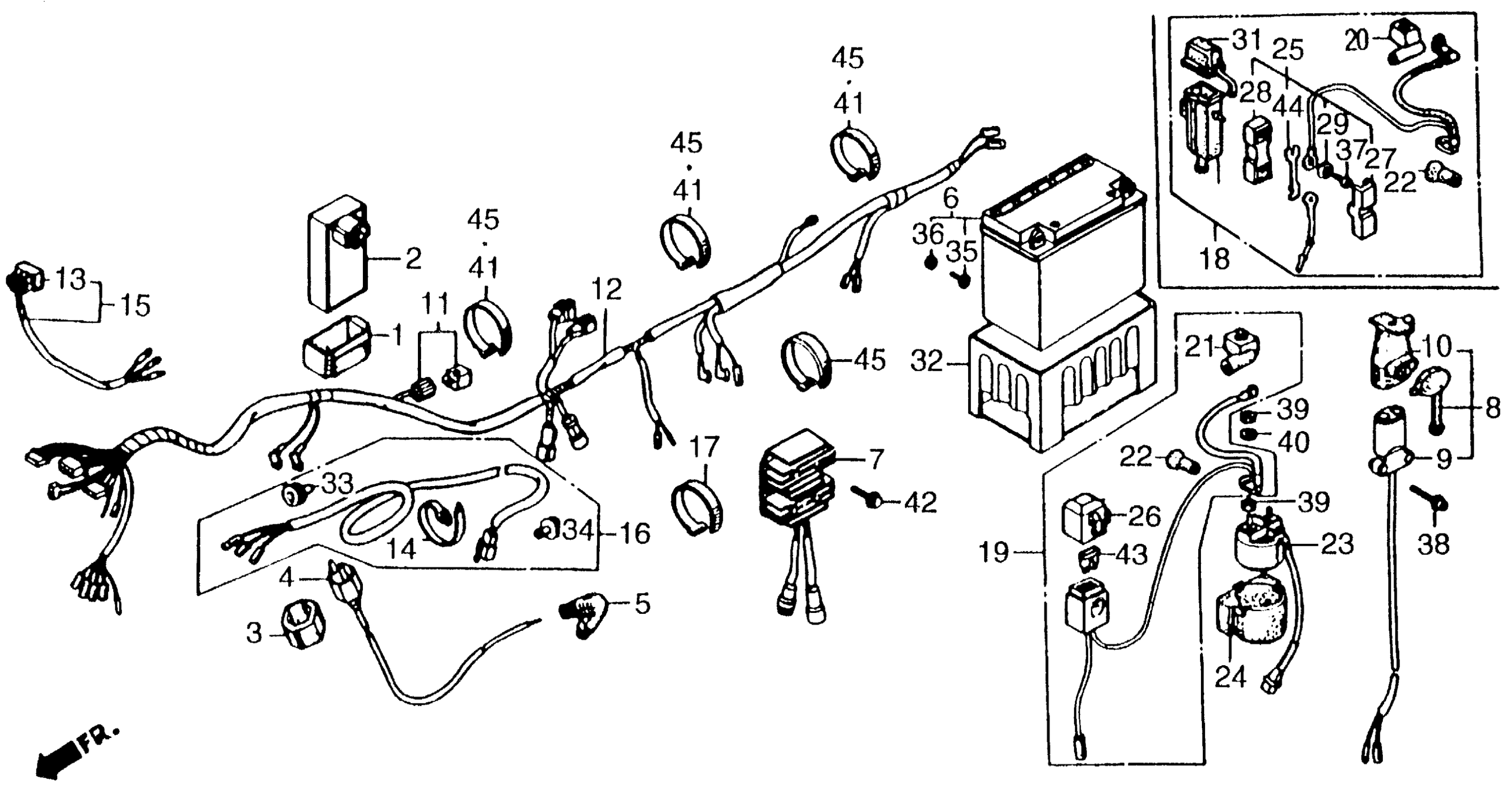

Honda ATC250ESA (86) BIG RED, JPN, VIN# JH3TE040-GM200009 TO JH3TE040-GM228683 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HA0-000.

30401-KYY-900

$4.21

2

MODULE, IGNITION CONTROL (CDI)

30410-HA8-003

Unavailable

3

SUSPENSION, IGNITION COIL

30506-HA0-000

Unavailable

4

COIL, IGNITION This part replaces 30510-HA0-000.

30510-MK4-405

$80.38

4

COIL, IGNITION

30510-MK4-405

$80.38

5

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-003.

30700-MA0-163

$22.32

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-681.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-682.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-683.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-685.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HA0-686.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HF1-677.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

6

BATTERY (YTX12-BS) This part replaces 31500-KM1-834.

31500-HS0-AK1AH

Unavailable

7

RECTIFIER, REGULATOR This part replaces 31600-HA0-000.

31600-HA8-770

Unavailable

8

RECEPTACLE ASSY., D.C.

31650-HA0-680

Unavailable

9

RECEPTACLE

31651-HA0-003

Unavailable

10

PLUG, RECEPTACLE

31652-HA0-680

Unavailable

11

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

11

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

12

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-HA0-680.

32100-HA0-770

Unavailable

13

COVER, HEADLIGHT SOCKET

32106-KE1-600

Unavailable

14

BAND, WIRE

32121-HA0-003

$8.11

15

SUB-WIRE HARNESS A, HEADLIGHT

32125-HA0-000

Unavailable

16

WIRE HARNESS, HEADLIGHT (NOT AVAILABLE)

32127-HA0-000

Unavailable

17

BAND B1, CABLE

32161-404-610

$2.23

19

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-HA0-680.

32401-HA0-770

Unavailable

21

COVER, BATTERY TERMINAL

32411-HA0-680

Unavailable

22

COVER A, MAGNETIC SWITCH

32412-MB1-000

Unavailable

23

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-HA0-010.

35850-HA0-771

$110.58

23

SWITCH ASSY., STARTER MAGNETIC

35850-HA0-771

$110.58

24

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

26

COVER, FUSE CASE This part replaces 38251-HA0-681.

38251-HA0-770

Unavailable

26

COVER, FUSE CASE

38251-HA0-770

Unavailable

32

RUBBER, BATTERY

50334-HA0-000

Unavailable

33

GROMMET, HEADLIGHT CASE

61302-HA0-000

Unavailable

34

GROMMET, HEADLIGHT CABLE

61307-HA0-000

Unavailable

35

BOLT, BATTERY TERMINAL

90122-HA0-007

$2.44

36

NUT, BATTERY TERMINAL This part replaces 90306-HA0-680.

90306-HA0-681

$1.89

36

NUT, BATTERY TERMINAL

90306-HA0-681

$1.89

38

SCREW-WASHER (5X22)

93894-05022-00

Unavailable

39

NUT, HEX. (6MM)

94002-06390-0S

$1.49

40

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

41

BAND B1, CABLE | Use up to Frame SN GM225086

32161-404-000

$2.23

41

BAND B1, CABLE | Use from Frame SN GM225087

32161-404-000

$2.23

41

BAND B1, CABLE | Use up to Frame SN GM225086 This part replaces 95014-61100.

32161-404-000

$2.23

41

BAND B1, CABLE | Use from Frame SN GM225087 This part replaces 95014-61100.

32161-404-000

$2.23

42

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

42

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

43

FUSE, BLADE (20A)

98200-32000

$1.49
