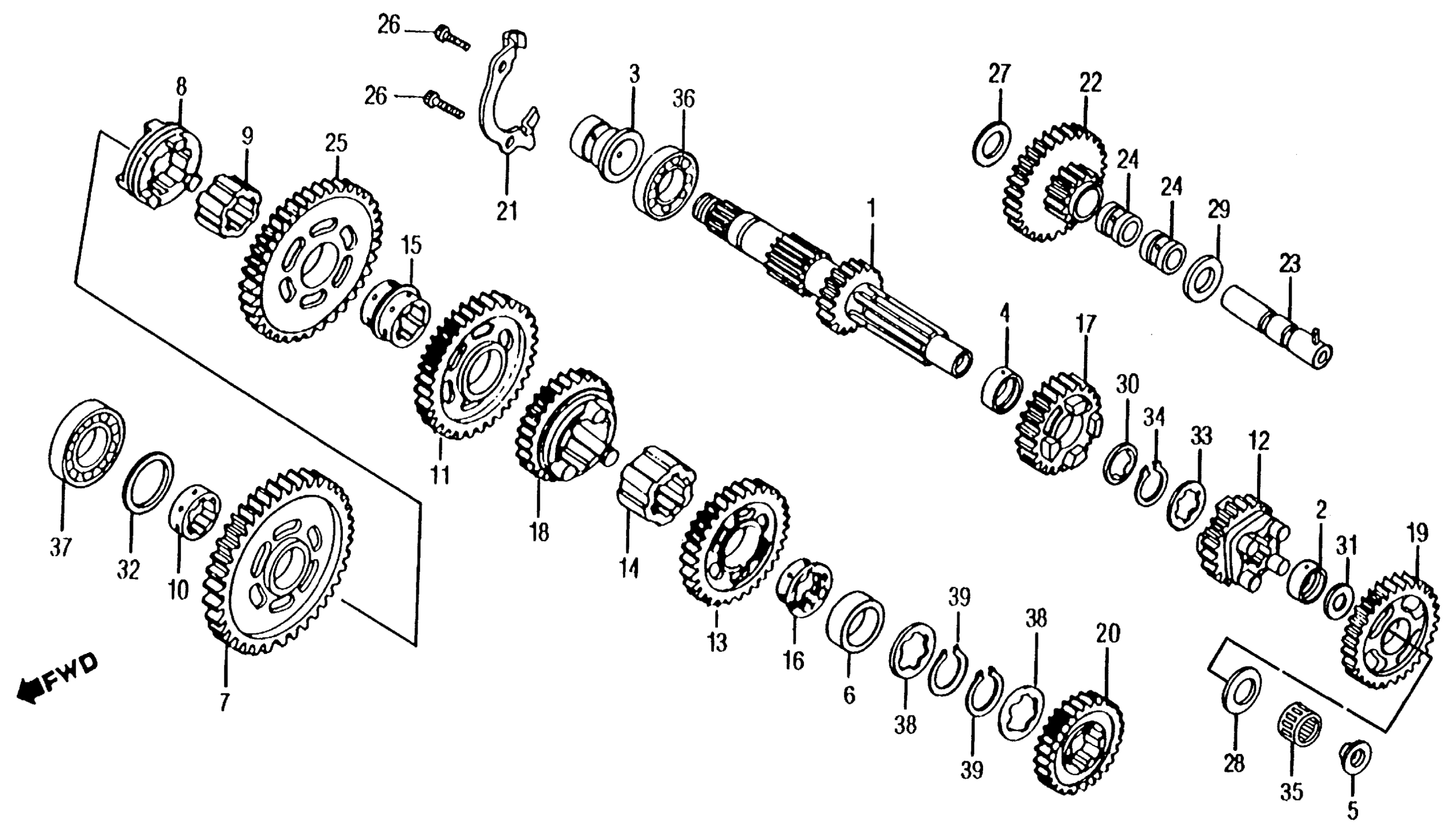

Honda ATC250ESA (86) BIG RED, JPN, VIN# JH3TE040-GM200009 TO JH3TE040-GM228683 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23211-HA0-680

Unavailable

2

BUSH (17MM)

23212-HA0-000

Unavailable

3

BUSH (22MM)

23213-HA0-000

Unavailable

4

BUSH A (22MM)

23214-HA0-000

$17.03

5

PLATE, OIL GUIDE (NOT AVAILABLE)

23219-HA0-000

Unavailable

6

COLLAR, COUNTERSHAFT

23224-HA0-680

Unavailable

7

GEAR, COUNTERSHAFT FIRST (49T) This part replaces 23411-HA0-000.

23411-HN0-670

Unavailable

7

GEAR, COUNTERSHAFT FIRST (49T) This part replaces 23411-HA0-770.

23411-HN0-670

Unavailable

7

GEAR, COUNTERSHAFT FIRST (49T) This part replaces 23411-HC4-000.

23411-HN0-670

Unavailable

8

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HA0-000

Unavailable

9

COLLAR, SPLINE This part replaces 23413-HA0-000.

23413-HA7-670

Unavailable

9

COLLAR, SPLINE

23413-HA7-670

Unavailable

10

BUSH, SPLINE (25MM)

23414-HA0-000

$22.78

11

GEAR, COUNTERSHAFT SECOND (43T) This part replaces 23431-HC4-000.

23431-HN0-670

Unavailable

11

GEAR, COUNTERSHAFT SECOND (43T)

23431-HN0-670

Unavailable

11

GEAR, COUNTERSHAFT SECOND (43T) This part replaces 23431-HA0-680.

23431-HN0-670

Unavailable

12

GEAR, MAINSHAFT THIRD (23T)

23441-HA0-000

Unavailable

13

GEAR, COUNTERSHAFT THIRD (37T) (NOT AVAILABLE) This part replaces 23451-HA0-000.

23451-HA7-770

Unavailable

13

GEAR, COUNTERSHAFT THIRD (37T)

23451-HA7-770

Unavailable

14

COLLAR, SPLINE

23453-HA0-000

Unavailable

15

BUSH A, SPLINE (25MM)

23454-HA0-000

$34.18

16

BUSH B, SPLINE (25MM) (NOT AVAILABLE)

23455-HA0-000

Unavailable

17

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE) This part replaces 23461-HA0-000.

23461-HA7-770

Unavailable

17

GEAR, MAINSHAFT FOURTH (28T)

23461-HA7-770

Unavailable

18

GEAR, COUNTERSHAFT FOURTH (33T)

23471-HA0-000

Unavailable

19

GEAR, MAINSHAFT FIFTH (32T) (NOT AVAILABLE)

23481-HA0-000

Unavailable

20

GEAR, COUNTERSHAFT FIFTH (29T)

23491-HA0-000

Unavailable

21

PLATE, BEARING SETTING

23521-HA0-000

$14.85

22

GEAR, REVERSE IDLE (34-17T)

23721-HA0-000

Unavailable

23

SHAFT, REVERSE IDLE

23730-HA0-680

Unavailable

24

BUSH, REVERSE IDLE GEAR

23732-HA0-000

Unavailable

25

GEAR, COUNTERSHAFT REVERSE (44T) This part replaces 23751-HA0-000.

23751-HA0-770

Unavailable

25

GEAR, COUNTERSHAFT REVERSE (44T)

23751-HA0-770

Unavailable

26

BOLT, SOCKET (6X16)

96600-06016-10

$4.07

26

BOLT, SOCKET (6X16) This part replaces 96700-06016-10.

96600-06016-10

$4.07

27

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

28

WASHER, THRUST (17MM)

90403-HA0-000

$6.51

29

WASHER, PLAIN (14MM)

90412-HA0-000

$9.34

30

WASHER, LOCK

90432-KF0-000

$9.63

31

WASHER, THRUST (17MM)

90452-178-000

$4.17

32

WASHER, THRUST (20MM)

90454-HA0-000

Unavailable

33

WASHER, SPLINE (22MM)

90464-KE8-000

$4.20

34

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

35

BEARING, NEEDLE (17MM)

91001-HA0-004

Unavailable

36

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-008.

91005-KS4-003

$40.44

36

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$40.44

37

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
