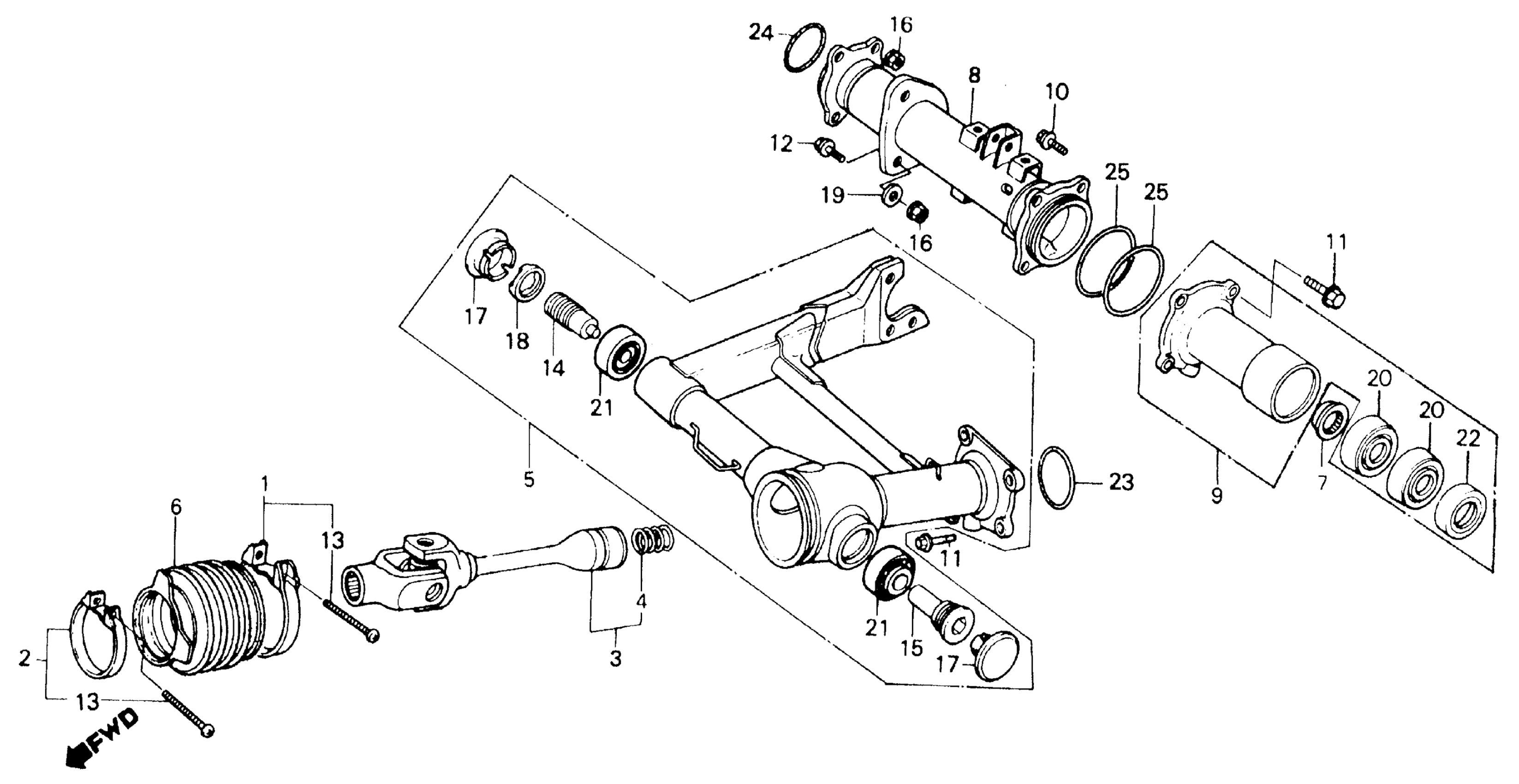

Honda ATC250ESA (86) BIG RED, JPN, VIN# JH3TE040-GM200009 TO JH3TE040-GM228683 SWINGARM 86,87 Diagram

#

Description
Price

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 17256-HA0-680.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 90652-GHB-860.

95018-86250

Unavailable

1

BAND ASSY., BOOT JOINT (85MM)

95018-86250

Unavailable

2

BAND ASSY., BOOT JOINT (75MM) (NOT AVAILABLE)

17258-HA0-680

$6.94

3

JOINT, YOKE

40200-HA0-680

Unavailable

4

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

5

SWINGARM ASSY., RR. (NOT AVAILABLE)

52100-HA0-680

Unavailable

6

BOOT, JOINT

52101-HA0-680

Unavailable

7

STOPPER, BEARING

52112-HA0-000

$16.79

8

HOUSING, RR. AXLE

52130-HA0-680

Unavailable

9

HOUSING ASSY., L. PIPE This part replaces 52140-HA0-680.

52140-HA0-770

Unavailable

9

HOUSING ASSY., L. PIPE

52140-HA0-770

Unavailable

10

BOLT, SPECIAL (10MM) (NOT AVAILABLE) | Use up to Frame SN GM227046 This part replaces 90105-HA0-000.

90109-HA0-681

Unavailable

10

BOLT, SPECIAL (10MM) (NOT AVAILABLE) This part replaces 90105-HA0-010.

90109-HA0-681

Unavailable

11

BOLT, FLANGE (8X28) This part replaces 90108-HA0-680.

90131-KAN-850

Unavailable

11

BOLT, FLANGE (8X28)

90131-KAN-850

Unavailable

12

BOLT, SPECIAL (10MM) (NOT AVAILABLE) | Use up to Frame SN GM227046 This part replaces 90109-HA0-680.

90109-HA0-681

Unavailable

12

BOLT, SPECIAL (10MM)

90109-HA0-681

Unavailable

13

SCREW, PAN (5X32) (NOT AVAILABLE)

90113-HA0-680

Unavailable

14

BOLT, R. SWINGARM PIVOT

90121-HA0-000

Unavailable

15

BOLT, L. RR. SWINGARM PIVOT

90122-MB0-000

Unavailable

16

NUT, U (10MM)

90304-GE8-003

$3.67

17

CAP, LOCK NUT

90312-HA0-000

$11.72

18

NUT, RR. SWINGARM PIVOT

90355-469-000

$17.54

19

WASHER, PLAIN (10MM)

90401-437-000

$2.67

20

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$43.95

21

BEARING, TAPER ROLLER (30203J)

91066-HA0-681

$50.43

22

OIL SEAL (42X58X10)

91255-HA0-681

$20.36

23

O-RING (58.5X2) This part replaces 91302-HA2-000.

91308-500-010

$11.86

23

O-RING (58.5X2) This part replaces 91302-506-000.

91308-500-010

$11.86

23

O-RING (58.5X2)

91308-500-010

$11.86

23

O-RING (58.5X2) This part replaces 91308-504-000.

91308-500-010

$11.86

24

O-RING (52.5X2)

91308-HA8-000

Unavailable

25

O-RING, ROTARY CASE

91351-737-752

$5.53
