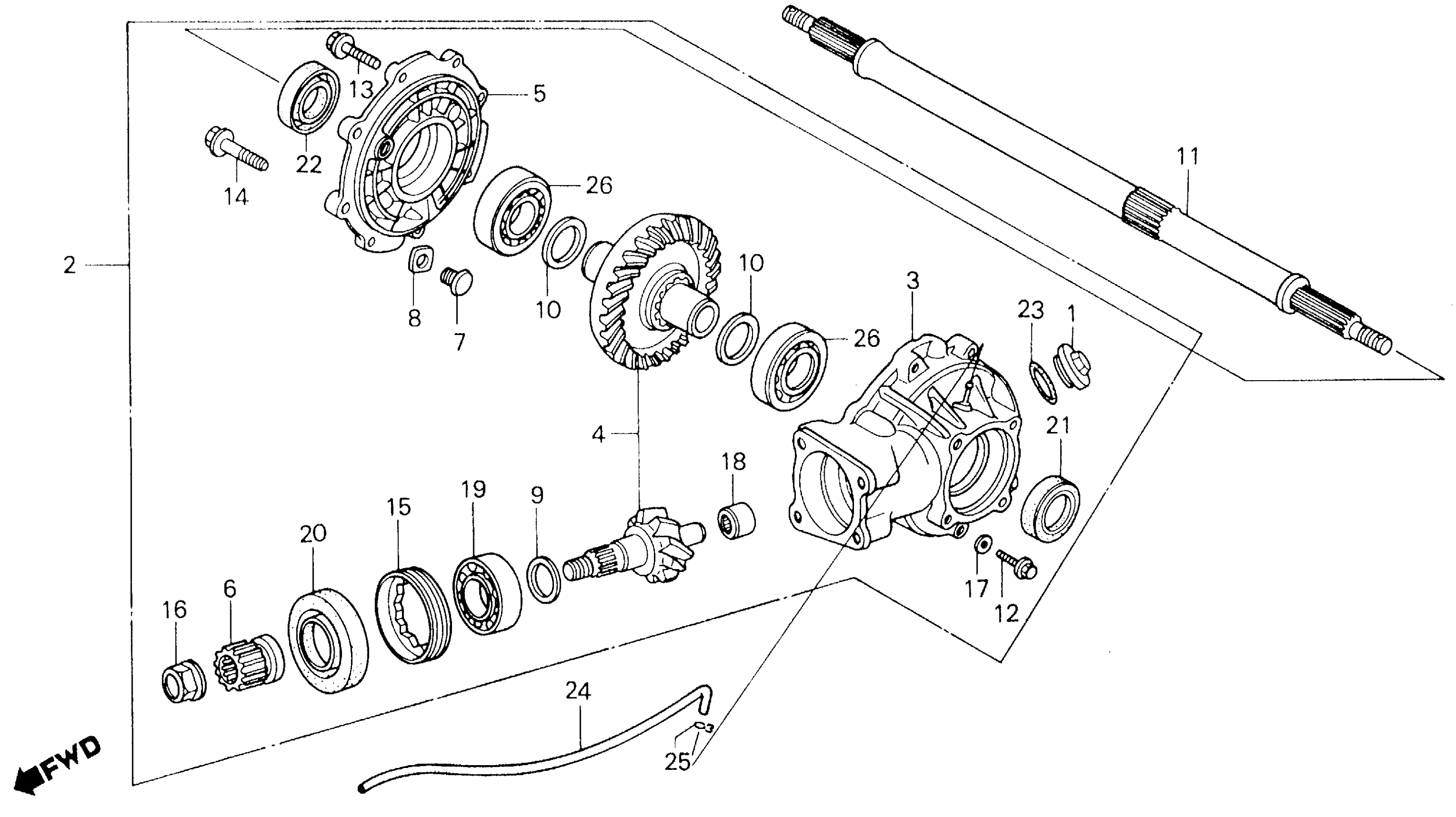

Honda ATC250ESA (86) BIG RED, JPN, VIN# JH3TE040-GM200009 TO JH3TE040-GM228683 FINAL DRIVEN GEAR + REAR AXLE SHAFT Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

CASE ASSY., FINAL GEAR (NOT AVAILABLE)

41300-HA0-680

Unavailable

3

CASE, FINAL GEAR (NOT AVAILABLE)

41301-HA0-680

Unavailable

4

GEAR SET, FINAL

41310-HA0-300

Unavailable

5

COVER, FINAL GEAR CASE (NOT AVAILABLE)

41321-HA0-680

Unavailable

6

JOINT, PINION

41411-HA0-000

Unavailable

7

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

8

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

8

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

9

SHIM A, PINION GEAR (1.82)

41451-HA0-000

$8.03

9

SHIM B, PINION GEAR (1.88)

41452-HA0-000

Unavailable

9

SHIM C, PINION GEAR (1.94)

41453-HA0-000

$6.70

9

SHIM D, PINION GEAR (2.00)

41454-HA0-000

$8.03

9

SHIM E, PINION GEAR (2.06)

41455-HA0-000

Unavailable

9

SHIM F, PINION GEAR (2.12)

41456-HA0-000

$6.26

9

SHIM G, PINION GEAR (2.18)

41457-HA0-000

Unavailable

10

SPACER A, RING GEAR (1.82)

41540-HA0-000

$11.84

10

SPACER B, RING GEAR (1.88)

41541-HA0-000

$12.56

10

SPACER C, RING GEAR (1.94)

41542-HA0-000

$12.56

10

SPACER D, RING GEAR (2.00)

41543-HA0-000

$11.84

10

SPACER E, RING GEAR (2.06)

41544-HA0-000

$12.56

10

SPACER F, RING GEAR (2.12)

41545-HA0-000

$11.84

10

SPACER G, RING GEAR (2.18)

41546-HA0-000

$11.84

10

SPACER H, RING GEAR (2.24)

41547-HA0-000

$11.84

10

SPACER I, RING GEAR (2.30)

41548-HA0-000

$11.84

11

AXLE, RR. WHEEL

42311-HA0-680

Unavailable

12

BOLT, SEALING (8MM)

90109-371-000

$2.58

13

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

14

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

15

NUT, LOCK (60MM)

90244-HA0-000

$37.87

16

NUT, HEX. (16MM)

90381-HA0-000

$7.88

17

WASHER (8MM)

90471-580-000

$2.92

18

BEARING, NEEDLE (14X22X16)

91061-HA0-004

Unavailable

19

BEARING, RADIAL BALL (22X56X16)

91061-ME4-004

Unavailable

20

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-003.

91251-HC5-005

$16.83

20

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-013.

91251-HC5-005

$16.83

20

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-014.

91251-HC5-005

$16.83

20

OIL SEAL (38X64X11) (KOYO)

91251-HC5-005

$16.83

21

OIL SEAL (35X49X6) (ARAI)

91252-HA0-003

$15.66

22

OIL SEAL (35X54X6) (NOK) This part replaces 91253-HA0-003.

91253-HA0-004

Unavailable

22

OIL SEAL (35X54X6) (NOK)

91253-HA0-004

Unavailable

23

O-RING (30.8MM)

91302-001-020

$3.75

24

BULK HOSE, FUEL (3.5X3000) (3.5X940)

95001-35003-60M

$20.85

25

CLIP, TUBE (B7)

95002-02070

$1.80

26

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05
