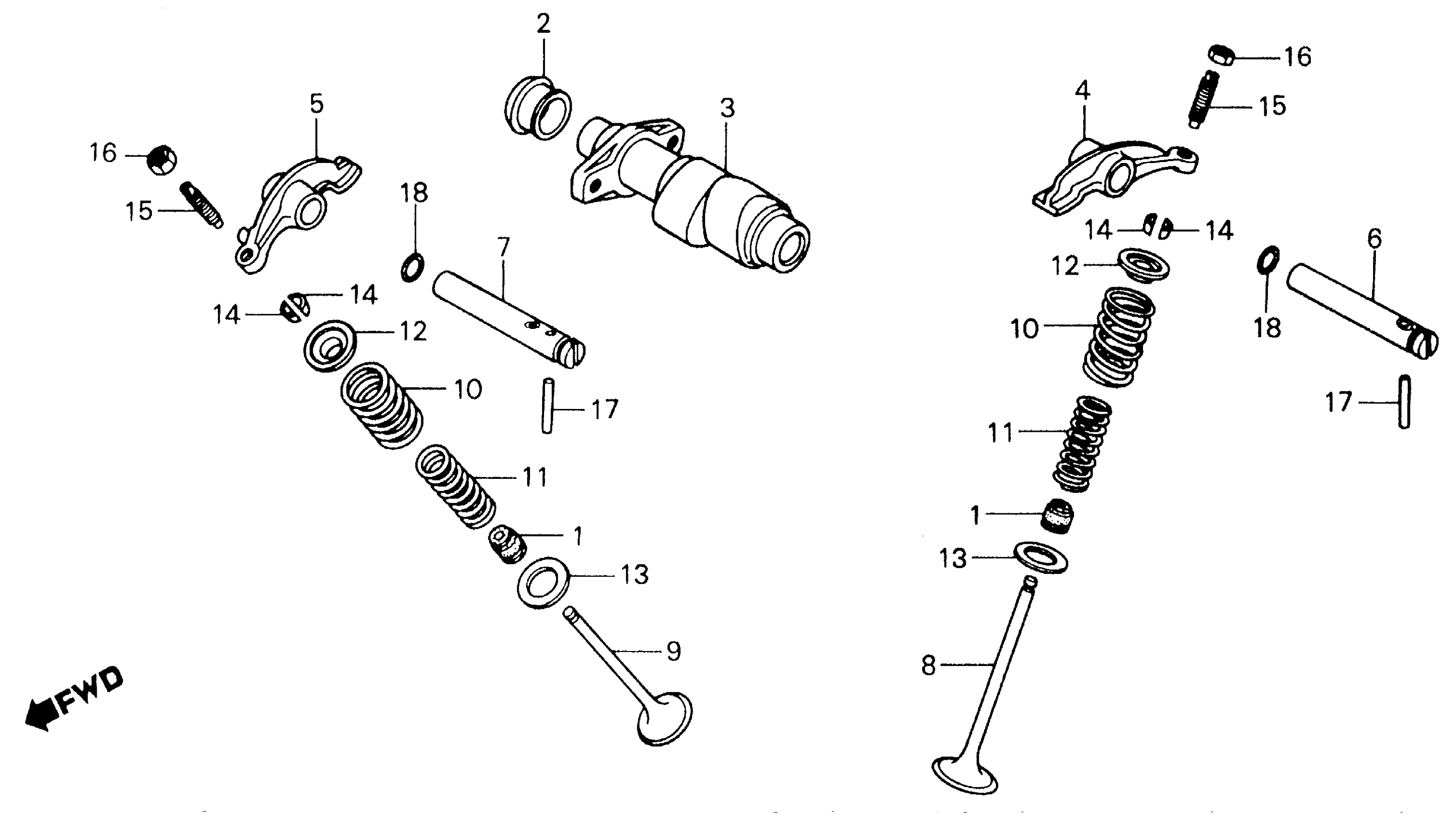

Honda ATC250ESA (86) BIG RED, JPN, VIN# JH3TE040-GM200009 TO JH3TE040-GM228683 CAMSHAFT Diagram

SEAL, VALVE STEM

12209-KL4-005

$7.81

CAP, CYLINDER HEAD SIDE

12312-HA0-000

Unavailable

CAMSHAFT

14101-HA0-000

Unavailable

ARM, IN. VALVE ROCKER

14431-HA0-000

Unavailable

ARM, EX. VALVE ROCKER

14441-HA0-000

Unavailable

SHAFT, IN. ROCKER ARM

14455-HA0-000

Unavailable

SHAFT, EX. ROCKER ARM

14456-HA0-000

Unavailable

VALVE, IN.

14711-HA0-003

Unavailable

VALVE, EX.

14721-HA0-003

$69.95

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-HA0-003

Unavailable

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-HA0-003

Unavailable

RETAINER, VALVE SPRING

14771-KE5-000

$11.72

SEAT, VALVE SPRING

14775-KE5-000

$4.94

COTTER, VALVE

14781-MB4-000

$3.19

COTTER, VALVE This part replaces 14781-HA5-003.

14781-MB4-000

$3.19

SCREW, TAPPET ADJ.

90012-415-000

$6.05

NUT, TAPPET ADJ. This part replaces 90205-300-000.

90206-250-000

$2.94

NUT, TAPPET ADJ.

90206-250-000

$2.94

PIN, DOWEL (5X38)

91102-HA0-000

$4.96

O-RING (7.7X2.5)

91303-428-003

$1.90
