- ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846
TAILLIGHT + TOOL BOX

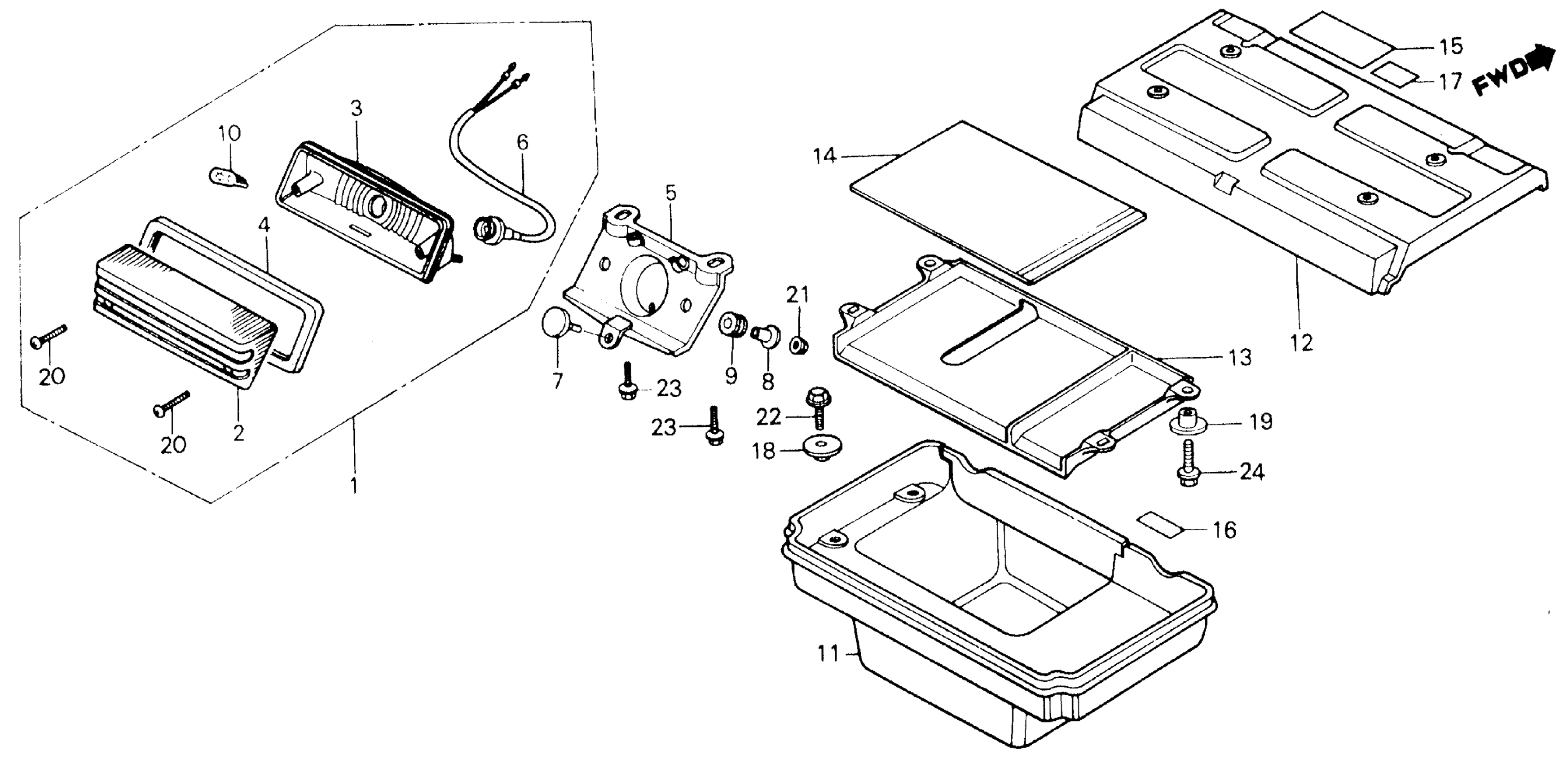

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 TAILLIGHT + TOOL BOX Diagram
#
Description
Price
1
TAILLIGHT ASSY. | Use up to Frame SN FM087101 This part replaces 33700-HA0-003.
33700-HA0-013
Unavailable
1
TAILLIGHT ASSY.
33700-HA0-013
Unavailable
3
BASE, TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN FM087101 This part replaces 33703-HA0-003.
33703-HA0-013
Unavailable
3
BASE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN FM087102
33703-HA0-013
Unavailable
4
GASKET, TAILLIGHT (NOT AVAILABLE)
33704-HA0-003
Unavailable
5
BRACKET, TAILLIGHT (NOT AVAILABLE)
33705-HA0-003
Unavailable
6
SOCKET, TAILLIGHT (NOT AVAILABLE)
33706-HA0-003
Unavailable
7
RUBBER, STOPPER
33707-HA0-000
Unavailable
8
COLLAR, TAILLIGHT MOUNTING
33712-965-000
Unavailable
11
BOX, LUGGAGE | Use up to Frame SN FM093628 This part replaces 80210-HA0-003.
80210-HA0-023
Unavailable
11
BOX, LUGGAGE | Use up to Frame SN FM098351 This part replaces 80210-HA0-013.
80210-HA0-023
Unavailable
11
BOX, LUGGAGE
80210-HA0-023
Unavailable
12
LID, LUGGAGE BOX (NOT AVAILABLE) This part replaces 80211-HA0-003.
80211-HA0-681
Unavailable
15
LABEL, OPERATOR WARNING (NOT AVAILABLE)
87510-VM5-000
Unavailable
16
LABEL, LUGGAGE BOX (NOT AVAILABLE)
87513-HA0-000
Unavailable
18
WASHER (6X20)
90505-HA0-000
Unavailable
