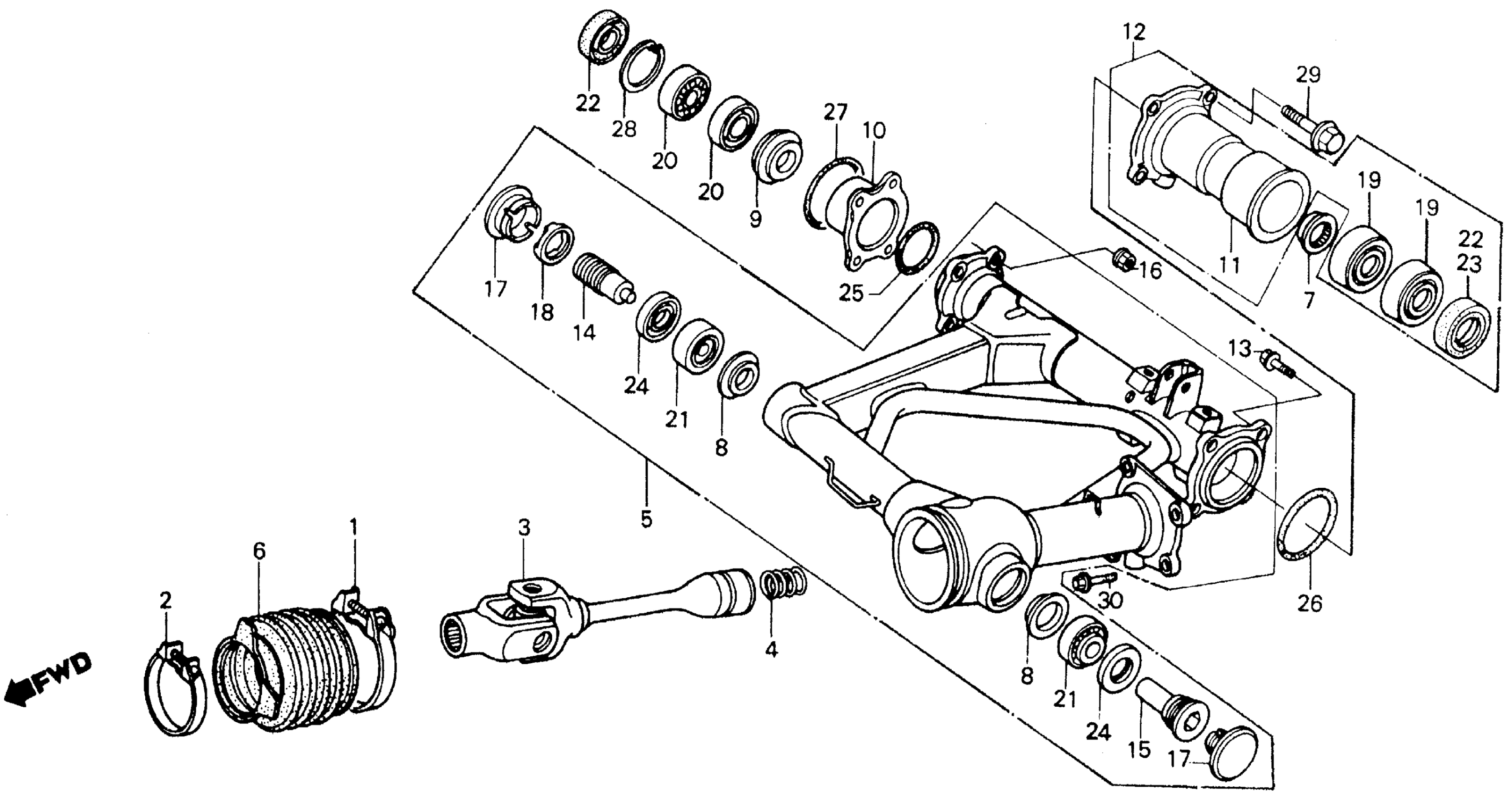

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 SWINGARM + PROPELLER SHAFT 85 Diagram

#

Description
Price

1

BAND, AIR CLEANER CONNECTING TUBE (86) | Use up to Frame SN FM085539 This part replaces 17256-HA0-000.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 17256-HA0-010.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 17256-HA0-680.

95018-86250

Unavailable

1

BAND, AIR CLEANER CONNECTING TUBE (86) This part replaces 90652-GHB-860.

95018-86250

Unavailable

1

BAND ASSY., BOOT JOINT (83MM)

95018-86250

Unavailable

2

BAND ASSY., BOOT JOINT (75MM) (NOT AVAILABLE) | Use up to Frame SN FM085539 This part replaces 17258-HA0-000.

17258-HA0-680

$6.94

2

BAND ASSY., BOOT JOINT (75MM) (NOT AVAILABLE) | Use from Frame SN FM085540 This part replaces 17258-HA0-010.

17258-HA0-680

$6.94

3

JOINT, YOKE | Use up to Frame SN FM049522 This part replaces 40200-HA0-003.

40200-HA0-680

Unavailable

3

JOINT, YOKE This part replaces 40200-HA0-013.

40200-HA0-680

Unavailable

3

JOINT, YOKE

40200-HA0-680

Unavailable

4

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

5

SWINGARM ASSY., RR.

52100-HA0-000

Unavailable

6

BOOT, JOINT | Use up to Frame SN FM085539 This part replaces 52101-HA0-000.

52101-HA0-680

Unavailable

6

BOOT, JOINT This part replaces 52101-HA0-010.

52101-HA0-680

Unavailable

6

BOOT, JOINT

52101-HA0-680

Unavailable

7

STOPPER, BEARING

52112-HA0-000

$16.79

8

HOLDER, RR. SWINGARM GREASE

52112-MA1-300

$7.04

9

STOPPER, R. BEARING

52113-HA0-000

Unavailable

10

HOLDER, BEARING

52114-HA0-000

Unavailable

11

HOUSING, L. PIPE (NOT AVAILABLE) | Use up to Frame SN FM095161 This part replaces 52120-HA0-000.

52120-HA0-010

Unavailable

11

HOUSING, L. PIPE (NOT AVAILABLE) | Use from Frame SN FM095162

52120-HA0-010

Unavailable

12

PIPE, L. HOUSING | Use up to Frame SN FM086537

52130-HA0-000

Unavailable

12

PIPE, L. HOUSING (NOT AVAILABLE) | Use from Frame SN FM086538 to FM095161 This part replaces 52130-HA0-010.

52130-HA0-020

Unavailable

12

PIPE, L. HOUSING (NOT AVAILABLE) | Use from Frame SN FM095162

52130-HA0-020

Unavailable

13

BOLT, SPECIAL (10MM) | Use up to Frame SN FM057902

90038-ME9-000

$4.72

13

BOLT, SPECIAL (10MM) (NOT AVAILABLE) | Use from Frame SN FM057903 This part replaces 90105-HA0-000.

90109-HA0-681

Unavailable

13

BOLT, SPECIAL (10MM) (NOT AVAILABLE) | Use from Frame SN FM057903 This part replaces 90105-HA0-010.

90109-HA0-681

Unavailable

14

BOLT, R. SWINGARM PIVOT

90121-HA0-000

Unavailable

15

BOLT, L. RR. SWINGARM PIVOT

90122-MB0-000

Unavailable

16

NUT, U (10MM)

90304-GE8-003

$3.67

17

CAP, LOCK NUT | Use from Frame SN FM053743

90312-HA0-000

$11.72

17

CAP, R. LOCK NUT | Use up to Frame SN FM053742

90312-MB0-700

$18.22

18

NUT, RR. SWINGARM PIVOT

90355-469-000

$17.54

19

BEARING, RADIAL BALL (32X58X13)

91055-HA0-003

Unavailable

20

BEARING, RADIAL BALL

91057-HA0-000

$36.77

21

BEARING (30203J)

91066-MC7-004

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use up to Frame SN FM086537

91254-HA0-003

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use from Frame SN FM086538

91254-HA0-003

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use up to Frame SN FM086537 This part replaces 91254-HA0-004.

91254-HA0-003

Unavailable

22

OIL SEAL (42X58X8) (ARAI) | Use from Frame SN FM086538 This part replaces 91254-HA0-004.

91254-HA0-003

Unavailable

23

DUST SEAL (42X58X11) | Use from Frame SN FM086538

91255-HA0-003

Unavailable

24

DUST SEAL (26X40X5)

91268-463-003

$6.61

25

O-RING (54X2)

91307-MB0-003

$3.23

26

O-RING, ROTARY CASE | Use from Frame SN FM095162 This part replaces 91351-737-751.

91351-737-752

$5.53

26

O-RING, ROTARY CASE | Use from Frame SN FM095162

91351-737-752

$5.53

27

O-RING (68X2)

91304-MN4-004

Unavailable

27

O-RING (68X2) (NOT AVAILABLE) This part replaces 91358-HA0-003.

91304-MN4-004

Unavailable

28

CIRCLIP (INNER) (58MM)

94520-58000

$3.13

29

BOLT, FLANGE (8X25) | Use from Frame SN FM057903

95701-08025-00

$1.79

29

BOLT, FLANGE (8X25) | Use up to Frame SN FM057902

95701-08025-08

$1.49

29

BOLT, FLANGE (8X25) | Use from Frame SN FM057903 This part replaces 95800-08025-00.

95701-08025-00

$1.79

29

BOLT, FLANGE (8X25) | Use up to Frame SN FM057902 This part replaces 95800-08025-08.

95701-08025-08

$1.49

29

BOLT, FLANGE (8X25) | Use from Frame SN FM057903 This part replaces 95801-08025-00.

95701-08025-00

$1.79

29

BOLT, FLANGE (8X25) | Use up to Frame SN FM057902 This part replaces 95801-08025-08.

95701-08025-08

$1.49

30

BOLT, FLANGE (8X28)

95801-08028-08

$2.19

30

BOLT, FLANGE (8X28) This part replaces 95822-08028-08.

95801-08028-08

$2.19
