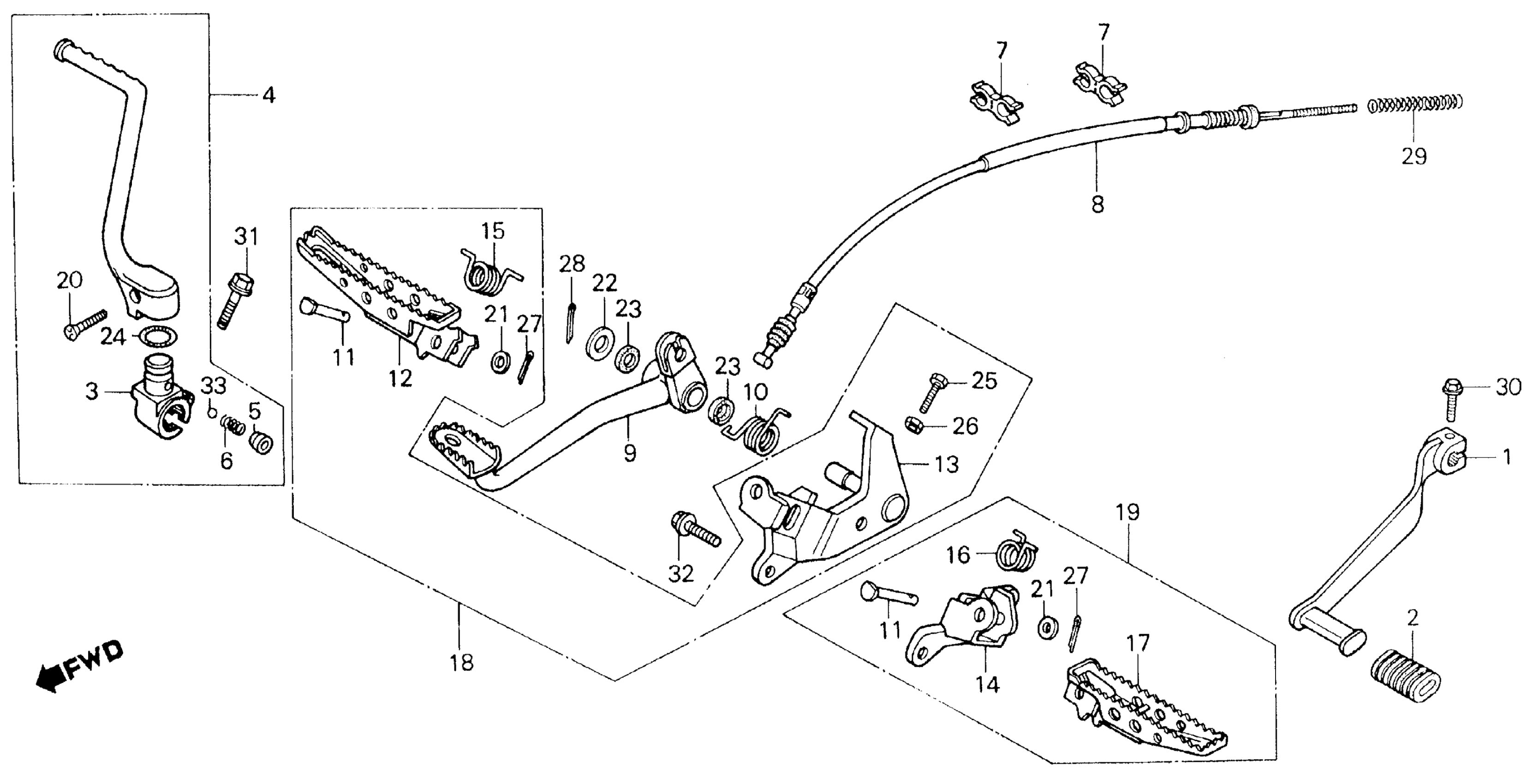

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 STEP + PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT | Use up to Frame SN FM104072 This part replaces 24700-HA0-000.

24700-HA0-680

Unavailable

1

PEDAL, GEARSHIFT This part replaces 24700-HA0-010.

24700-HA0-680

Unavailable

1

PEDAL, GEARSHIFT

24700-HA0-680

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

3

JOINT, KICK ARM

28241-HA0-000

Unavailable

4

ARM ASSY., KICK STARTER

28300-HA0-000

Unavailable

5

PLUG, KICK ARM

28302-965-000

$2.59

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

7

CLAMP, IGNITION WIRE

32802-MB2-000

Unavailable

8

CABLE, FOOT BRAKE

43470-HA0-000

Unavailable

9

PEDAL, BRAKE (NOT AVAILABLE) This part replaces 46500-HA0-000.

46500-HA6-000

Unavailable

10

SPRING, BRAKE PEDAL

46514-HA0-000

Unavailable

11

PIN, STEP JOINT (NOT AVAILABLE) This part replaces 50603-964-670.

50603-HA0-680

Unavailable

12

STEP, R. (NOT AVAILABLE) This part replaces 50610-964-670.

50610-HA0-770

Unavailable

13

PLATE, R. STEP (NOT AVAILABLE)

50615-HA0-000

Unavailable

14

PLATE, L. STEP

50616-HA0-000

Unavailable

15

SPRING, R. STEP RETURN This part replaces 50617-964-000.

50617-HA0-680

Unavailable

15

SPRING, R. STEP RETURN

50617-HA0-680

Unavailable

16

SPRING, L. STEP RETURN This part replaces 50618-964-000.

50618-HA0-680

Unavailable

16

SPRING, L. STEP RETURN

50618-HA0-680

Unavailable

17

STEP, L. (NOT AVAILABLE) This part replaces 50620-964-670.

50620-HA0-770

Unavailable

18

ARM ASSY., R. STEP (NOT AVAILABLE) This part replaces 50630-HA0-000.

50630-HA0-770

Unavailable

19

ARM ASSY., L. STEP (NOT AVAILABLE) This part replaces 50640-HA0-000.

50640-HA0-770

Unavailable

20

SCREW (6X28)

90104-965-003

Unavailable

21

WASHER, THRUST (8MM)

90450-147-000

$1.80

22

WASHER (17.5MM)

90512-303-000

$1.77

23

DUST SEAL (17X23X3)

91206-968-003

$3.69

24

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

25

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

28

PIN, COTTER (3.0X45)

94201-30450

$1.49

29

SPRING, RR. BRAKE ROD | Use from Frame SN FM070492

43467-HA0-000

Unavailable

29

SPRING A, BRAKE ROD | Use up to Frame SN FM070491

95014-73100

$1.49

30

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

30

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

31

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

31

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

32

BOLT, FLANGE (10X35) This part replaces 95800-10035-00.

95801-10035-00

$2.30

32

BOLT, FLANGE (10X35)

95801-10035-00

$2.30

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
