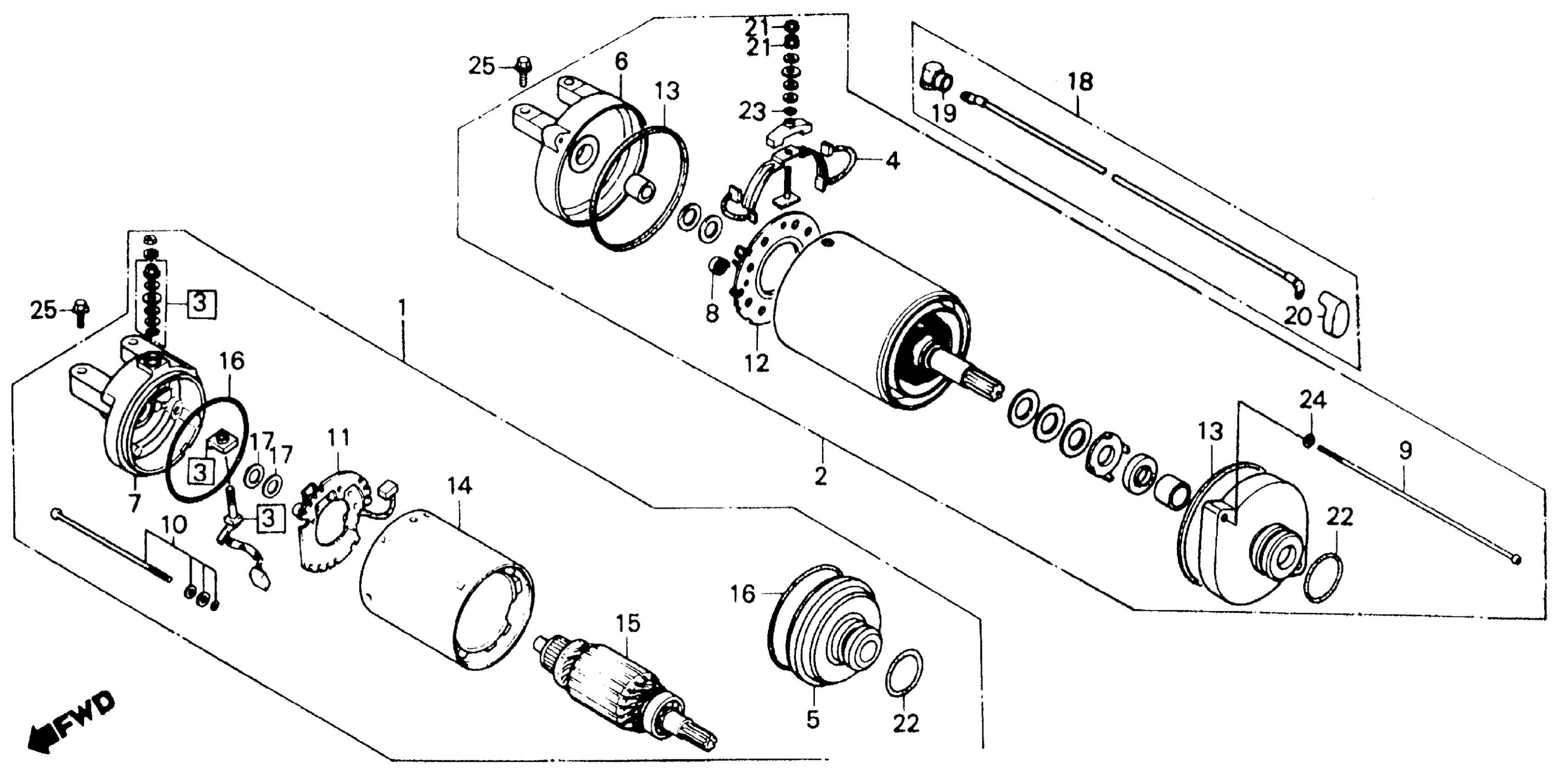

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 STARTER MOTOR Diagram

MOTOR ASSY., STARTER (DENSO) This part replaces 31200-HA0-004.

31200-HA0-682

Unavailable

MOTOR ASSY., STARTER (DENSO)

31200-HA0-682

Unavailable

TERMINAL SET, BRUSH

31201-HA0-004

Unavailable

BRACKET, FR.

31202-HA0-682

Unavailable

BRACKET, RR. (NOT AVAILABLE)

31203-HA0-682

Unavailable

BOLT, THROUGH (NOT AVAILABLE)

31205-HA0-682

Unavailable

PLATE, BRUSH HOLDER This part replaces 31206-HA0-004.

31231-ZA1-003

$24.13

YOKE

31210-HA0-682

Unavailable

ARMATURE

31211-HA0-682

Unavailable

O-RING

31212-HA0-682

Unavailable

WASHER (NOT AVAILABLE)

31214-HA0-682

Unavailable

CABLE, STARTER MOTOR

32402-HA0-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

COVER A, MAGNETIC SWITCH (NOT AVAILABLE)

32412-443-900

Unavailable

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
