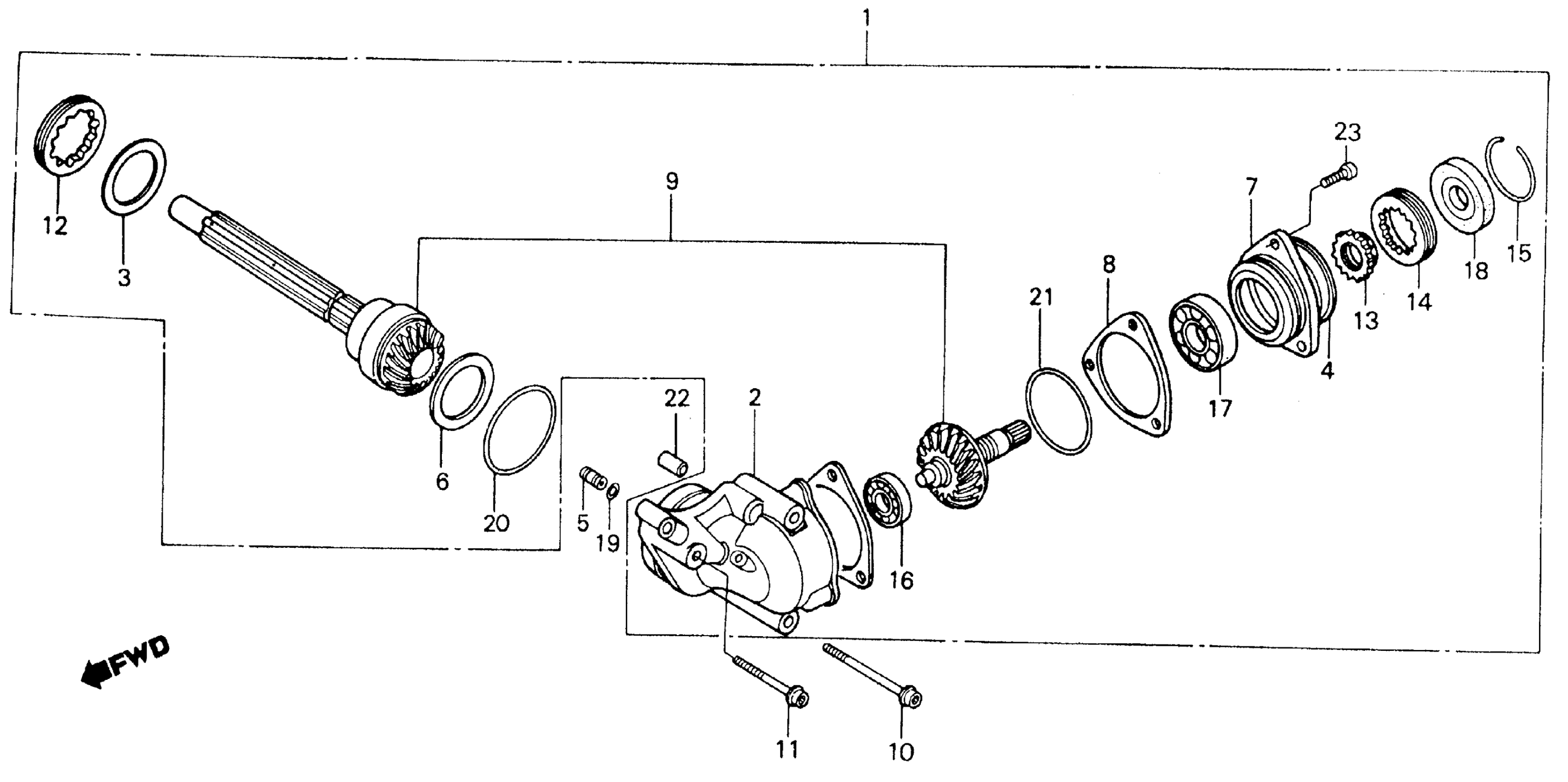

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 SIDE GEAR CASE Diagram

#

Description
Price

1

CASE ASSY., SIDE GEAR

21100-HA0-000

Unavailable

2

CASE, SIDE GEAR (NOT AVAILABLE)

21200-HA0-000

Unavailable

3

SPRING A, LOCK NUT

21210-MF5-003

$15.72

4

SPRING B, LOCK NUT

21211-MF5-003

Unavailable

5

ORIFICE, SIDE GEAR CASE (NOT AVAILABLE)

21215-HA0-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.80)

21331-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.85)

21332-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.90)

21333-MF5-000

$13.66

6

SHIM, FINAL DRIVESHAFT (0.95)

21334-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (1.00)

21335-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (1.05)

21336-MF5-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (1.10)

21337-MF5-000

Unavailable

7

HOLDER, CROSS BEARING (NOT AVAILABLE) | Use up to Engine SN 5123926 This part replaces 21371-HA0-000.

21371-HA0-010

Unavailable

7

HOLDER, CROSS BEARING (NOT AVAILABLE) | Use from Engine SN 5123927

21371-HA0-010

Unavailable

8

SHIM, CROSS SHAFT (0.20)

21381-HA0-000

$12.69

8

SHIM, CROSS SHAFT (0.25)

21382-HA0-000

Unavailable

8

SHIM, CROSS SHAFT (0.30)

21383-HA0-000

Unavailable

8

SHIM, CROSS SHAFT (0.35)

21384-HA0-000

Unavailable

8

SHIM, CROSS SHAFT (0.40)

21385-HA0-000

Unavailable

8

SHIM, CROSS SHAFT (0.45)

21386-HA0-000

Unavailable

8

SHIM, CROSS SHAFT (0.50)

21387-HA0-000

Unavailable

9

SHAFT SET, CROSS

23200-HA0-305

Unavailable

10

BOLT, FLANGE SOCKET (8X85)

90062-HA0-000

Unavailable

11

BOLT, FLANGE SOCKET (8X55) (NOT AVAILABLE)

90063-HA0-000

Unavailable

12

NUT, LOCK (64MM)

90242-MB0-000

$32.52

13

NUT, LOCK (28MM)

90243-ME5-000

Unavailable

14

NUT, LOCK (60MM)

90244-MF5-000

Unavailable

15

CLIP, OIL SEAL

90601-HA0-000

$6.41

16

BEARING, RADIAL BALL SPECIAL (6302)

91004-HA0-004

Unavailable

17

BEARING, RADIAL BALL (62/28)

91008-MT3-004

$30.16

17

BEARING, RADIAL BALL (62/28) This part replaces 91015-HA0-004.

91008-MT3-004

$30.16

18

OIL SEAL (25X61X8.5) (ARAI)

91205-ME5-003

Unavailable

19

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

19

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

20

O-RING (72X1.9)

91305-MF5-003

$8.85

21

O-RING (70X3.0)

91362-461-000

$6.93

22

PIN, DOWEL (10X16)

94303-10160

$2.34

23

BOLT, SOCKET (8X22) This part replaces 96700-08022-10.

96700-08022-17

$2.02

23

BOLT, SOCKET (8X22)

96700-08022-17

$2.02
