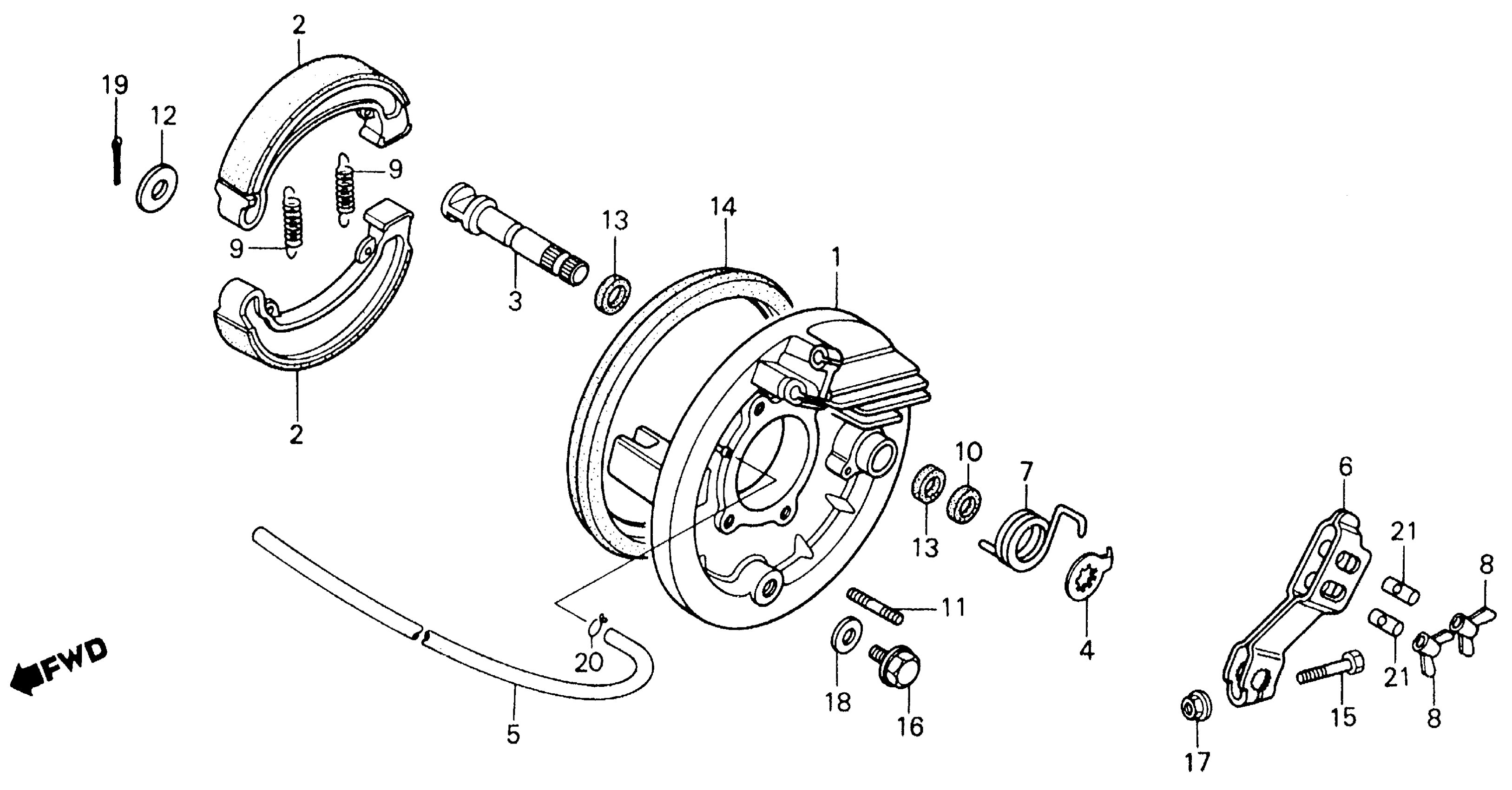

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 REAR BRAKE PANEL 85 Diagram

#

Description
Price

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-671.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-901.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 431A2-KG4-006.

06430-HM5-A80

$36.79

1

PANEL ASSY., R. RR. BRAKE (NOT AVAILABLE)

43100-HA0-000

Unavailable

2

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-003.

43120-KG4-006

Unavailable

2

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

43120-KG4-006

Unavailable

3

CAM, RR. BRAKE (NOT AVAILABLE)

43141-HA0-000

Unavailable

4

INDICATOR, BRAKE (NOT AVAILABLE)

43145-HA0-000

Unavailable

5

TUBE, BREATHER

43146-HA0-000

Unavailable

6

ARM, R. RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN FM068898 This part replaces 43410-HA0-000.

43410-HA0-010

Unavailable

6

ARM, R. RR. BRAKE (NOT AVAILABLE) | Use from Frame SN FM068899

43410-HA0-010

Unavailable

7

SPRING, RR. BRAKE ARM RETURN

43415-HA0-000

Unavailable

8

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

8

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$9.78

9

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, STUD (10X32)

90151-HA0-003

Unavailable

12

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

13

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

14

DUST SEAL (166X182X18)

91261-HA0-000

Unavailable

15

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

15

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

16

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

17

NUT, FLANGE (6MM)

94050-06000

$1.49

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

19

PIN, COTTER (2.0X22)

94201-20220

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

19

PIN, COTTER (2.0X35)

94201-20350

$1.49

19

PIN, COTTER (2.0X22)

94201-29220

$1.49

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

JOINT, BRAKE ARM

95015-32001

$1.49
