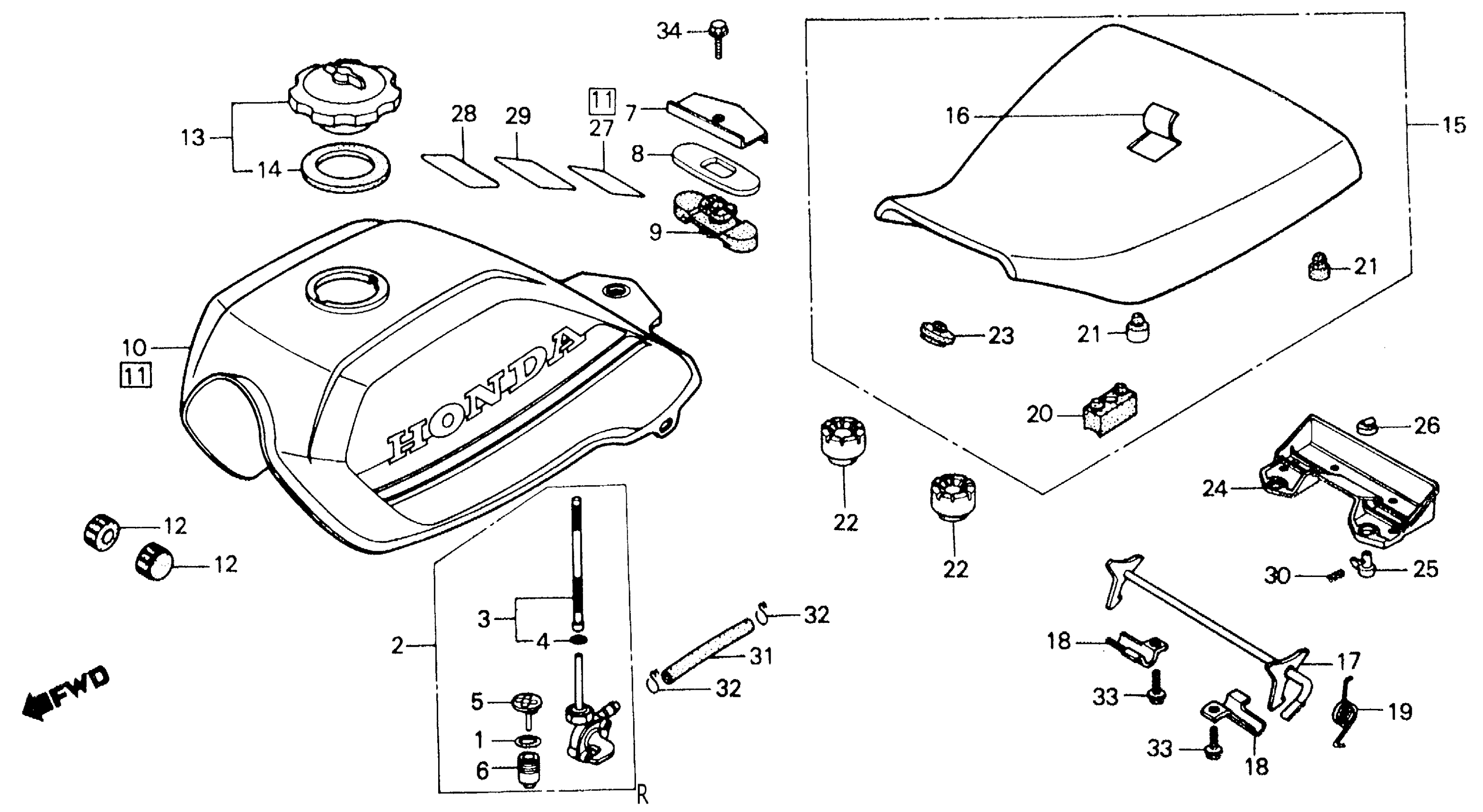

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 FUEL TANK + SEAT Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

2

PETCOCK ASSY. This part replaces 16950-HA0-005.

16950-HC4-840

$77.37

2

PETCOCK ASSY.

16950-HC4-840

$77.37

3

SCREEN SET, FUEL STRAINER

16952-449-751

$32.71

4

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

4

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

5

FILTER, CUP

16959-471-831

$9.35

6

CUP, FUEL STRAINER

16967-MA2-771

$25.08

7

PLATE, RR. TANK (NOT AVAILABLE)

17507-HA0-000

Unavailable

8

RUBBER, RR. TANK (UPPER) (NOT AVAILABLE)

17508-HA0-000

Unavailable

9

RUBBER, RR. TANK (NOT AVAILABLE)

17509-HA0-000

Unavailable

10

TANK, FUEL This part replaces 17510-HA0-000.

17510-HA0-682

Unavailable

12

RUBBER, FR. TANK

17611-437-000

$6.63

13

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

13

FUEL FILL CAP (TOYOSHA) | Use up to Frame SN FM101462 This part replaces 17620-VM5-000.

17620-HC3-505

Unavailable

13

FUEL FILL CAP (TOYOSHA) | Use up to Frame SN FM101462 This part replaces 17620-VM6-003.

17620-HC3-505

Unavailable

13

FUEL FILL CAP (TOYOSHA) This part replaces 17620-VM6-013.

17620-HC3-505

Unavailable

13

FUEL FILL CAP (TOYOSHA) | Use up to Frame SN FM101462 This part replaces 17620-958-681.

17620-HC3-505

Unavailable

13

FUEL FILL CAP (TOYOSHA) | Use up to Frame SN FM101462 This part replaces 17620-968-003.

17620-HC3-505

Unavailable

14

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

14

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

15

SEAT (NOT AVAILABLE)

77100-HA0-000

Unavailable

16

COVER COMP., SEAT This part replaces 77101-HA0-000.

77101-HA0-505

Unavailable

17

LEVER, SEAT LOCK (NOT AVAILABLE)

77105-HA0-000

Unavailable

18

BRACKET, LOCK LEVER

77106-958-000

Unavailable

19

SPRING, SEAT LOCK

77107-HA0-000

$3.92

20

RUBBER, SEAT SETTING

77204-292-000

$9.11

21

RUBBER, SEAT SETTING

77206-426-000

$5.05

22

RUBBER, SEAT SETTING

77207-HA0-000

$7.14

23

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

24

HOLDER ASSY., TOOL (NOT AVAILABLE)

83500-HA0-000

Unavailable

25

BODY, KNOB

83507-HA0-000

Unavailable

26

STOPPER, KEY BODY (NOT AVAILABLE)

83508-HA0-000

Unavailable

27

LABEL, USE CAUTION (NOT AVAILABLE)

87504-968-680

Unavailable

28

MARK, TIRE CAUTION (NOT AVAILABLE)

87533-HA0-000

Unavailable

29

MARK, DRIVE CAUTION (NOT AVAILABLE)

87561-VM6-000

Unavailable

30

PIN, SPRING (8X20)

94305-20161

Unavailable

31

BULK HOSE, FUEL (7.5X8000) (7.3X150) | Use up to Frame SN FM026052

95001-75008-60M

$103.82

31

BULK HOSE, FUEL (7.5X8000) (7.3X160) | Use from Frame SN FM026053

95001-75008-60M

$103.82

32

CLIP, TUBE (B12)

95002-02120

$2.00

33

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

33

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

34

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

34

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
