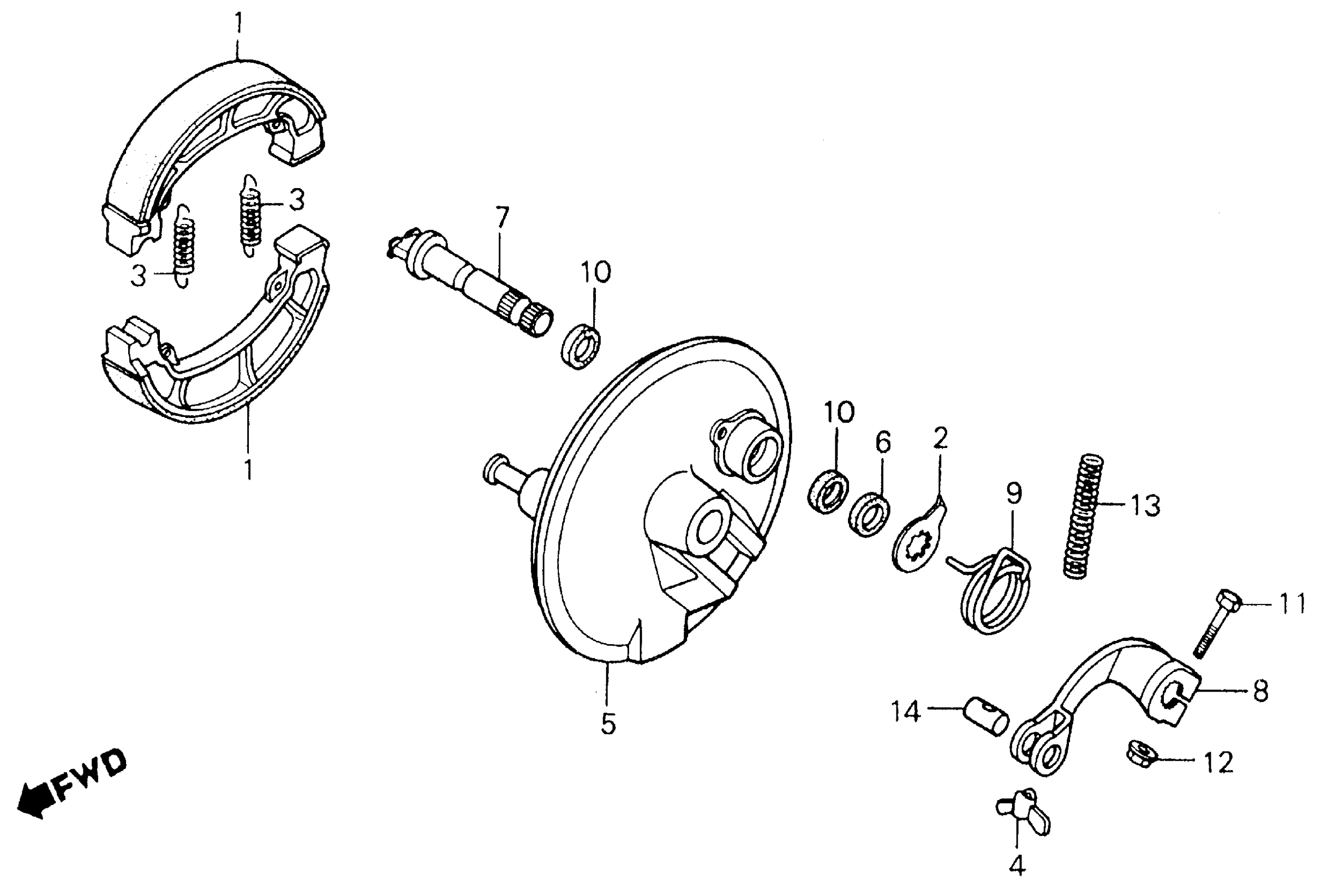

Honda ATC250ESA (85) BIG RED, JPN, VIN# JH3TE040-FM000004 TO JH3TE040-FM109846 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE This part replaces 06430-HF1-911.

06430-HF7-A30

$32.48

SHOE SET, BRAKE

06430-HF7-A30

$32.48

SHOE SET, BRAKE This part replaces 06430-HF7-J20.

06430-HF7-A30

$32.48

SHOE SET, BRAKE This part replaces 06430-HF7-000.

06430-HF7-A30

$32.48

SHOE SET, BRAKE This part replaces 06430-968-405.

06430-HF7-A30

$32.48

SHOE SET, BRAKE This part replaces 431A2-968-681.

06430-HF7-A30

$32.48

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$32.48

SHOE SET, BRAKE This part replaces 43120-968-682.

06430-HF7-A30

$32.48

INDICATOR, BRAKE (NOT AVAILABLE)

43145-HA0-000

Unavailable

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

NUT, BRAKE ADJUST

43459-434-000

$15.27

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-HA0-000

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

CAM, FR. BRAKE (NOT AVAILABLE)

45141-HA0-000

Unavailable

ARM, FR. BRAKE This part replaces 45410-HA0-000.

45410-HA0-680

Unavailable

ARM, FR. BRAKE

45410-HA0-680

Unavailable

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45415-HA0-000

Unavailable

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

NUT, FLANGE (6MM)

94050-06000

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49
