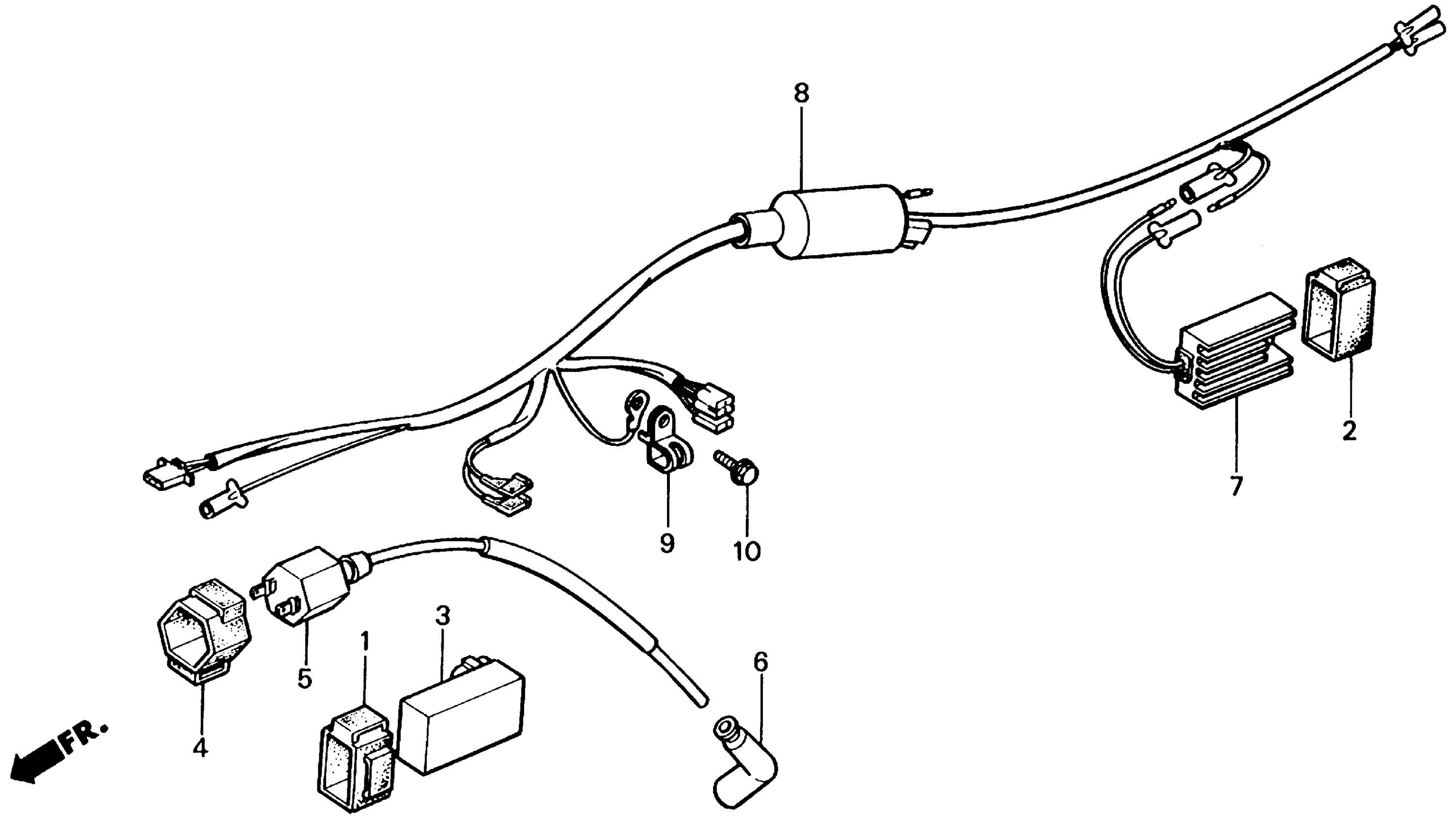

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER, IGNITION CONTROL MODULE

30401-VM0-000

$4.02

2

RUBBER, REGULATOR

30406-HA2-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-HB5-003

Unavailable

4

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

4

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

5

COIL, IGNITION This part replaces 30510-HB5-000.

30510-KT0-405

$70.98

5

COIL, IGNITION

30510-KT0-405

$70.98

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-HB3-003.

30700-HB3-013

$39.43

6

CAP ASSY., NOISE SUPPRESSOR

30700-HB3-013

$39.43

7

REGULATOR, A.C. This part replaces 31410-HB5-670.

31410-KZ1-680

Unavailable

7

REGULATOR, A.C. This part replaces 31410-HB5-671.

31410-KZ1-680

Unavailable

7

REGULATOR, A.C.

31410-KZ1-680

Unavailable

8

WIRE HARNESS (NOT AVAILABLE)

32100-HB5-670

Unavailable

9

CLIP, HARNESS

32102-HB5-300

Unavailable

10

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable
