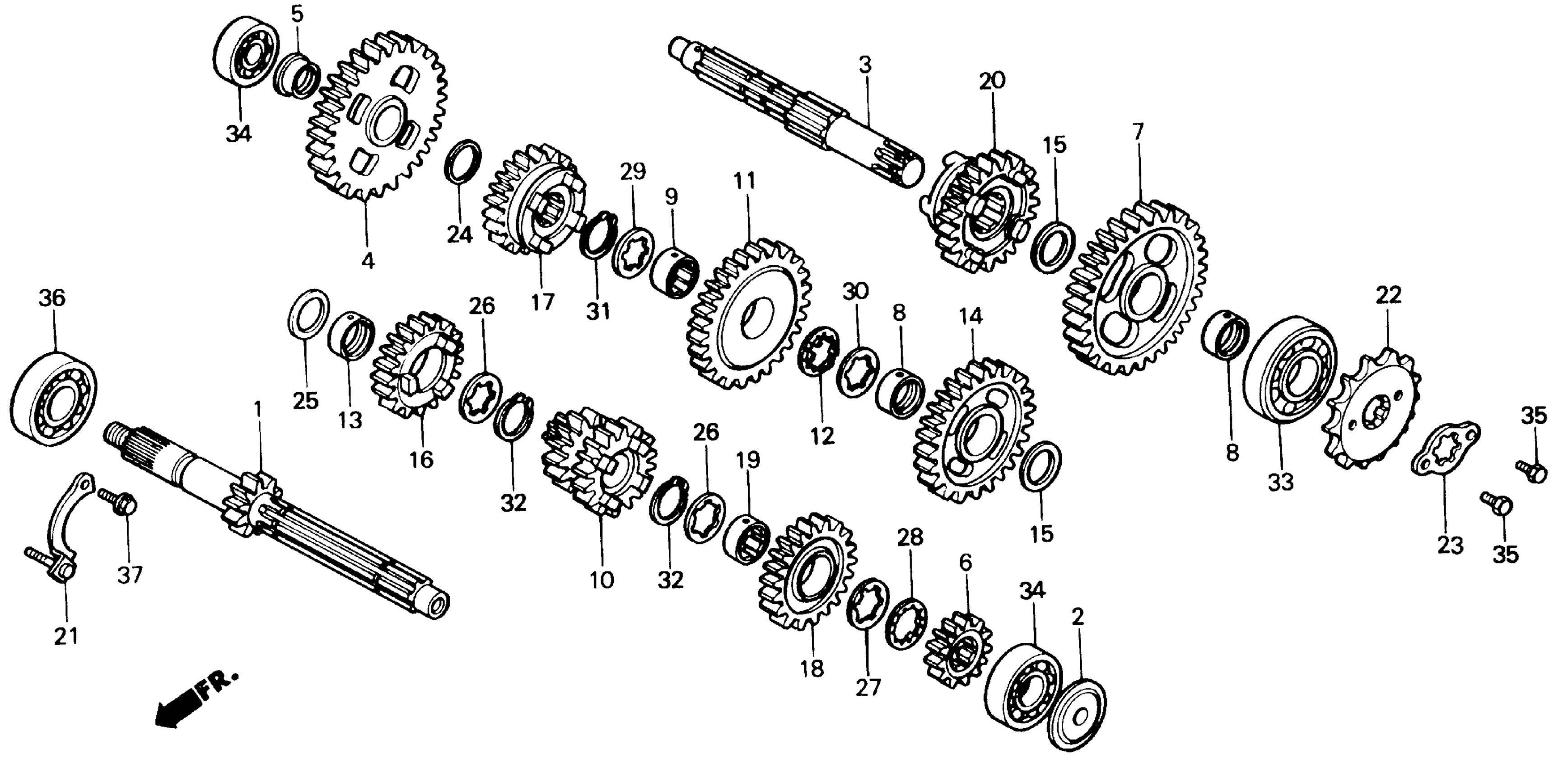

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-HB5-000

Unavailable

2

PLATE, OIL GUIDE

23219-HB3-000

Unavailable

3

COUNTERSHAFT This part replaces 23220-HB5-000.

23220-HB5-010

Unavailable

4

GEAR, COUNTERSHAFT LOW (38T) This part replaces 23411-HB5-000.

23411-HB5-010

Unavailable

4

GEAR, COUNTERSHAFT LOW (38T)

23411-HB5-010

Unavailable

5

BUSH (18MM) This part replaces 23415-HB5-000.

23415-HB5-010

Unavailable

5

BUSH (18MM)

23415-HB5-010

Unavailable

6

GEAR This part replaces 23421-HB5-000.

23421-HB5-010

Unavailable

7

GEAR, COUNTERSHAFT SECOND (35T)

23431-HB5-000

Unavailable

8

BUSH (22MM)

23432-HB5-000

Unavailable

9

BUSH, SPLINE (20X22X8)

23433-HB5-000

Unavailable

10

GEAR, MAINSHAFT THIRD & FOURTH (20T/16T)

23441-HB5-670

Unavailable

11

GEAR, COUNTERSHAFT THIRD (28T)

23451-HB5-670

Unavailable

12

WASHER, LOCK

23456-KA3-000

$5.87

13

BUSH (20MM)

23462-HB3-000

$19.64

14

GEAR, COUNTERSHAFT FOURTH (29T)

23471-HB5-000

Unavailable

15

WASHER (22X1.5)

23472-HB5-000

Unavailable

16

GEAR, MAINSHAFT FIFTH (22T)

23481-HB5-670

Unavailable

17

GEAR, COUNTERSHAFT FIFTH (27T)

23491-HB5-670

Unavailable

18

GEAR, MAINSHAFT TOP (24T)

23501-HB5-000

Unavailable

19

BUSH, SPLINE (20X8.5)

23502-HB5-000

Unavailable

20

GEAR, COUNTERSHAFT TOP (25T) (NOT AVAILABLE)

23511-HB5-000

Unavailable

21

PLATE, BEARING SETTING This part replaces 23521-HB3-000.

23521-KT2-000

Unavailable

21

PLATE, BEARING SETTING

23521-KT2-000

Unavailable

22

SPROCKET, DRIVE (13T)

23801-HB5-000

$52.91

23

PLATE, FIXING

23811-HA5-670

$4.96

23

PLATE, FIXING This part replaces 23811-430-000.

23811-HA5-670

$4.96

24

WASHER (18.2X26X1)

90452-155-000

Unavailable

25

WASHER, THRUST (20MM)

90454-107-000

$1.80

26

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

27

WASHER B, THRUST (20MM) (NOT AVAILABLE)

90461-235-000

Unavailable

28

WASHER, LOCK (20MM) (NOT AVAILABLE)

90462-235-000

Unavailable

29

WASHER, SPLINE (22MM)

90464-HB5-010

Unavailable

30

WASHER, SPLINE (22MM)

90464-KE7-000

Unavailable

31

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

32

SET-RING (20MM)

90605-200-000

$2.92

33

BEARING, BALL (62/22) (KOYO) This part replaces 91004-KK0-003.

91004-KW3-004

$31.42

33

BEARING, BALL (62/22) (KOYO)

91004-KW3-004

$31.42

34

BEARING, RADIAL BALL (6202) This part replaces 91009-HB5-003.

91009-KJ1-003

$15.44

34

BEARING, RADIAL BALL (6202)

91009-KJ1-003

$15.44

35

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

35

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

35

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

36

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

37

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

37

BOLT, FLANGE (6X14) This part replaces 96500-06014-00.

96300-06014-00

$1.49
