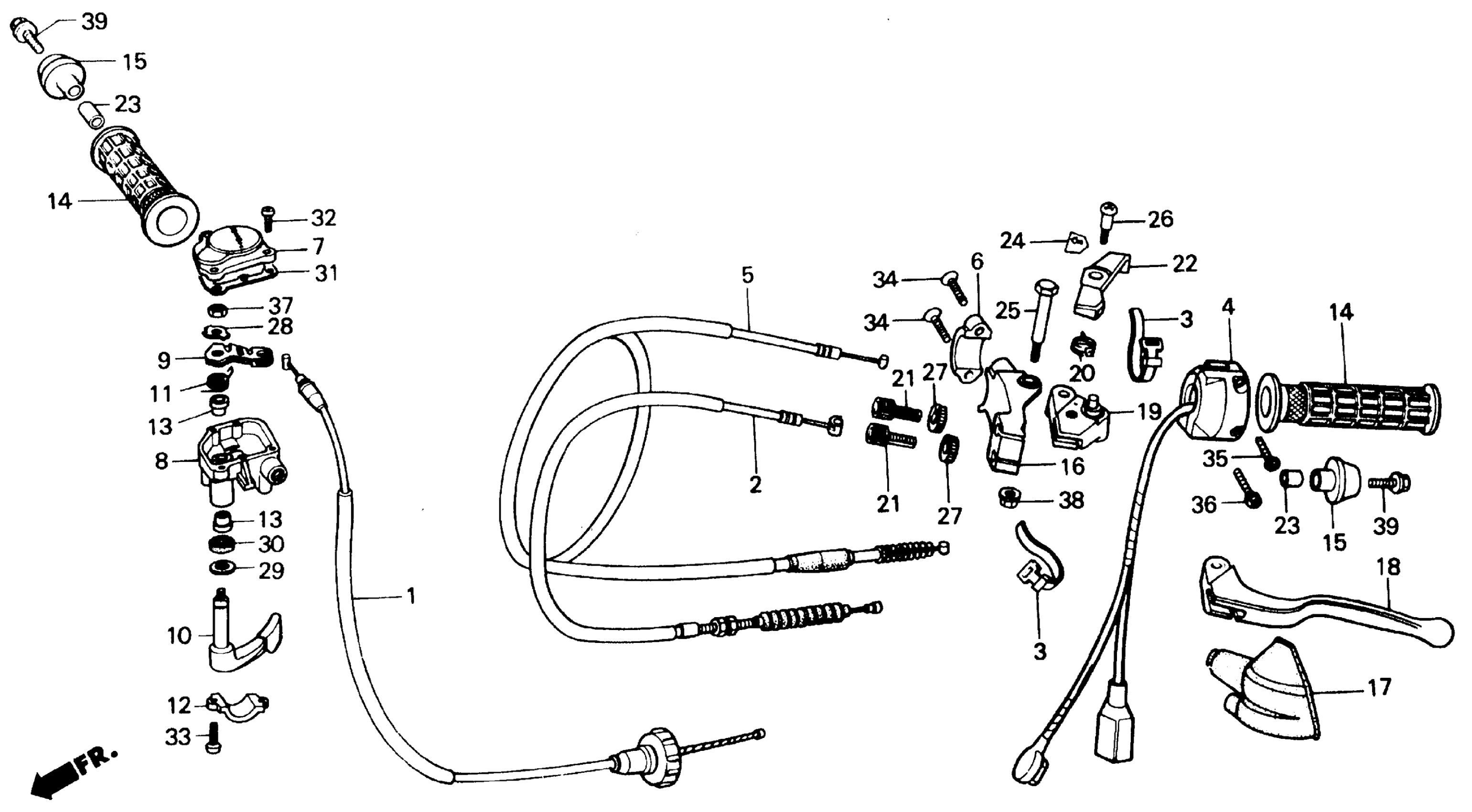

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 SWITCH Diagram

#

Description
Price

1

CABLE SET, THROTTLE (NOT AVAILABLE)

17920-HB5-325

Unavailable

2

CABLE, CLUTCH

22870-HB5-670

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SW, LIGHTING & STOP This part replaces 35200-HB5-010.

35200-HB5-020

Unavailable

5

CABLE, PARKING BRAKE

43455-HB5-000

Unavailable

6

HOLDER, MASTER CYLINDER

45517-961-000

Unavailable

7

COVER, THROTTLE CASE

53141-HA0-010

Unavailable

8

CASE, THROTTLE LEVER

53142-HA0-020

Unavailable

9

ARM, THROTTLE

53144-HA0-010

$7.72

10

LEVER, THROTTLE

53145-HA0-770

$24.05

11

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

12

HOLDER, THROTTLE CASE

53147-965-000

Unavailable

13

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

14

GRIP, HANDLE

53165-958-010

$13.38

15

GUARD, HANDLEBAR END

53167-958-680

$6.40

16

BRACKET, L. HANDLEBAR

53172-961-000

Unavailable

17

COVER, L. HANDLEBAR

53177-HA5-000

$8.76

18

LEVER, L. HANDLEBAR

53178-965-000

Unavailable

19

ARM ASSY., PARKING BRAKE

53180-961-010

Unavailable

20

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

21

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

22

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

23

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

24

MARK, PARKING BRAKE LEVER

87574-HA5-300

$2.13

25

BOLT, HANDLE LEVER PIVOT

90115-HB5-670

Unavailable

26

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

27

NUT, FIXING

90321-315-670

$7.31

28

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

29

WASHER (9X20)

90504-HA0-000

$2.28

30

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

30

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

31

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

32

SCREW, PAN (4X16)

93500-04016-0G

$1.49

33

SCREW, PAN (5X18)

93500-05018-0G

$1.49

34

SCREW, OVAL (6X25)

93700-06025-0G

Unavailable

34

SCREW, OVAL (6X25) This part replaces 93700-06025-07.

93700-06025-0G

Unavailable

35

SCREW-WASHER (5X25)

93892-05025-07

$1.49

36

SCREW-WASHER (5X32)

93892-05032-07

Unavailable

37

NUT, HEX. (6MM)

94002-06000-0S

$1.49

38

NUT, FLANGE (6MM)

94050-06000

$1.49

39

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

39

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
