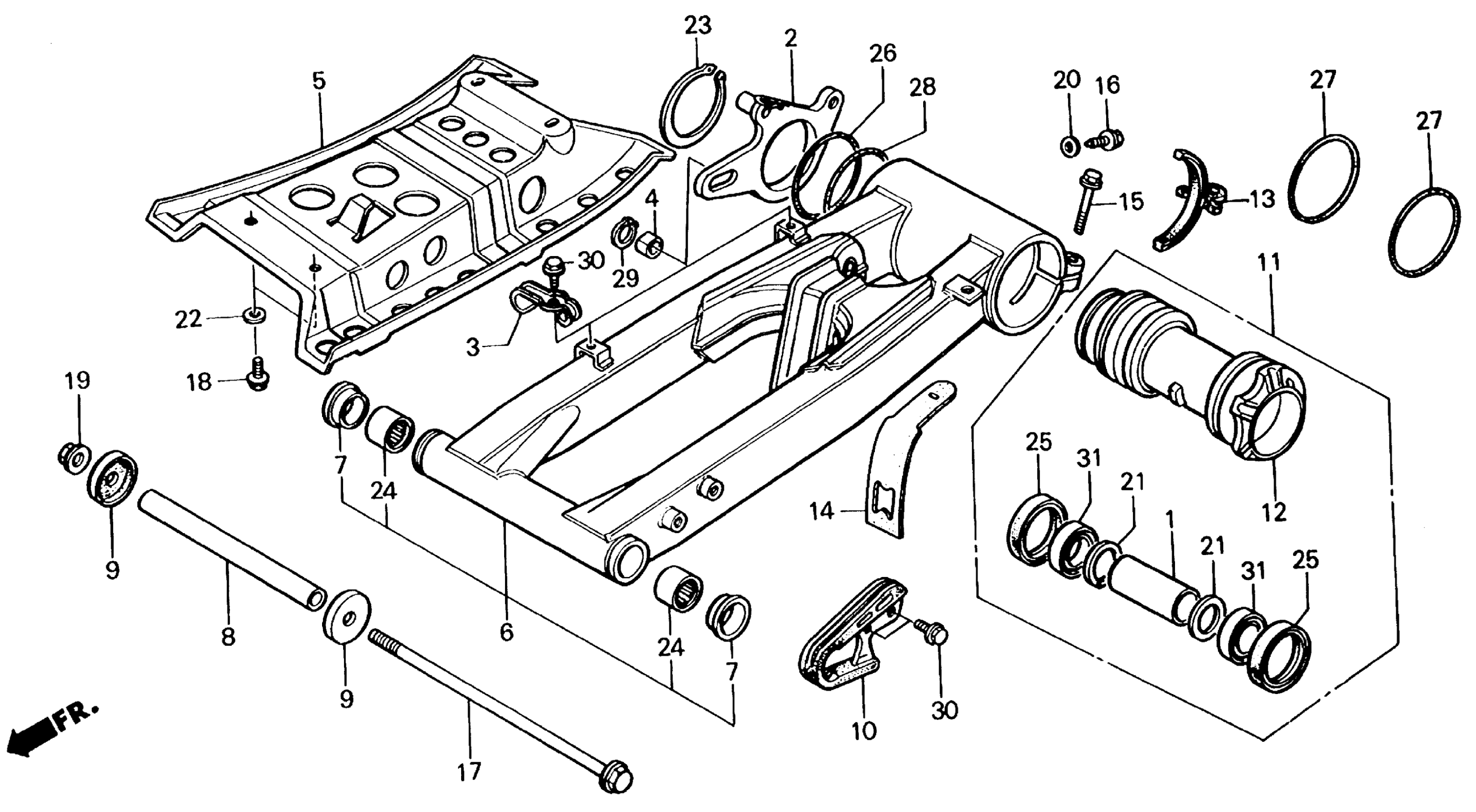

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 SWINGARM Diagram

COLLAR, RR. AXLE

42621-HB5-000

Unavailable

STAY, RR. CALIPER

43211-HB5-000

Unavailable

CLAMP, BRAKE HOSE

43311-965-000

$7.61

BUSH, RR. BRAKE STAY

43483-HB5-670

$8.83

PLATE, SKID

50355-HB5-020

Unavailable

SWINGARM ASSY., RR. (NOT AVAILABLE)

52000-HB5-670

Unavailable

BUSH, PIVOT THRUST

52109-430-300

$16.01

COLLAR, SWINGARM CENTER

52141-HB5-000

Unavailable

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-965-005.

52144-356-005

$17.31

SLIDER, CHAIN

52170-HB5-010

$52.44

HOLDER ASSY., BEARING

52200-HB5-000

Unavailable

HOLDER, BEARING

52201-HB5-000

Unavailable

SEAL, BEARING HOLDER

52202-HB5-000

$12.95

COVER, RR. SHOCK ABSORBER

52403-HB5-000

Unavailable

BOLT, FLANGE (8X32)

90110-KE5-000

Unavailable

BOLT, STOPPER (8MM)

90115-964-003

$3.67

BOLT, SWINGARM PIVOT

90117-HB5-006

Unavailable

BOLT, FLANGE (8X16) This part replaces 90115-HA2-670.

90123-KV0-000

$4.51

BOLT, FLANGE (8X16)

90123-KV0-000

$4.51

NUT, U (14MM)

90305-GE8-003

$3.86

WASHER (8MM)

90481-035-000

$1.87

WASHER, AXLE COLLAR

90501-HB5-000

Unavailable

WASHER (8.5X20)

90526-GB0-930

$2.13

CIRCLIP (OUTER) (70MM)

90665-964-000

$13.19

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

DUST SEAL (44X62X7)

91252-HB5-003

Unavailable

DUST SEAL (44X62X7) This part replaces 91252-HB5-004.

91252-HB5-003

Unavailable

O-RING, ROTARY CASE

91351-737-752

$5.53

O-RING, BEARING HOLDER (76X3)

91353-HA2-003

$6.82

O-RING (69X2)

91302-MS2-003

$4.13

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$4.13

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

BEARING, RADIAL BALL (6007)

96150-60070-10

$25.42
