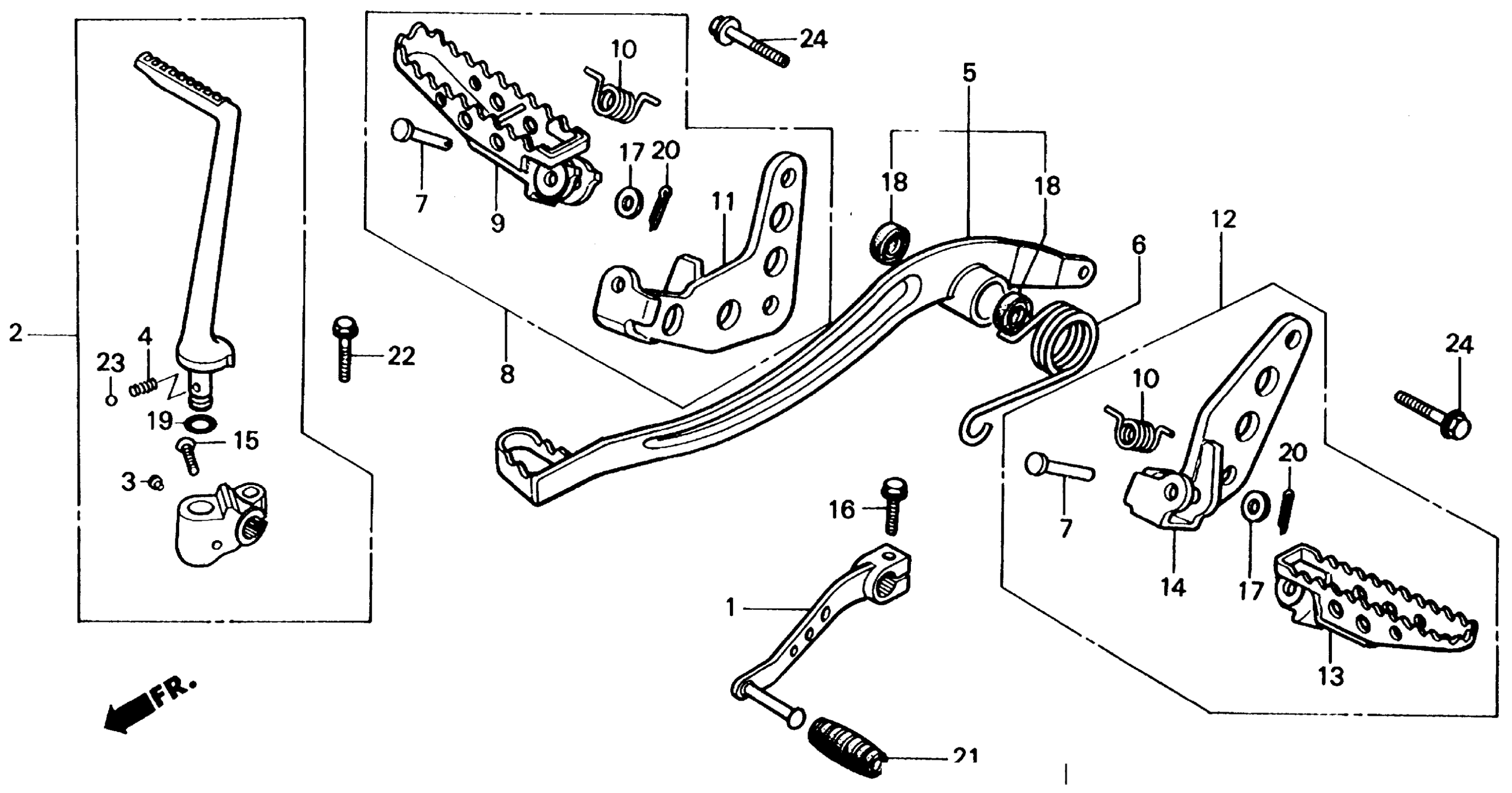

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24701-HB5-670.

24701-GC4-000

Unavailable

2

ARM ASSY., KICK STARTER

28300-HB5-670

Unavailable

3

PLUG, KICK ARM

28302-965-000

$2.59

4

SPRING, KICK STARTER

28333-KK0-000

$2.51

5

PEDAL ASSY., BRAKE

46510-HB5-000

Unavailable

6

SPRING, BRAKE PEDAL

46514-HB5-000

Unavailable

7

PIN, STEP JOINT

50603-HA5-000

Unavailable

8

ARM ASSY., R. STEP (NOT AVAILABLE)

50610-HB5-670

Unavailable

9

STEP, R. (NOT AVAILABLE)

50610-HA2-670

Unavailable

10

SPRING, R. STEP RETURN

50617-HA0-680

Unavailable

11

ARM, R. STEP

50618-HB5-000

Unavailable

12

ARM ASSY., L. STEP

50640-HB5-670

Unavailable

13

STEP, L.

50620-HA2-670

Unavailable

14

ARM, L. FOOTPEG

50648-HB5-000

Unavailable

15

BOLT, KICK ARM

90101-329-000

$3.67

16

BOLT, FLANGE (6X20)

90118-968-000

$4.24

17

WASHER (10.2MM)

90401-430-000

$1.64

18

OIL SEAL (19X25X3)

91206-965-003

Unavailable

19

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

RUBBER, SHIFT PEDAL

95011-40000

$1.49

22

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

22

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

24

BOLT, FLANGE (10X35)

96400-10035-00

$2.25
