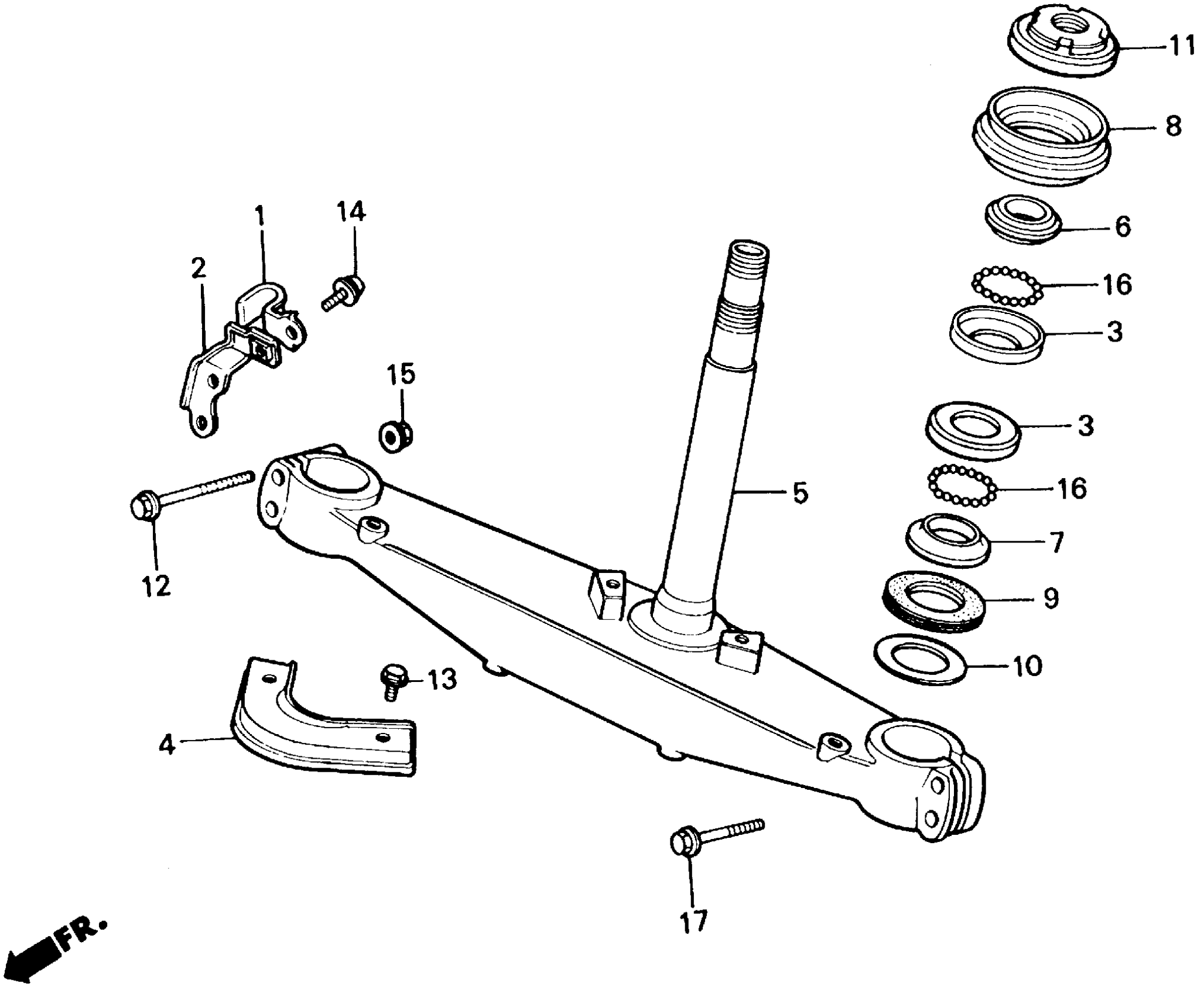

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 STEERING STEM Diagram

CLAMP, BRAKE HOSE

45467-HB5-000

Unavailable

STAY, BRAKE HOSE

45469-HB5-000

Unavailable

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

COVER, HANDLE STOPPER (NOT AVAILABLE)

50341-HA5-670

Unavailable

STEM, STEERING

53200-HB5-010

Unavailable

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$19.80

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

SEAL, HEAD PIPE

53213-961-000

Unavailable

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

THREAD, STEERING HEAD TOP (NOT AVAILABLE)

53220-965-000

Unavailable

BOLT, FLANGE (8X60)

90113-HB5-000

Unavailable

BOLT-WASHER (4X12) (NOT AVAILABLE)

90118-HA5-670

Unavailable

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

NUT, FLANGE (8MM)

94050-08000

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, FLANGE (8X40)

96400-08040-00

$2.02
