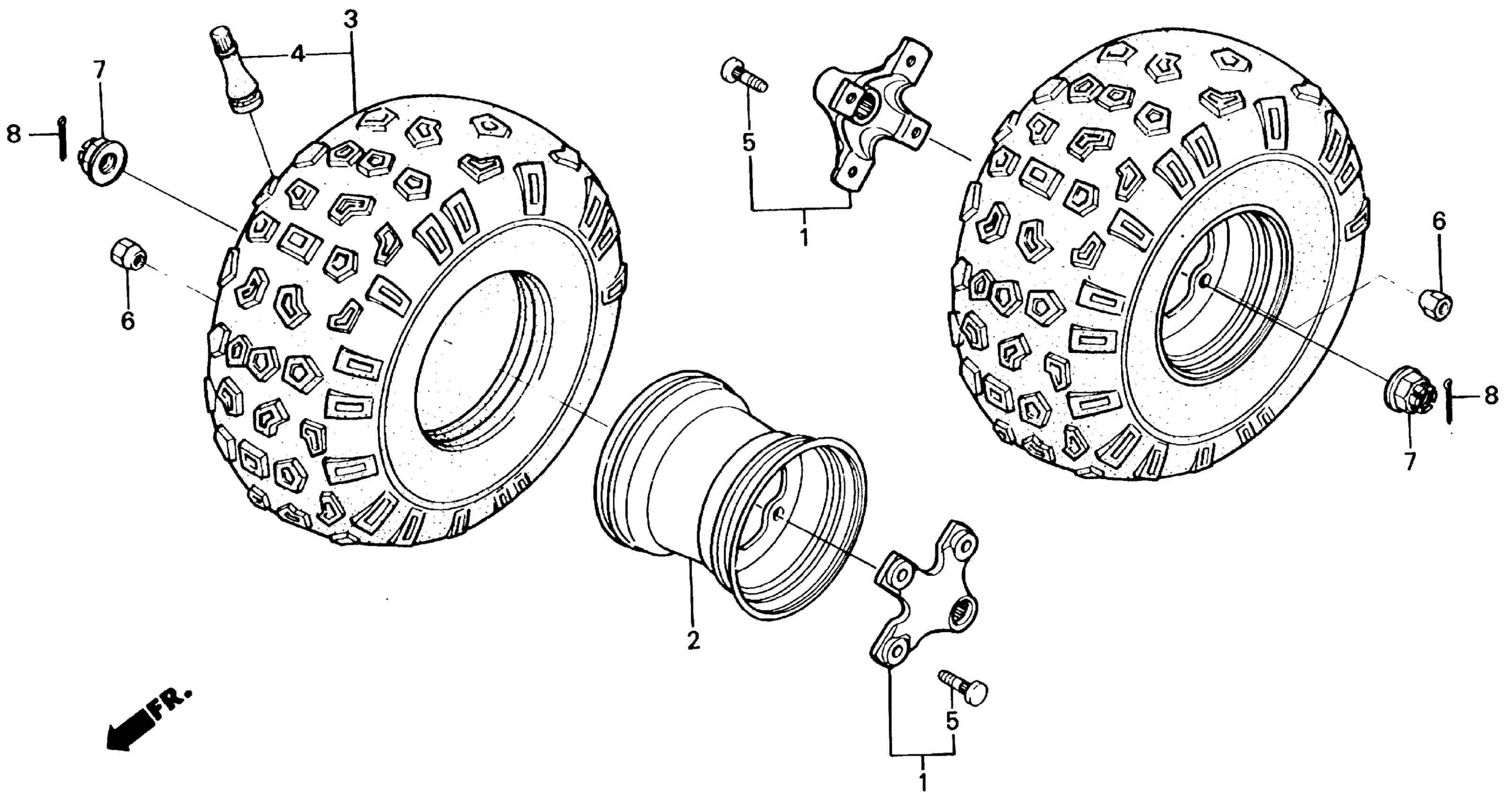

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 REAR WHEEL Diagram

#

Description

Price

1

HUB, RR. WHEEL

42410-HB5-000

Unavailable

2

RIM, RR. WHEEL (9X8.0AT) (DAIDO) This part replaces 42701-HB5-671.

42701-HC0-772

Unavailable

2

RIM, RR. WHEEL (9X8.0AT) (DAIDO) This part replaces 42701-HC0-771.

42701-HC0-772

Unavailable

2

RIM, RR. WHEEL (ENKEI)

42701-HC0-772

Unavailable

3

TIRE ASSY., RR. (22X10-9) (OHTSU) This part replaces 42710-HA5-672.

42710-HA5-672AT

Unavailable

3

TIRE ASSY., RR. (22X10-9) (OHTSU)

42710-HA5-672AT

Unavailable

4

VALVE, RIM

42753-VM0-003

$9.46

5

BOLT, WHEEL (10X36)

90103-HA2-003

$7.89

6

NUT, WHEEL CLIP

90304-HA2-003

$5.36

7

NUT, CASTLE (18MM) This part replaces 90304-HB5-000.

90304-HM5-A80

$6.96

7

NUT, CASTLE (18MM)

90304-HM5-A80

$6.96

8

PIN, COTTER (4.0X30)

94201-40300

$0.96
