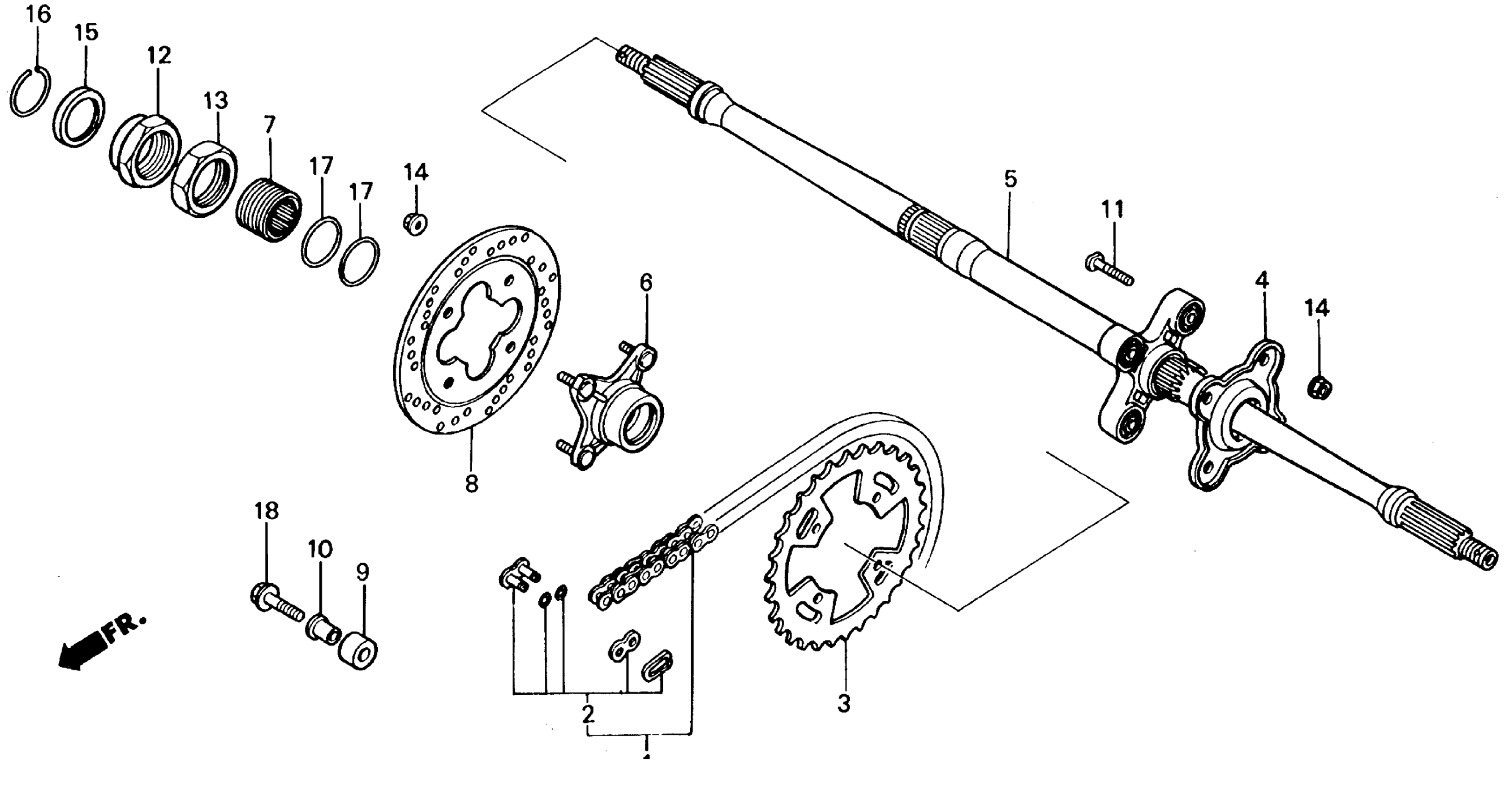

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 REAR WHEEL AXLE Diagram

#

Description

Price

1

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-HB5-671.

405W3-HB9-505

Unavailable

1

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-HB5-672.

405W3-HB9-505

Unavailable

2

MASTER LINK (DAIDO)

40531-HB5-671

Unavailable

2

MASTER LINK (TAKASAGO)

40531-HB5-672

Unavailable

3

SPROCKET, FINAL DRIVEN (38T)

41201-HB5-000

Unavailable

4

PLATE, CHAIN GUIDE

41211-HB5-000

Unavailable

5

AXLE, RR. (NOT AVAILABLE)

42310-HB5-000

Unavailable

6

FLANGE, BRAKE DISK (NOT AVAILABLE)

43120-HB5-010

Unavailable

7

BOLT, RR. AXLE

43127-HB5-000

Unavailable

8

DISK, R. RR. BRAKE

43251-HA5-670

Unavailable

9

ROLLER, CHAIN

52158-HA2-670

Unavailable

10

COLLAR, CHAIN ROLLER

52159-HA2-670

Unavailable

11

BOLT, SPROCKET

90114-HB5-000

Unavailable

12

NUT, AXLE

90308-HB5-010

Unavailable

13

NUT, RR. AXLE LOCK

90309-HB5-000

Unavailable

14

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

14

NUT, FLANGE (8MM)

90309-428-731

$3.35

15

WASHER, AXLE NUT

90530-HB5-000

Unavailable

16

CLIP (OUTER) (32MM)

90651-HB5-000

Unavailable

17

O-RING (35X1.7)

91351-HB5-003

Unavailable

17

O-RING (35X1.7) This part replaces 91351-HB5-004.

91351-HB5-003

Unavailable

18

BOLT, FLANGE (8X35)

96300-08035-00

$1.95
