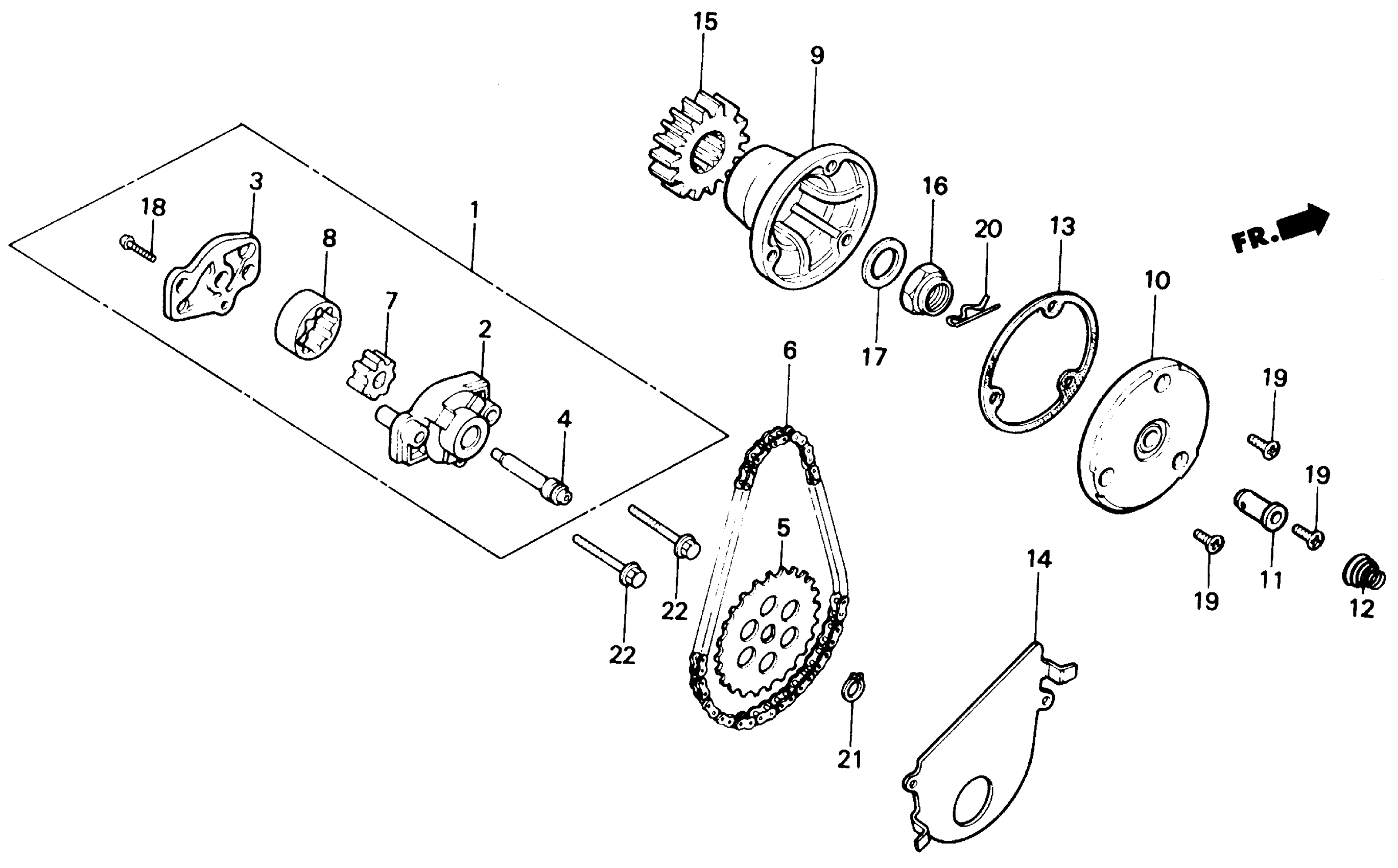

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-HB3-840

Unavailable

1

PUMP ASSY., OIL This part replaces 15100-HB5-000.

15100-HB3-840

Unavailable

2

BODY, OIL PUMP (NOT AVAILABLE)

15101-HB5-000

Unavailable

3

PLATE, OIL PUMP

15116-HB5-000

Unavailable

4

SHAFT, OIL PUMP

15132-HB3-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (28T) This part replaces 15133-HB3-000.

15133-KT2-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (28T)

15133-KT2-000

Unavailable

6

CHAIN, OIL PUMP

15141-HB3-000

Unavailable

7

ROTOR SET, OIL PUMP This part replaces 15331-958-000.

15021-958-000

$35.25

8

ROTOR SET, OIL PUMP This part replaces 15332-958-000.

15021-958-000

$35.25

9

ROTOR, OIL FILTER (NOT AVAILABLE)

15430-HB5-000

Unavailable

10

CAP, OIL FILTER ROTOR (NOT AVAILABLE)

15436-HB5-000

Unavailable

11

THROUGH, OIL (NOT AVAILABLE)

15441-HB5-000

Unavailable

12

SPRING, OIL THROUGH

15446-HB5-000

Unavailable

13

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.56

13

GSKT, OIL FILTER CAP This part replaces 15459-107-000.

15459-K70-630

$3.56

13

GSKT, OIL FILTER CAP This part replaces 15459-107-306.

15459-K70-630

$3.56

14

SEPARATOR, OIL

15711-HB3-000

Unavailable

15

GEAR, PRIMARY DRIVE (23T) (NOT AVAILABLE)

23121-HB5-000

Unavailable

16

NUT, SPECIAL (16MM)

90202-HB5-000

Unavailable

17

WASHER (16MM) This part replaces 90407-HB3-000.

90434-KR3-000

$2.94

17

WASHER (16MM)

90434-KR3-000

$2.94

18

SCREW, PAN (3X12)

93500-03012-0A

$1.49

18

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

19

SCREW, FLAT (5X14)

93600-05014-0A

$1.49

20

PIN, LOCK (10MM)

94251-10000

$1.49

21

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

22

BOLT, FLANGE (6X35)

96300-06035-00

Unavailable
