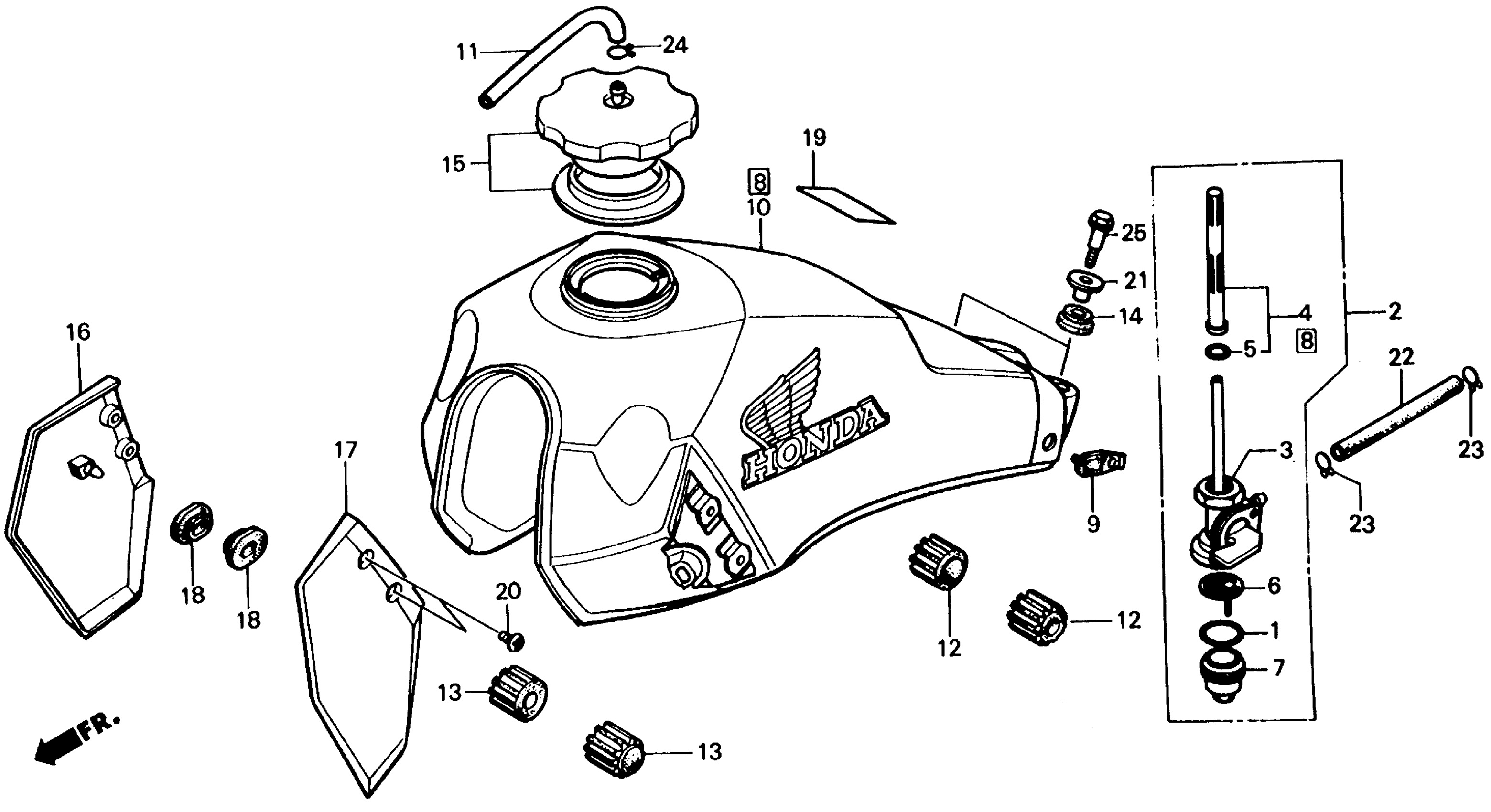

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 FUEL TANK Diagram

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

PETCOCK ASSY. This part replaces 16950-195-701.

16950-195-702

$91.67

PETCOCK ASSY.

16950-195-702

$91.67

BODY, PETCOCK (NOT AVAILABLE)

16951-195-701

Unavailable

SCREEN SET, FUEL STRAINER

16952-GB2-721

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16952-124-830.

16952-GB2-721

Unavailable

SCREEN SET, FUEL STRAINER This part replaces 16952-195-701.

16952-GB2-721

Unavailable

O-RING (9X1.3)

16958-397-771

$5.30

FILTER, CUP

16959-471-831

$9.35

CUP, FUEL STRAINER

16967-GA6-671

$23.28

RUBBER, FUEL TANK GUARD

17517-HB5-000

Unavailable

TANK SUB-ASSY., FUEL *NH138* (SHASTA WHITE) (NOT AVAILABLE)

17520-HB5-305ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-HB5-670

$9.35

RUBBER, FR. FUEL TANK

17611-HA5-000

$5.21

RUBBER, FR. FUEL TANK

17611-HA5-000

$5.21

RUBBER, FR. FUEL TANK This part replaces 17611-176-000.

17611-HA5-000

$5.21

RUBBER, RR. FUEL TANK

17613-KA8-000

Unavailable

CAP, FUEL FILLER (TOYOSHA) This part replaces 17620-HA5-670.

17620-HC0-003

Unavailable

CAP, FUEL FILLER (TOYOSHA)

17620-HC0-003

Unavailable

GUIDE, R. AIR (NOT AVAILABLE)

19071-HB5-670

Unavailable

GUIDE, L. AIR (NOT AVAILABLE)

19072-HB5-670

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

LABEL, USE CAUTION (NOT AVAILABLE)

87504-HB5-670

Unavailable

SCREW, PAN (5X8)

90101-965-000

Unavailable

COLLAR, FUEL TANK MOUNTING

90503-HB5-000

Unavailable

BULK HOSE, FUEL (4.5X3000) (4.5X80)

95001-45003-60M

$36.67

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
