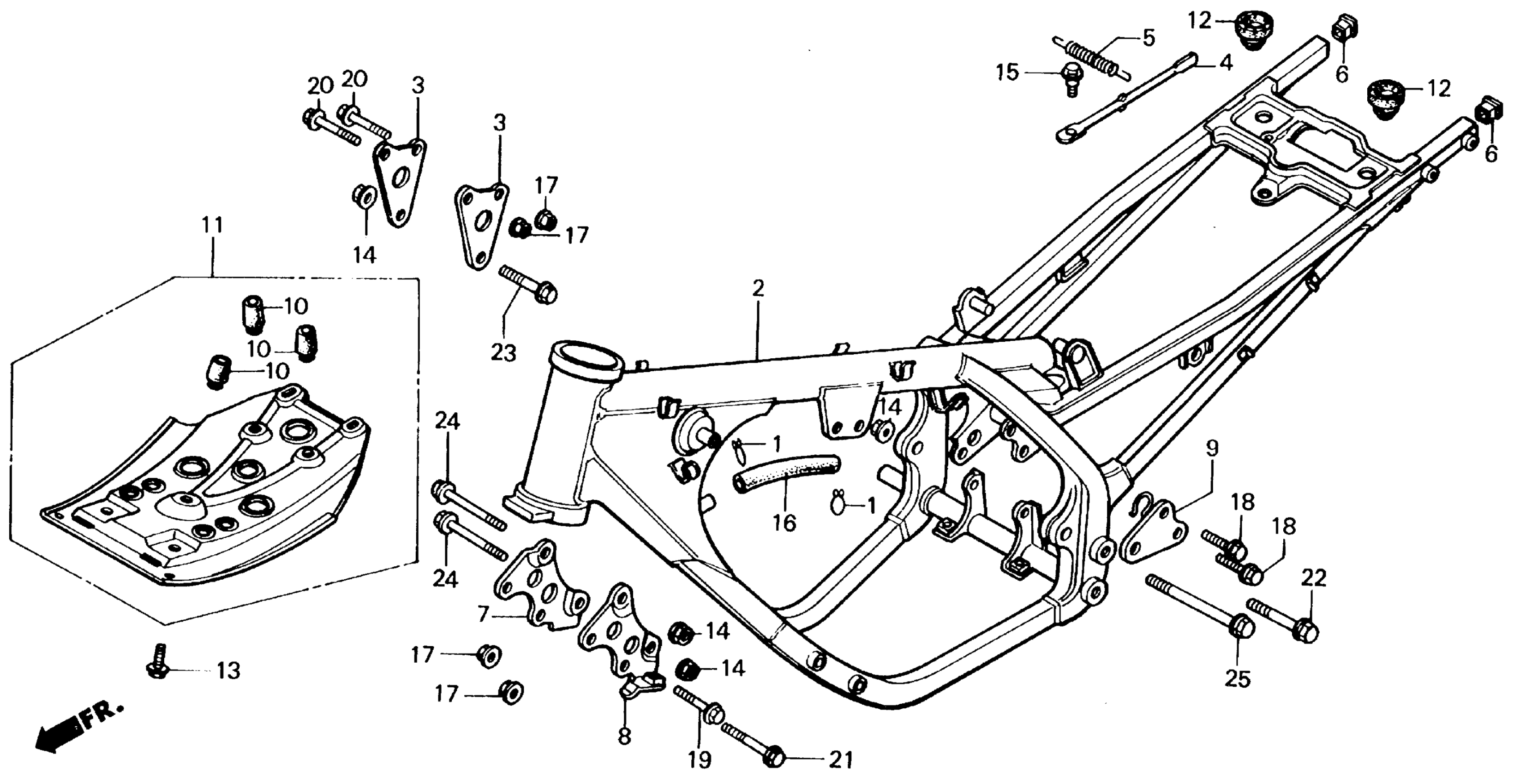

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 FRAME Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

17316-611-000

$9.23

2

FRAME

50100-HB5-670

Unavailable

3

PLATE, ENGINE HANGER (UPPER)

50136-HB5-000

Unavailable

4

LEVER, SEAT LOCK

50221-HA2-000

Unavailable

5

SPRING, LEVER SETTING

50222-HB5-000

Unavailable

6

CAP, TOP PIPE

50328-HB5-000

Unavailable

7

HANGER, R. FR. ENGINE

50351-HB5-010

Unavailable

8

HANGER, L. FR. ENGINE

50352-HB5-010

Unavailable

9

PLATE, RR. ENGINE HANGER (UPPER)

50354-HB5-670

Unavailable

10

RUBBER A, STOPPER

50352-428-000

$2.75

11

GUARD, ENGINE (NOT AVAILABLE)

50360-HB5-670

Unavailable

12

RUBBER, SEAT SETTING

77207-HA0-000

$7.14

13

BOLT, FLANGE (8X16) This part replaces 90115-HA2-670.

90123-KV0-000

$4.51

13

BOLT, FLANGE (8X16)

90123-KV0-000

$4.51

14

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

14

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

14

NUT, FLANGE (10MM)

94050-10000

$1.59

15

BOLT, FLANGE (6MM)

90303-HB5-000

Unavailable

16

TUBE, BREATHER

90851-HB5-670

Unavailable

17

NUT, FLANGE (8MM)

94050-08000

$1.49

18

BOLT, FLANGE (8X14)

96300-08014-00

$1.80

18

BOLT, FLANGE (8X14) This part replaces 96400-08014-00.

96300-08014-00

$1.80

19

BOLT, FLANGE (8X50)

95801-08050-00

$2.98

19

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.98

20

BOLT, FLANGE (8X60)

96400-08060-00

Unavailable

21

BOLT, FLANGE (8X65)

96400-08065-00

$2.25

22

BOLT, FLANGE (10X55)

96400-10055-00

$2.49

23

BOLT, FLANGE (10X60)

96400-10060-00

$2.49

24

BOLT, FLANGE (10X85)

96400-10085-00

Unavailable

25

BOLT, FLANGE (10X100)

96400-10100-00

$4.18
