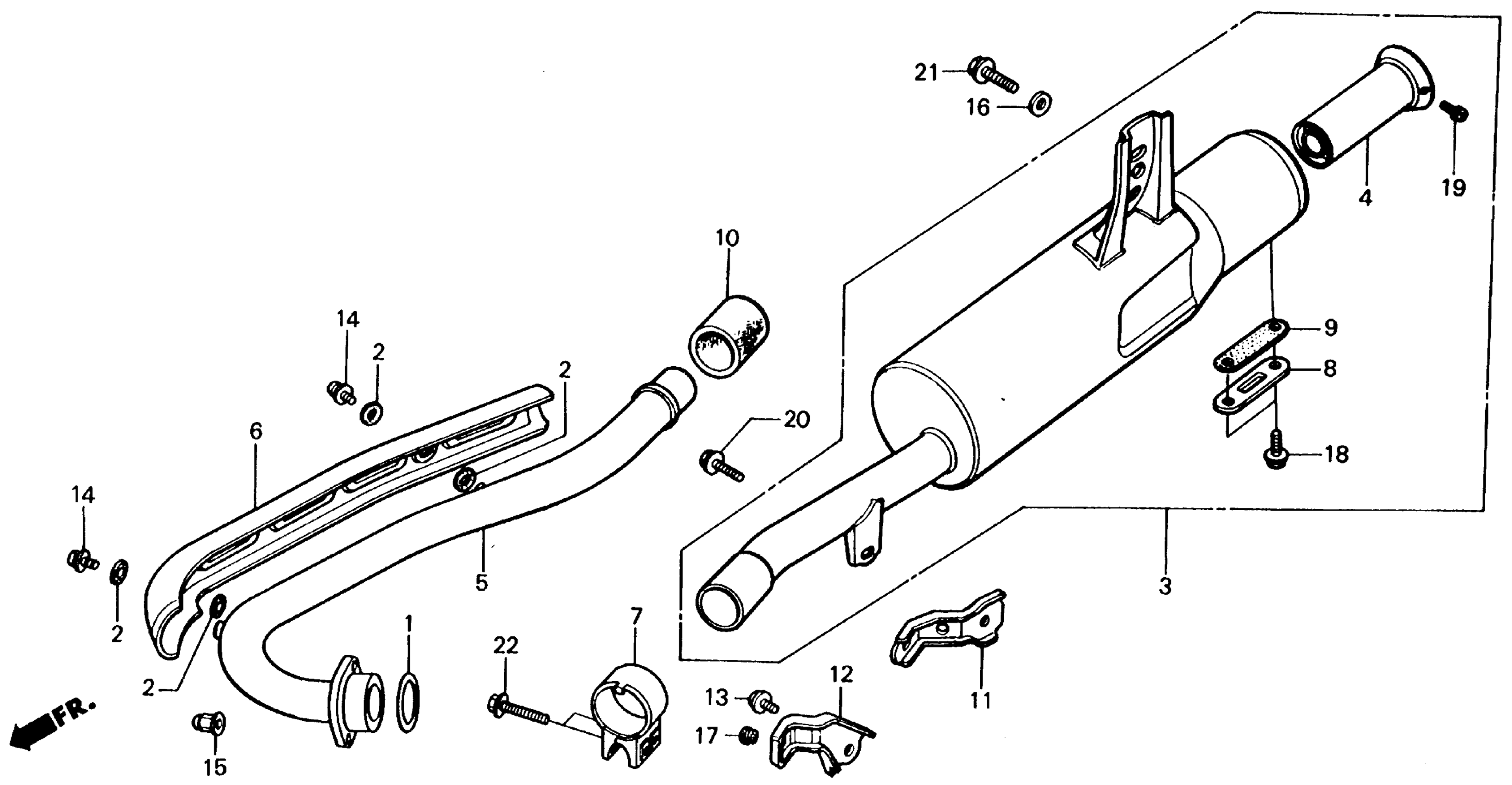

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 EXHAUST MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN5-650

$3.77

1

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

2

GASKET, PROTECTOR

18293-MCA-780

$4.85

2

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

2

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

3

MUFFLER This part replaces 18310-HB5-670.

18310-HB5-671

Unavailable

3

MUFFLER

18310-HB5-671

Unavailable

4

PIPE, TAIL

18311-MA0-010

$67.11

5

PIPE, EX.

18320-HB5-000

Unavailable

6

PROTECTOR, EX. PIPE

18321-HB5-000

Unavailable

7

BAND, MUFFLER

18371-VM5-000

$21.91

8

LID, MUFFLER

18373-429-010

$9.15

9

GASKET, MUFFLER LID

18374-MN1-880

$4.21

9

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

10

GASKET, MUFFLER

18391-958-306

$18.93

10

GASKET, MUFFLER This part replaces 18391-958-681.

18391-958-306

$18.93

12

STAY, RR. FENDER

80122-HB5-670

Unavailable

13

BOLT, CHECK (8MM)

90035-GF4-000

$7.16

14

SCREW-WASHER (6X10)

90110-HA0-000

Unavailable

15

NUT (6X15)

90282-329-000

$4.67

16

WASHER (10MM)

90410-HC4-000

$3.81

16

WASHER (10MM) This part replaces 90410-KN5-670.

90410-HC4-000

$3.81

17

PLUG, HOLE

90851-SA6-000

$5.63

18

BOLT-WASHER (6X12)

93401-06012-07

$1.62

18

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

18

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

19

SCREW-WASHER (6X12)

93891-06012-07

$1.49

20

BOLT, FLANGE (10X16)

96300-10016-00

Unavailable

21

BOLT, FLANGE (10X25)

96300-10025-00

$2.39

22

BOLT, FLANGE (8X32)

96300-08032-00

$1.62

22

BOLT, FLANGE (8X32) This part replaces 96500-08032-00.

96300-08032-00

$1.62
