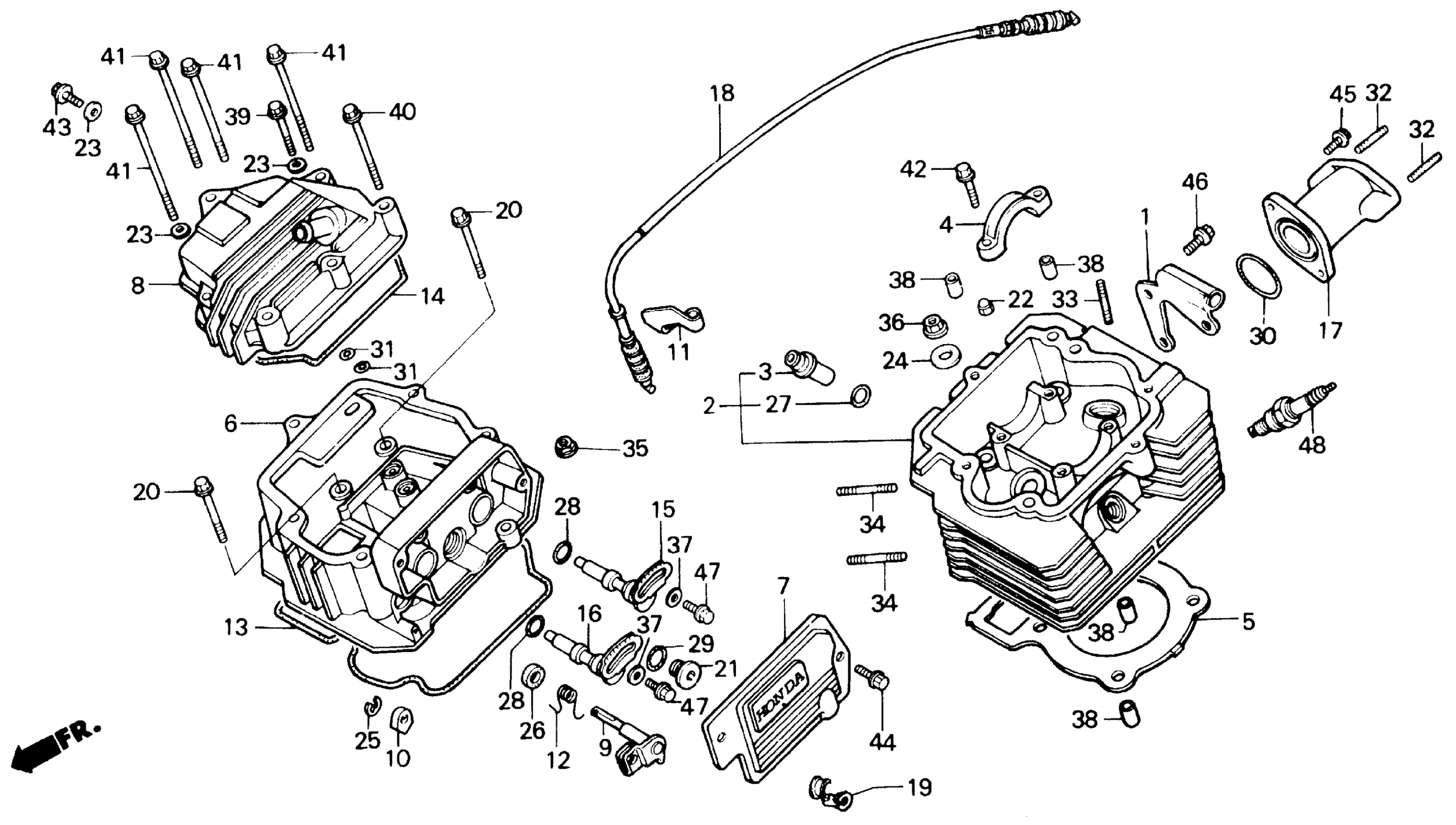

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 CYLINDER HEAD Diagram

#

Description
Price

1

PLATE, CYLINDER HEAD HANGER

11851-HB5-000

Unavailable

2

CYLINDER HEAD (NOT AVAILABLE)

12200-HB3-000

Unavailable

3

GUIDE, VALVE

12204-HB3-300

Unavailable

3

GUIDE, VALVE This part replaces 12204-HB3-305.

12204-HB3-300

Unavailable

4

HOLDER, CAM

12211-HB3-000

Unavailable

5

GASKET, CYLINDER HEAD

12251-HB3-003

$20.70

5

GASKET, CYLINDER HEAD (OS 0.75-1.00) | (Optional).

12252-HB3-305

Unavailable

6

COVER, CYLINDER (NOT AVAILABLE)

12310-HB3-000

Unavailable

7

COVER, TAPPET ADJUSTING HOLE (NOT AVAILABLE)

12311-HB3-000

Unavailable

8

COVER, BREATHER (NOT AVAILABLE)

12315-HB3-000

Unavailable

9

LIFTER, VALVE

12320-HB5-010

Unavailable

10

CAM, VALVE LIFTER

12325-HB3-003

Unavailable

11

STAY, CABLE HOLDER

12327-HB5-000

Unavailable

12

SPRING, CAM DECOMPRESSION

12352-HB5-000

Unavailable

13

GASKET, HEAD COVER (NOT AVAILABLE) This part replaces 12391-HB3-000.

12391-HB3-004

$8.76

13

GASKET, HEAD COVER (NOT AVAILABLE) This part replaces 12391-HB3-003.

12391-HB3-004

$8.76

13

GASKET, HEAD COVER

12391-HB3-004

$8.76

13

GASKET, HEAD COVER (NOT AVAILABLE) This part replaces 12391-HB3-013.

12391-HB3-004

$8.76

14

GASKET, BREATHER COVER

12396-HB3-003

Unavailable

15

SHAFT, ROCKER ARM IN.

14450-HB3-010

Unavailable

16

SHAFT, ROCKER ARM EX.

14460-HB3-010

Unavailable

17

INSULATOR, CARBURETOR

16210-HB5-000

Unavailable

18

CABLE, DECOMPRESSION (NOT AVAILABLE)

28291-HB5-003

Unavailable

19

CLIP, IGNITION WIRE

32925-HB5-000

Unavailable

20

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

20

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

21

CAP (14MM) This part replaces 90084-HB3-000.

90084-MN8-010

$12.82

21

CAP (14MM) This part replaces 90084-HB5-000.

90084-MN8-010

$12.82

21

CAP (14MM)

90084-MN8-010

$12.82

22

NUT, FLANGE CAP (6MM)

90301-MA6-003

$2.33

23

WASHER, SEALING (6MM)

90441-706-000

$1.49

24

WASHER (8MM)

90465-MC4-000

$2.51

25

CIRCLIP (OUTER) (6MM) (NOT AVAILABLE)

90602-KA4-741

$2.89

26

OIL SEAL (8X15X6)

91203-HB3-004

Unavailable

27

O-RING (10X1.6)

91301-200-000

$3.01

28

O-RING (9.8X1.9) This part replaces 91301-812-000.

91305-PE2-003

$2.45

28

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.45

28

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.45

28

O-RING (9.8X1.9) This part replaces 91303-HB3-003.

91305-PE2-003

$2.45

28

O-RING (9.8X1.9) This part replaces 91303-729-720.

91305-PE2-003

$2.45

28

O-RING (9.8X1.9) This part replaces 91303-729-721.

91305-PE2-003

$2.45

28

O-RING (9.8X1.9)

91305-PE2-003

$2.45

29

O-RING (13.8X2.5)

91303-377-000

$3.42

30

O-RING (33.5X3.0)

91304-HB3-003

$7.70

31

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.61

32

BOLT, STUD (6X28)

92712-06028-0B

$1.49

33

BOLT 2, STUD (6X20)

92900-06020-0B

$1.72

34

BOLT 2, STUD (6X20)

92900-06020-3B

Unavailable

35

NUT, FLANGE (6MM)

94050-06000

$1.49

36

NUT, FLANGE (8MM)

94050-08000

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

PIN A, DOWEL (10X14)

94301-10140

$2.28

39

BOLT, FLANGE (6X40) This part replaces 95700-06040-07.

95701-06040-07

$1.80

39

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

40

BOLT, FLANGE (6X70) This part replaces 95700-06070-00.

95701-06070-00

$2.19

40

BOLT, FLANGE (6X70) This part replaces 95700-06070-07.

95701-06070-00

$2.19

40

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

40

BOLT, FLANGE (6X70) This part replaces 95701-06070-07.

95701-06070-00

$2.19

41

BOLT, FLANGE (6X80) This part replaces 95700-06080-07.

95701-06080-07

Unavailable

41

BOLT, FLANGE (6X80)

95701-06080-07

Unavailable

42

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

42

BOLT, FLANGE (6X22) This part replaces 95800-06022-08.

95701-06022-08

$1.72

42

BOLT, FLANGE (6X22) This part replaces 95801-06022-08.

95701-06022-08

$1.72

43

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

43

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

44

BOLT, FLANGE (6X14) This part replaces 96000-06014-07.

96001-06014-07

$1.49

44

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

45

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

45

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

46

BOLT, FLANGE (8X20)

96300-08020-07

$2.00

46

BOLT, FLANGE (8X20) This part replaces 96400-08020-07.

96300-08020-07

$2.00

47

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

47

BOLT, FLANGE (6X14) This part replaces 96500-06014-00.

96300-06014-00

$1.49

48

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

48

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

48

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54
