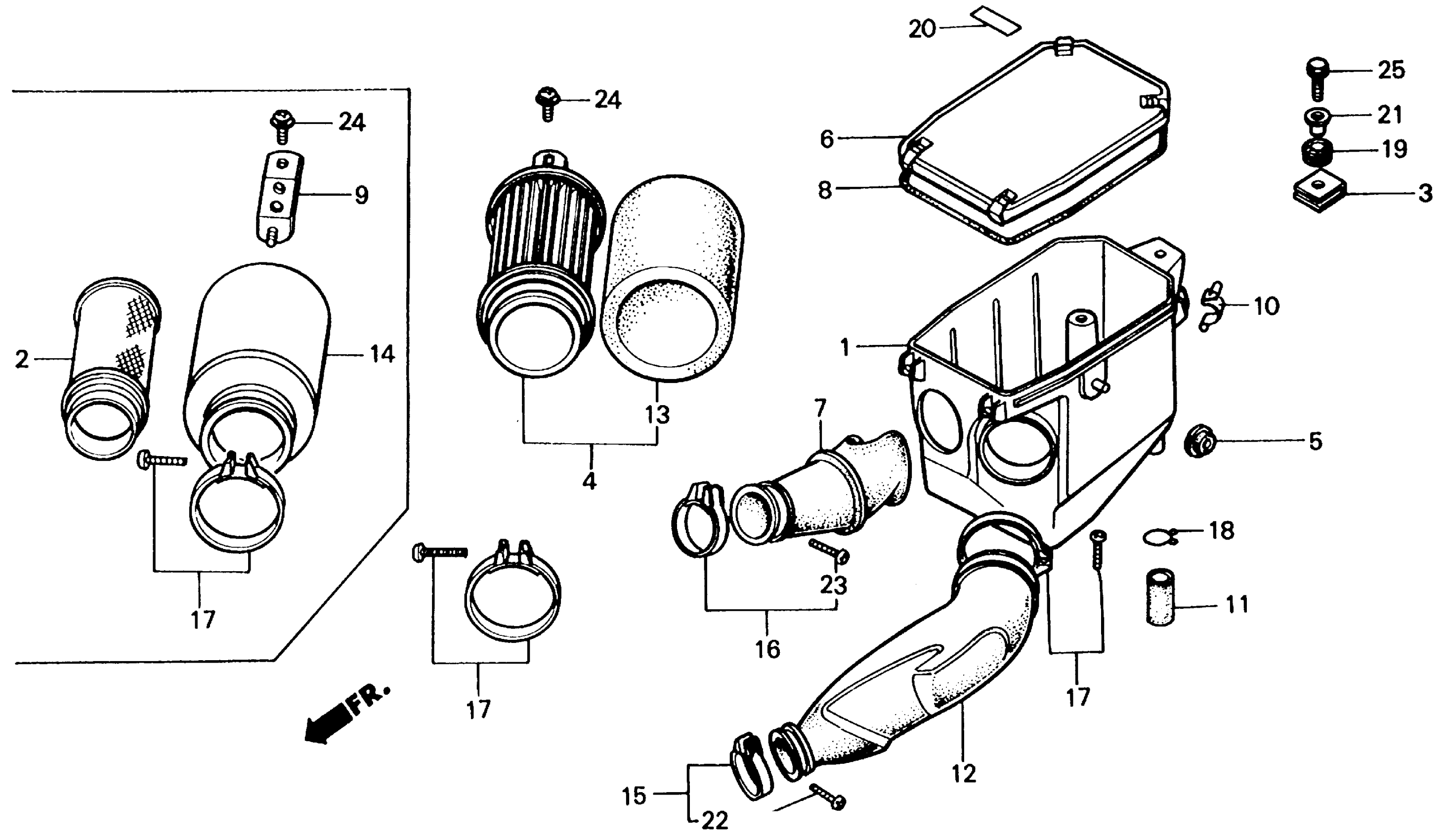

Honda ATC200XA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-HK600004 TO JH3TB052-HK603542 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17210-HB5-010

Unavailable

3

NUT, AIR CLEANER HOUSING SETTING

17212-965-000

$8.09

4

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17213-HB5-671

Unavailable

5

RUBBER, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17216-HA5-000

Unavailable

6

LID, AIR CLEANER HOUSING

17217-HB5-010

Unavailable

7

TUBE, AIR CLEANER IN.

17218-HB5-000

Unavailable

8

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-HB5-000.

17219-HA2-405

$5.96

10

SPRING, AIR CLEANER HOUSING LID

17223-HA5-670

Unavailable

11

TUBE, AIR CLEANER DRAIN This part replaces 17224-HB3-000.

17224-HM5-930

$10.85

11

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$10.85

12

TUBE, AIR CLEANER CONNECTING

17253-HB5-010

Unavailable

13

FILTER (OUTER)

17254-HB5-671

Unavailable

15

BAND, AIR CLEANER CONNECTING TUBE

17255-HB3-010

Unavailable

16

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 17255-KK0-000.

95018-50250

$7.58

16

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 90652-GHB-680.

95018-50250

$7.58

16

BAND, AIR CLEANER CONNECTING TUBE (50)

95018-50250

$7.58

17

BAND, AIR CLEANER

17257-HB5-000

$14.02

18

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

19

RUBBER, SEAT SETTING

77206-MJ0-000

$3.92

20

MARK, AIR CLEANER CAUTION

87507-HB5-670

Unavailable

21

COLLAR (6X14.8)

90501-438-000

$5.05

22

SCREW, PAN (5X28)

93500-05028-0G

$1.49

23

SCREW, PAN (5X32)

93500-05032-0G

$1.49

24

SCREW-WASHER (6X12)

93891-06012-08

$1.49

25

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

25

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
