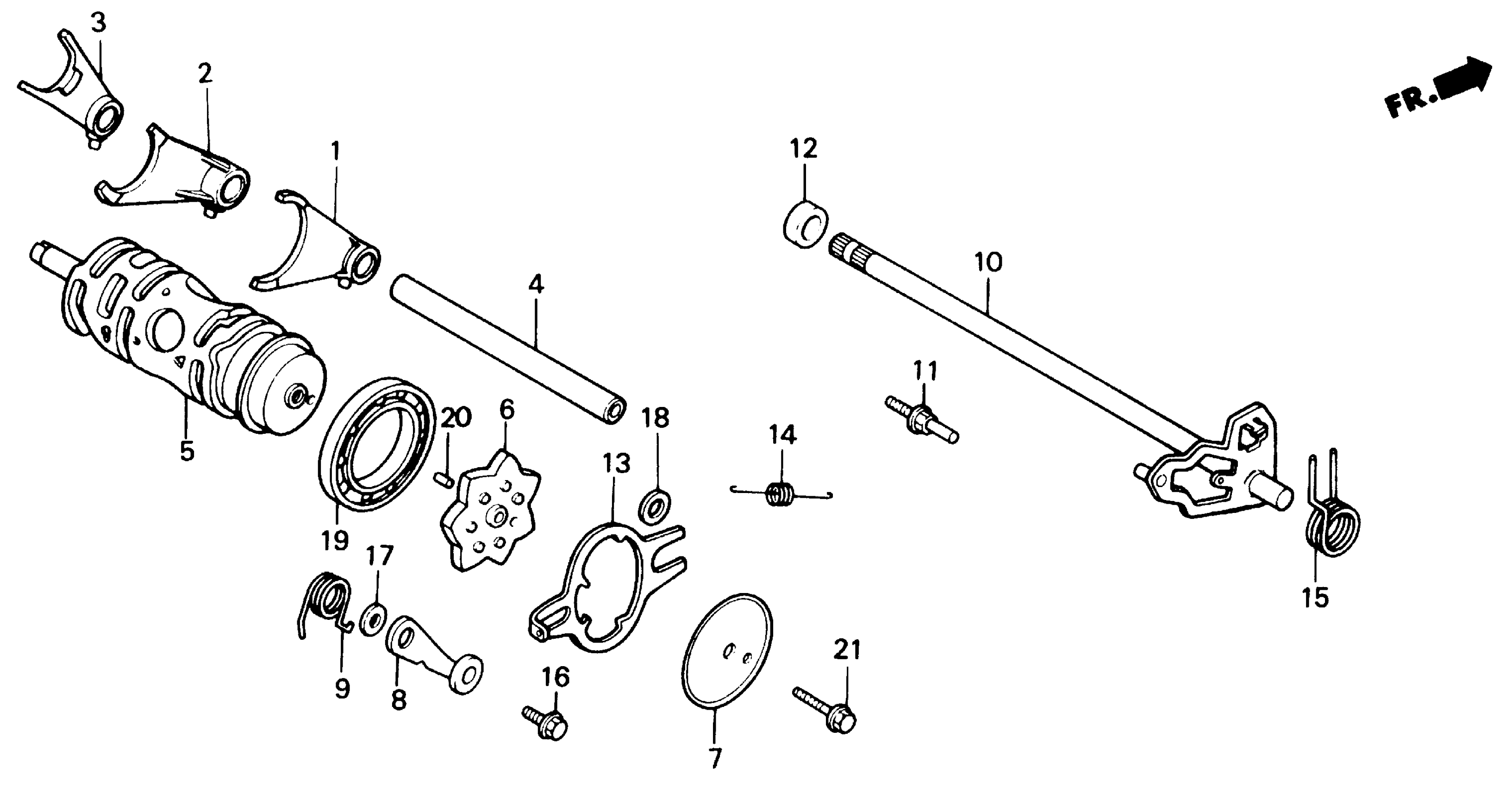

Honda ATC200XA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-GK500056 TO JH3TB052-GK519186 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HB5-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-HB5-000

Unavailable

3

FORK, L. GEARSHIFT

24213-HB5-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HA5-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-HB5-000.

24241-HA5-000

Unavailable

5

DRUM, GEARSHIFT

24301-HB5-000

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB5-000.

24321-HB5-670

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB5-010.

24321-HB5-670

Unavailable

6

SHIFTER, DRUM

24321-HB5-670

Unavailable

7

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

8

STOPPER, GEARSHIFT DRUM

24430-HB3-000

$14.26

9

SPRING, SHIFT DRUM STOPPER This part replaces 24435-HB3-004.

24435-HB3-770

$4.51

9

SPRING, SHIFT DRUM STOPPER

24435-HB3-770

$4.51

10

SPINDLE, GEARSHIFT

24610-HB5-000

Unavailable

11

PIN, RETURN SPRING (NOT AVAILABLE)

24615-KA4-000

Unavailable

12

COLLAR (12X17X5)

24630-HB5-000

Unavailable

13

PLATE, GEARSHIFT (NOT AVAILABLE)

24631-HB5-000

Unavailable

14

SPRING, SHIFT ARM

24641-HB3-004

$2.90

15

SPRING, GEARSHIFT RETURN This part replaces 24651-HB3-000.

24651-HF1-670

Unavailable

15

SPRING, GEARSHIFT RETURN This part replaces 24651-HB3-010.

24651-HF1-670

Unavailable

15

SPRING, GEARSHIFT RETURN This part replaces 24651-HB5-000.

24651-HF1-670

Unavailable

15

SPRING, GEARSHIFT RETURN

24651-HF1-670

Unavailable

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

17

WASHER, DRUM STOPPER

90417-360-000

$1.74

18

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

19

BEARING, RADIAL BALL (6906)

91002-KE8-003

Unavailable

20

ROLLER (4X13.8)

96220-40138

$1.49

21

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
