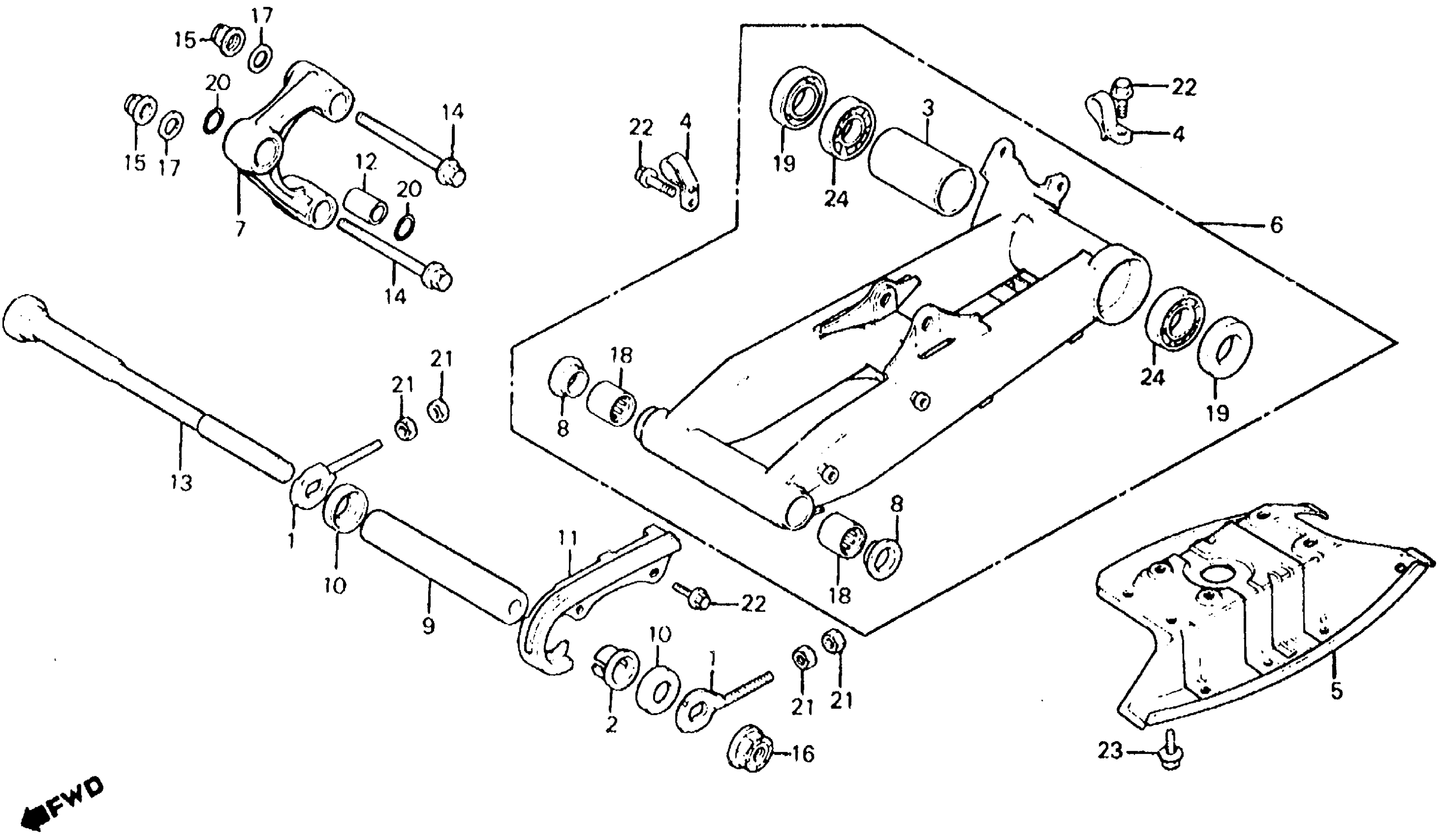

Honda ATC200XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-FK400006 TO JH3TB052-FK447345 SWINGARM + ENGINE PROTECTOR 84-85 Diagram

#

Description
Price

1

ADJUSTER, CHAIN

40543-965-000

Unavailable

2

COLLAR, SWINGARM SIDE

42340-965-010

$12.88

3

COLLAR, RR. AXLE (NOT AVAILABLE)

42621-961-000

Unavailable

4

CLAMP, BRAKE HOSE

43311-965-000

$7.61

5

PLATE, SKID (NOT AVAILABLE)

50355-965-010

Unavailable

6

SWINGARM ASSY. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 52000-965-010ZA.

52000-965-680ZA

Unavailable

6

SWINGARM ASSY. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

52000-965-680ZA

Unavailable

7

BRACKET, SWINGARM (NOT AVAILABLE)

52105-965-020

Unavailable

8

BUSH, PIVOT THRUST

52109-430-300

$16.01

9

COLLAR, SWINGARM CENTER

52141-KA2-000

Unavailable

10

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

10

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

10

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

10

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

10

CAP, DUST SEAL (NOK) This part replaces 52144-965-005.

52144-356-005

$17.31

11

SLIDER, CHAIN (NOT AVAILABLE)

52170-965-010

Unavailable

12

BUSH, SHOCK ABSORBER (LOWER) (NOT AVAILABLE) This part replaces 52451-965-000.

52451-HA5-000

Unavailable

13

BOLT, SWINGARM

90117-965-000

Unavailable

14

BOLT, FLANGE (10X78) | Use up to Frame SN EC300115 This part replaces 90122-964-000.

90155-KC1-000

Unavailable

14

BOLT, FLANGE (10X74) | Use from Frame SN EC300116

90122-965-000

Unavailable

14

BOLT, FLANGE (10X78) | Use up to Frame SN EC300115

90155-KC1-000

Unavailable

15

NUT, AXLE (10MM)

90304-GA6-003

$2.89

16

NUT, U (14MM)

90305-GE8-003

$3.86

17

WASHER, THRUST (16MM) | Use from Frame SN EC300116

90453-235-000

$1.83

18

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

19

DUST SEAL (42X62X7)

91252-958-013

$21.74

20

O-RING (19.5X1.5)

91301-965-003

Unavailable

20

O-RING (19.5X1.5) This part replaces 91301-965-004.

91301-965-003

Unavailable

21

NUT, HEX. (8MM)

94001-08000-0S

$1.49

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

22

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

23

BOLT, FLANGE (8X10) | Use from Frame SN EC300116

90116-965-000

Unavailable

23

BOLT, FLANGE (8X12) | Use up to Frame SN EC300115 This part replaces 95700-08012-00.

95701-08012-00

$1.49

23

BOLT, FLANGE (8X12) | Use up to Frame SN EC300115

95701-08012-00

$1.49

24

BEARING, RADIAL BALL (6007)

96150-60070-10

$25.42
