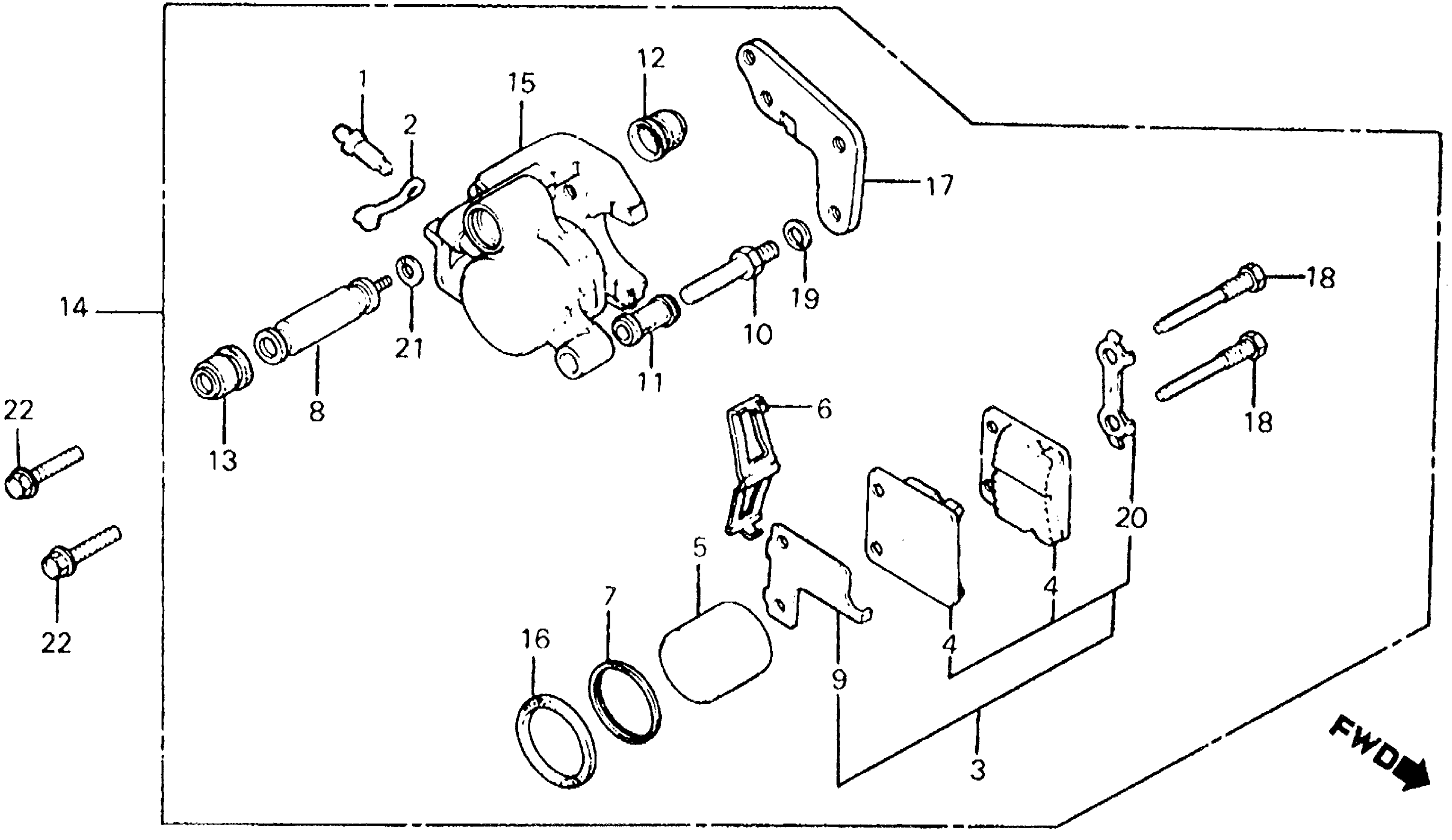

Honda ATC200XA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB052-FK400006 TO JH3TB052-FK447345 FRONT BRAKE CALIPER Diagram

SCREW, BLEEDER

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PAD SET (N/A: USE P/N 45105-961-006)

45011-965-006

$33.44

PAD (NOT AVAILABLE)

45105-961-006

Unavailable

PISTON (NISSIN)

45107-HC0-681

$74.26

PISTON (NISSIN) This part replaces 45107-961-006.

45107-HC0-681

$74.26

SPRING, PAD

45108-166-006

$7.46

DUST SEAL

45109-961-006

$5.08

PIN, SLIDE This part replaces 45115-GE3-601.

45115-GE3-602

$11.52

PIN, SLIDE

45115-GE3-602

$11.52

SHIM, R.

45116-GE3-601

$5.92

PIN, BOLT

45131-166-016

$7.63

BUSH, PIN

45132-166-016

$5.46

BOOT, PIN

45133-166-016

$3.85

DUST PLUG

45134-GE3-601

$4.48

CALIPER ASSY., FR. (NOT AVAILABLE)

45200-965-006

Unavailable

CALIPER

45201-KC6-016

Unavailable

CALIPER This part replaces 45201-965-006.

45201-KC6-016

Unavailable

SEAL, PISTON

45209-961-006

$6.20

BRACKET (NOT AVAILABLE)

45210-965-006

Unavailable

PIN, HANGER

45215-166-006

$13.51

WASHER, WAVE (NISSIN)

45216-166-006

$2.34

WASHER, TONGUED

45217-166-006

$5.33

WASHER, CONICAL SPRING

45218-166-006

$3.78

BOLT, FLANGE (8X45) This part replaces 95800-08045-07.

95801-08045-07

$2.28

BOLT, FLANGE (8X45)

95801-08045-07

$2.28
